PA12 PIPE FOR SELF-EXTINGUISHING AIR SYSTEMS

ONLINE CATALOGUE  ›  HOSES  ›  Hoses for Pneumatic Applications  ›  POLYAMIDE TUBES - RILSAN PA11 - PA12



Download sheet in pdf format

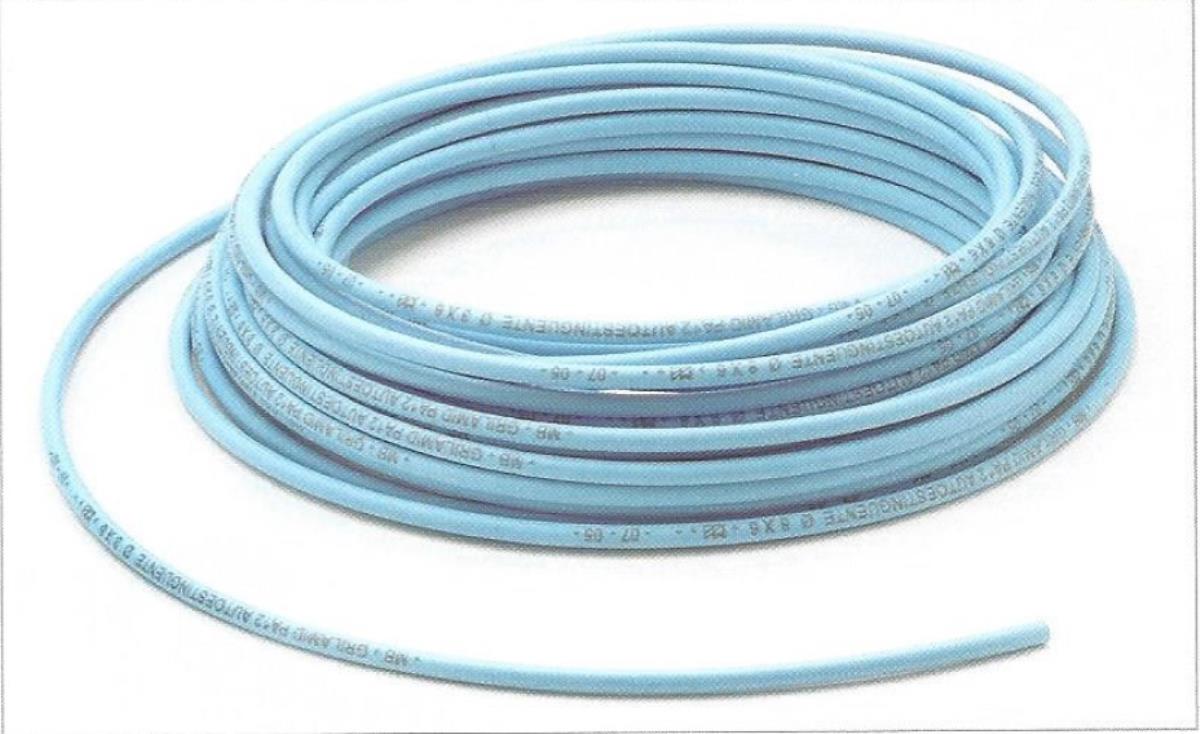

Flexible linear tube in POLYAMIDE PA 12 of chemical origin, SELF-EXTINGUISHING ACCORDING TO UL94 V2 STANDARDS , halogen-free.

Industrial applications:
automation, fixed compressed air systems in factories and workshops.
Available colors: light blue
Operating temperature. -30°C to +70°C

Upon request, available in 100 meter rolls or 4 meter bars.

Packaging: standard polyethylene film or cardboard box or wooden spools.

TABLE OF PRESSURES AS A FUNCTION OF TEMPERATURES: 20° 30° 40° 50° 60°

CODE Diameter
 internal-external
mm		 Radius of
curvature
mm		 Pressure of
exercise
Cafe		 Pressure of
explosion
Cafe
03PA11AU02,7/06 2.7x4 25 28 85
03PA11AU04/06 4x6 35 29 88
03PA11AU06/08 6x8 40 21 63
03PA11AU08/10 8x10 60 16 49
03PA11AU10/12 10x12 85 13 40
03PA11AU12/15 12x15 90 16 49
03PA11AU12.5/15 12.5x15 100 13 40
03PA11AU15/18 15x18 140 13 40
03PA11AU18/22 18x22 200 15 44
03PA11AU20/24 12x15 300 13 40
03PA11AU24/28 24x28 350 11 34
03PA11AU25/30 25x30 400 13 40
03PA11AU34/40 34x40 500 12 36
RILSAN PA12 IN 3/4 meter BARS
