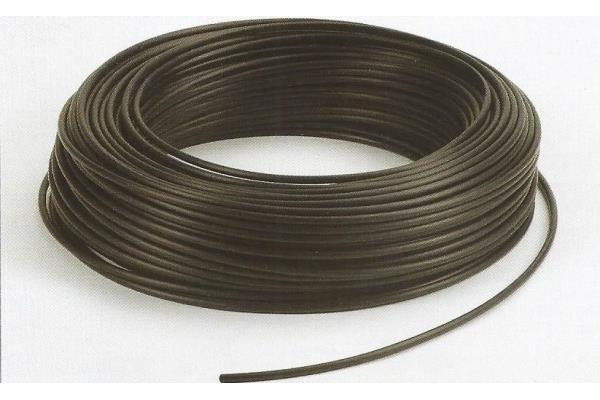

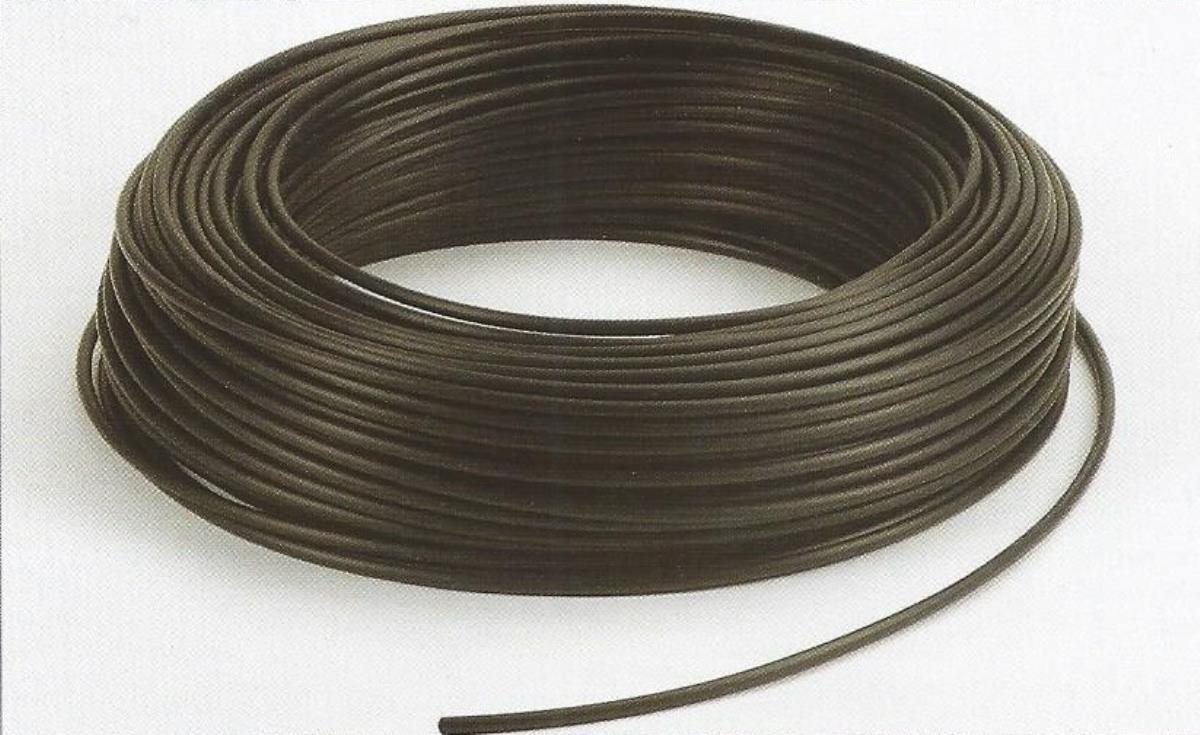

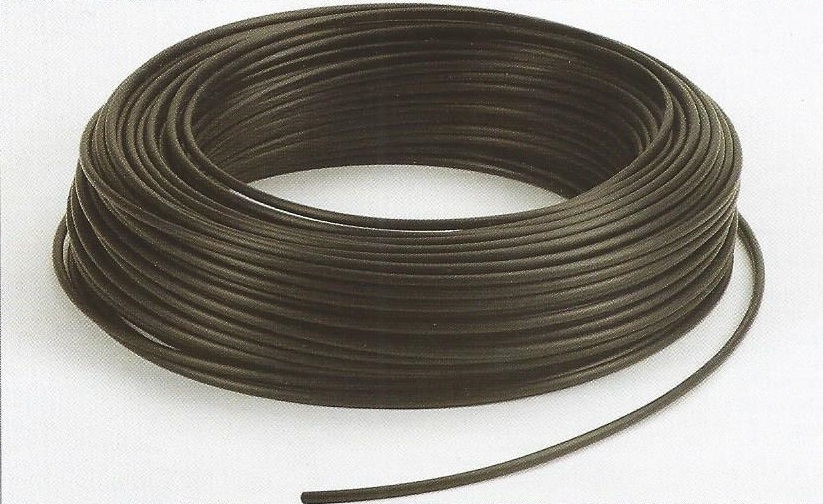

PA12 PHLY BRAKE AIR HOSE


Download sheet in pdf format
semi-flexible Polyamide 12 tube of PHLY chemical origin: plasticized, stabilized to temperature and light with high burst pressure and impact resistance at low temperatures. Raw material made to meet the DIN 73378/74324 standard.

APPLICATIONS:
Industrial automation; Empty; Chemical resistance; Low permeability; Disinfestation lines; Transfer of petroleum derivatives; Clutch system; Trailer/trailer brake system; Resistance to hydrolysis.
TEMPERATURE varying from -40°C to 80°C.
Colors: BLUE, YELLOW, NEUTRAL, RED
Packaging: IN ROLLS OF 100 METERS OR IN CARDBOARD BOXES OF 25-50 METERS
CODE Ø internal

mm		 Ø ext.

mm		 Wall thickness

mm		 Weight

g/m		 Minimum radius
of curvature
mm		 WP

Cafe		 BP

Cafe
12PHLY4X6 6 4 1 16.4 30 108 36
12PHLY6X8 8 6 1 22.8 55 77 25
12PHLY6X9 9 6 1.5 36.7 45 108 36
12PHLY6X10 10 6 2 52.2 40 135 45
12PHLY7X10 10 7 1.5 41.6 55 95 31
12PHLY7.5X10 10 7.5 1.25 35.7 65 77 25
12PHLY8X10 10 8 1 29.4 85 60 20
12PHLY9X12 12 9 1.5 51.4 80 77 25
12PHLY10X14 14 10 2 78.4 80 90 30
12PHLY11X15 15 11 2 84.9 90 83 27
12PHLY12X15 15 12 1.5 66.1 125 60 20
12PHLY12X16 16 12 2 91.4 105 77 25
12PHLY14X18 18 14 2 104.5 135 67 22
