Code: art. 100_2 OTRC-G

art. 100_2 OTRC-G

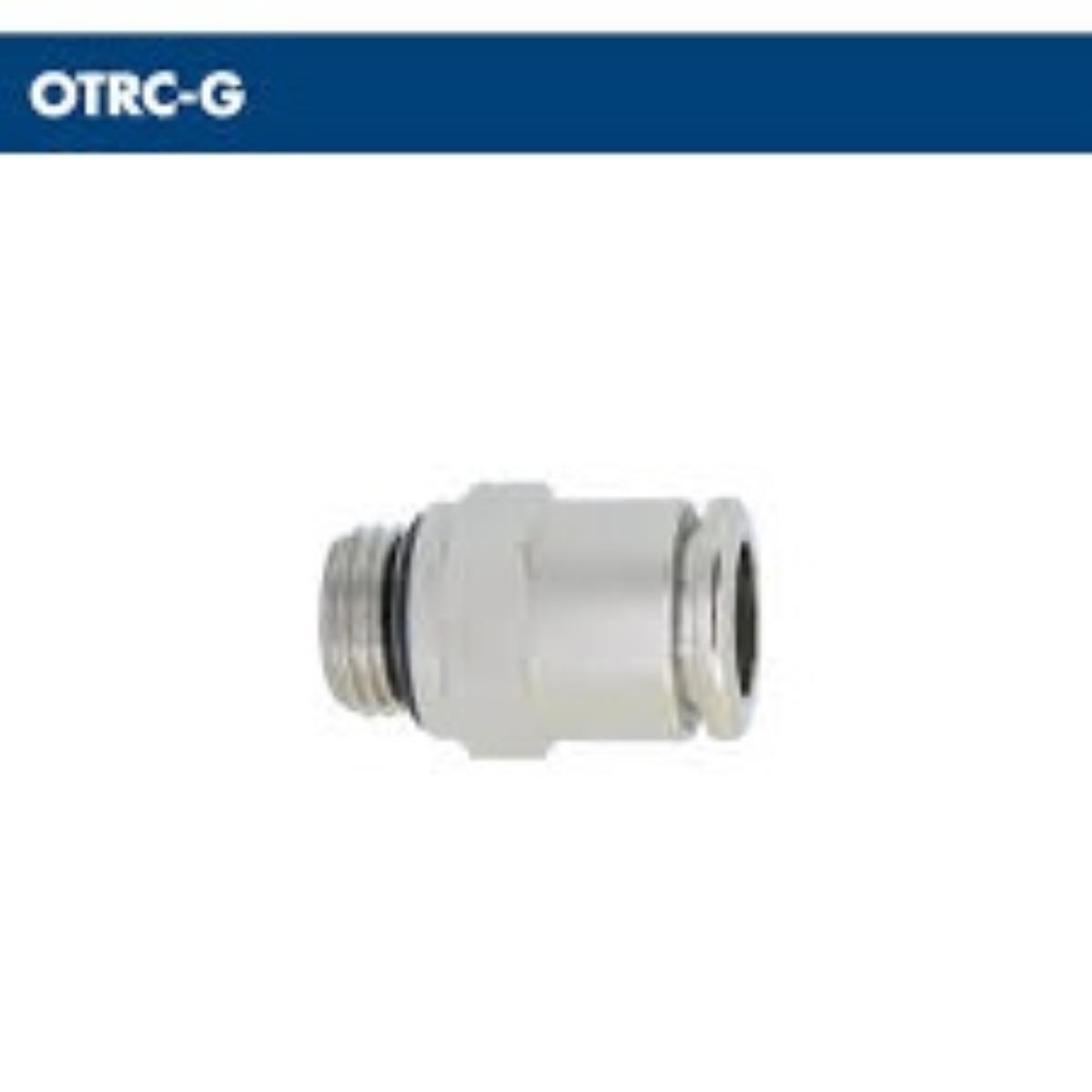

NICKEL PLATED BSPP CYLINDRICAL MALE STRAIGHT

Operating Temperature: -20 ēC to 80 ēC
Construction Materials: Nickel-plated brass UNI EN 12164 CW 614N and UNI EN 12165 CW 617N
Usable tubes: Polyamide tube ˇ Polyethylene tube ˇ Polyurethane tube Oring types: NBR without silicone
Compatible Fluids: Air ˇ Compressed Air ˇ Vacuum ˇ Operating Pressure: 16 Bar
Standard pack 10 pieces.
Straight male cylindrical BSPP & metric nickel plated - Tierre Fittings
CODE Tube fillet steak Length Key WEIGHT
mm conical mm gr.
OTRC04M5 4 M5x0.8 19 9 5
OTRC04G01 4 G1/8" 18.0 10 8
OTRC04G02 4 G1/4" 18.0 10 11
OTRC06M5 6 M5x0.8 21.0 11 8
OTRC06G01 6 G1/8" 19.5 12 9
OTRC06G02 6 G1/4" 19.5 12 12
OTRC08G01 8 G1/8" 24.5 14 14
OTRC08G02 8 G1/4" 21.5 14 13.5
OTRC08G03 8 G3/8" 21.5 14 20
OTRC10G02 10 G1/4" 27.5 16 19
OTRC10G03 10 G3/8" 25.0 16 22
OTRC10G04 10 G1/2" 25.0 16 33
OTRC12G02 12 G1/4" 30.0 19 28
OTRC12G03 12 G3/8" 29.5 19 30
OTRC12G04 12 G1/2" 28.0 19 37
