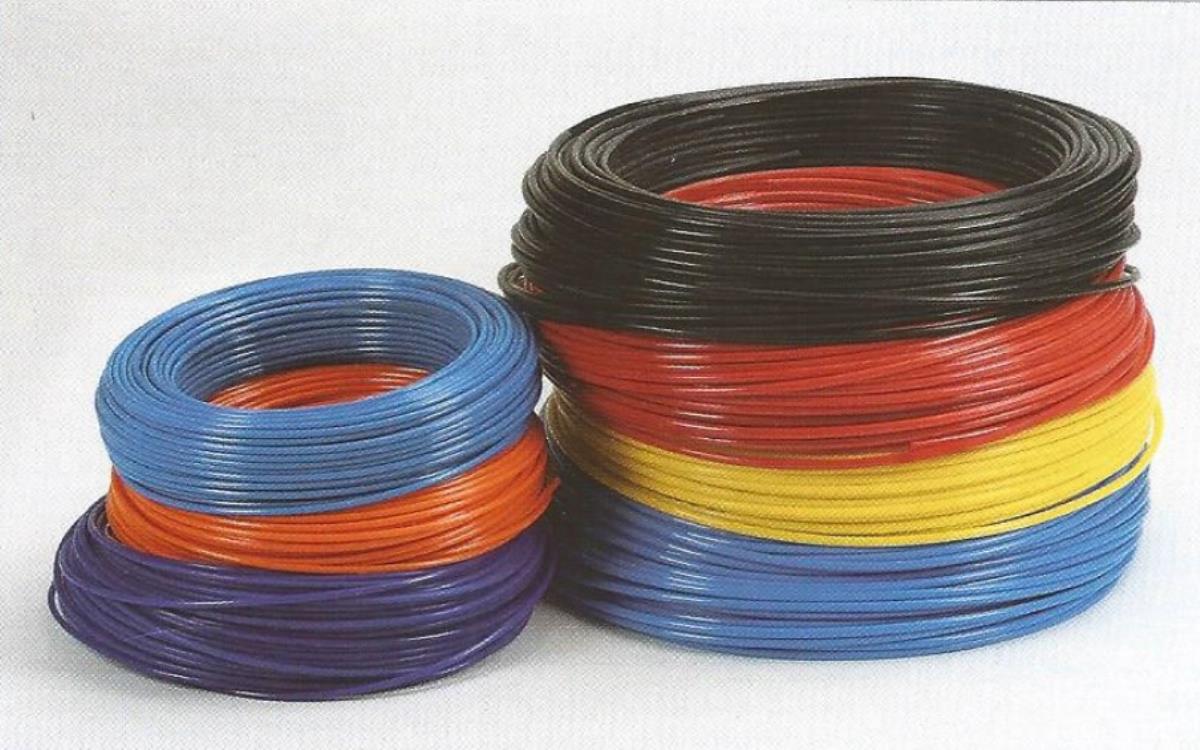

20° | 40° | 60° | 80° |
100% | 85% | 60% | 40% |
Item number | OR mm | Curvature radius mm | Bar operating pressure | Burst pressure bar |
---|---|---|---|---|
03PA110002/04 | 2x4 | 20 | 44 | 133 |
03PA1102,5/04 | 2.5x4 | 25 | 31 | ninety two |
03PA1102,7/04 | 2.7x4 | 25 | 26 | 78 |
03PA110004/06 | 4x6 | 30 | 27 | 80 |
03PA110005/08 | 5x8 | 40 | 31 | ninety two |
03PA110006/08 | 6x8 | 40 | 19 | 57 |
03PA110006/10 | 6x10 | 55 | 33 | 100 |
03PA110007/10 | 7x10 | 55 | 24 | 71 |
03PA1107,5/10 | 7.5x10 | 60 | 19 | 57 |
03PA110008/10 | 8x10 | 60 | 15 | 44 |
03PA110009/12 | 9x12 | 60 | 19 | 57 |
03PA110010/12 | 10/12 | 85 | 12 | 36 |
03PA110010/14 | 10x14 | 75 | 22 | 67 |
03PA110011/14 | 11x14 | 85 | 16 | 48 |
03PA110011/15 | 11x15 | 85 | 21 | 62 |
03PA110012/15 | 12x15 | 90 | 15 | 44 |
03PA110012/16 | 12x16 | 95 | 19 | 57 |
03PA110014/18 | 14x18 | 100 | 17 | 50 |
