METAL PVC PIPE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

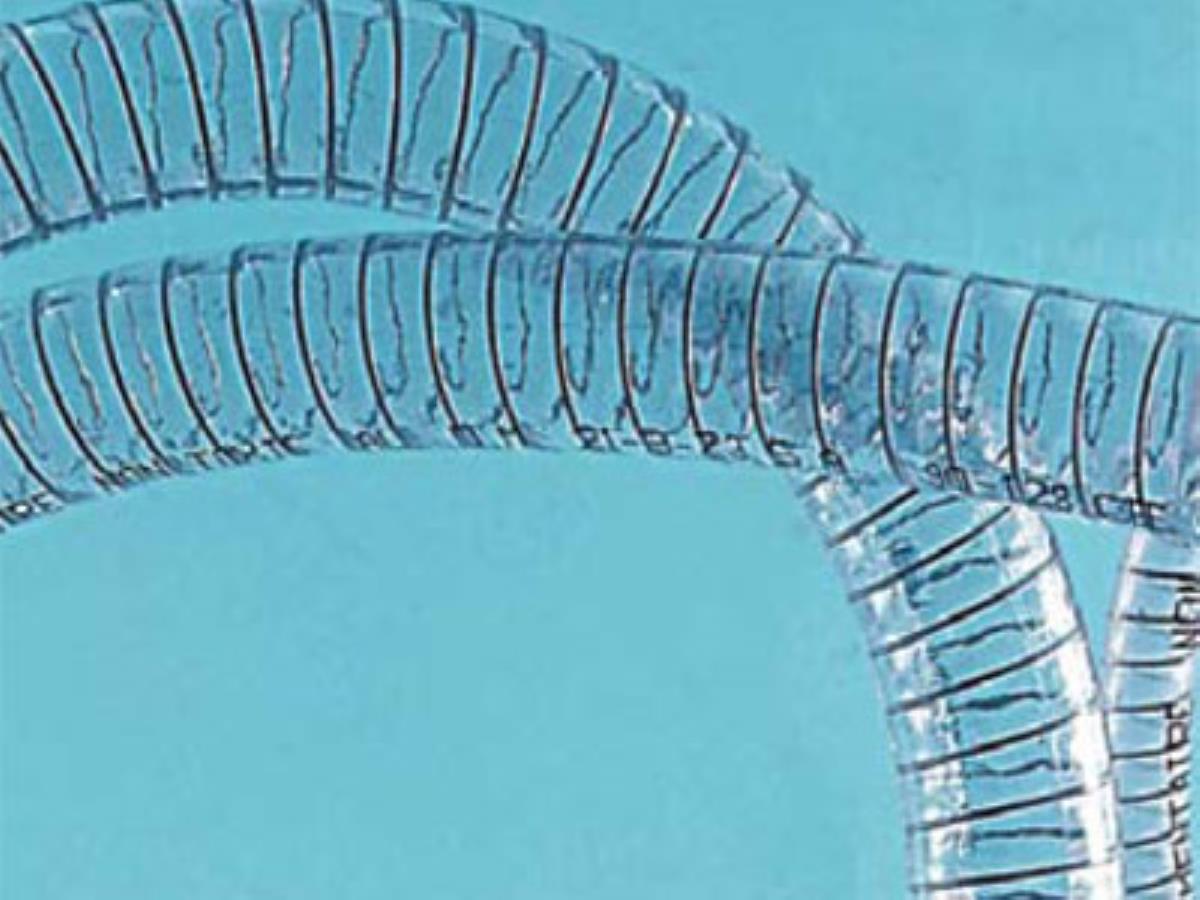

TRANSPARENT PVC flexible hose with harmonic steel reinforcement spiral.
Smooth internal and external surface. Resistant to the action of atmospheric agents and most chemical products. Excellent resistance in suction and delivery.
Non-toxic hose suitable for contact with food according to directive 2007/18 EC simulants ABCD1 and subsequent amendments
Operating temperature from -15°C to +65°C
Applications: delivery and suction of water, industrial liquids, chemical and agricultural products, compatible food substances.
Smooth internal and external surface. Resistant to the action of atmospheric agents and most chemical products. Excellent resistance in suction and delivery.
Non-toxic hose suitable for contact with food according to directive 2007/18 EC simulants ABCD1 and subsequent amendments
Operating temperature from -15°C to +65°C
Applications: delivery and suction of water, industrial liquids, chemical and agricultural products, compatible food substances.
| Code | Dimension mm |
Weight g/m |
radius curvature mm |
Pressure at T 20°C Bar |
empty mH 2 O |
Rot. m |
|---|---|---|---|---|---|---|
| 05METALPVC010 | 10x16 | 160 | 20 | 8 | 9 | 60 |
| 05METALPVC012 | 12x18 | 180 | 25 | 8 | 9 | 60 |
| 05METALPVC014 | 14x20 | 230 | 30 | 8 | 9 | 60 |
| 05METALPVC016 | 16x22 | 270 | 35 | 8 | 9 | 60 |
| 05METALPVC018 | 18x24 | 300 | 40 | 7 | 9 | 60 |
| 05METALPVC020 | 20x27 | 340 | 50 | 7 | 9 | 60 |
| 05METALPVC022 | 22x29 | 380 | 55 | 6 | 9 | 60 |
| 05METALPVC025 | 25x33 | 500 | 60 | 6 | 9 | 60 |
| 05METALPVC030 | 30x38 | 600 | 70 | 5 | 9 | 60 |
| 05METALPVC032 | 32x41 | 650 | 75 | 5 | 9 | 60 |
| 05METALPVC035 | 35x44 | 750 | 80 | 5 | 9 | 60 |
| 05METALPVC038 | 38x47 | 800 | 90 | 4.5 | 9 | 30 |
| 05METALPVC040 | 40x49 | 930 | 95 | 4.5 | 9 | 30 |
| 05METALPVC045 | 45x55 | 1150 | 110 | 4.5 | 8.5 | 30 |
| 05METALPVC050 | 50x60 | 1450 | 125 | 4 | 8.5 | 30 |
| 05METALPVC060 | 60x72 | 1800 | 140 | 4 | 8.5 | 30 |
| 05METALPVC063 | 63x75 | 1880 | 150 | 4 | 8.5 | 30 |
| 05METALPVC070 | 70x83 | 2100 | 180 | 3.5 | 8.5 | 30 |
| 05METALPVC076 | 75x85 | 2300 | 200 | 3.5 | 8.5 | 30 |
| 05METALPVC080 | 80x94 | 2500 | 220 | 3 | 8.5 | 30 |
| 05METALPVC090 | 90x103 | 2900 | 260 | 3 | 8.5 | 30 |
| 05METALPVC102 | 102x115 | 3700 | 310 | 3 | 8.5 | 30 |
| 05METALPVC125 | 125x144 | 4700 | 385 | 2 | 6 | 20 |
| 05METALPVC152 | 152x170 | 6350 | 460 | 2 | 6 | 20 |
