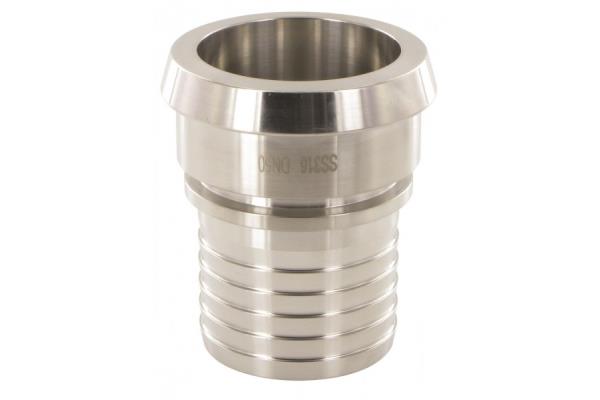

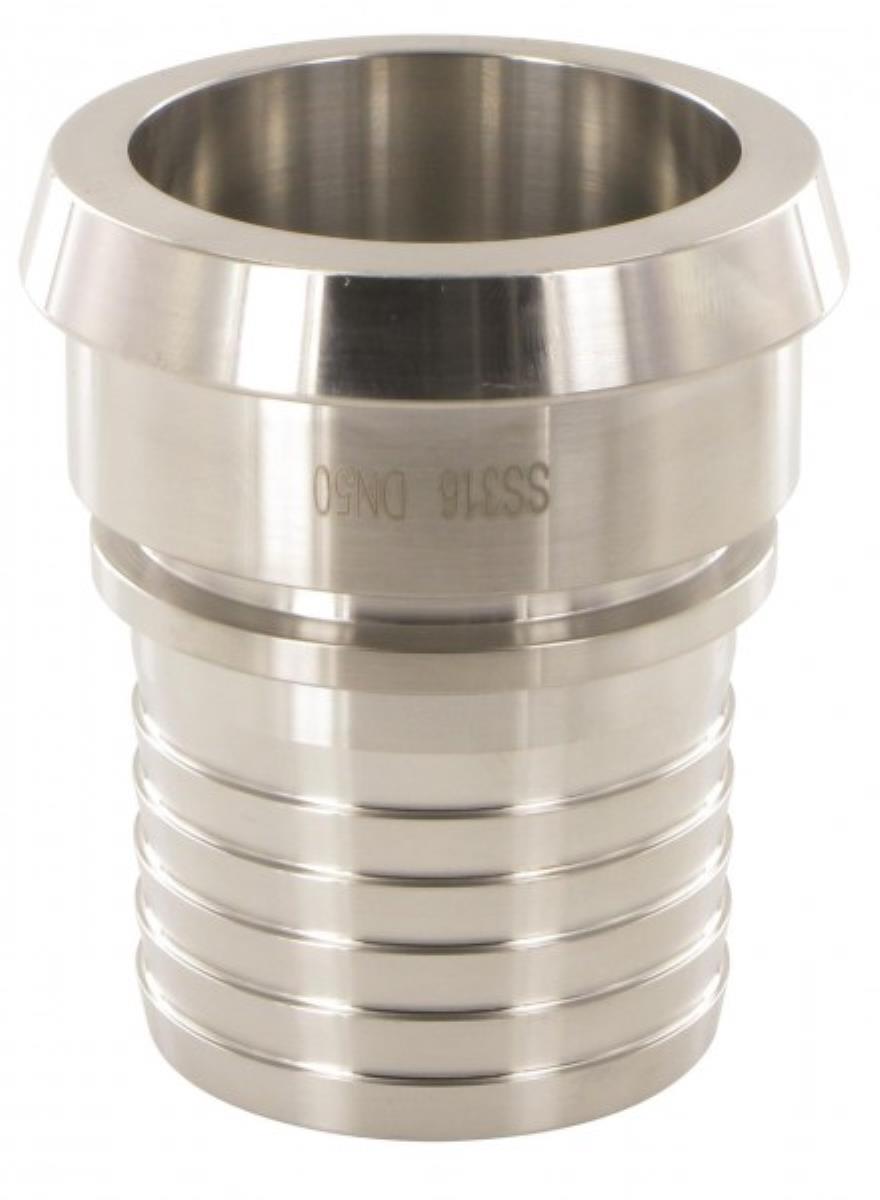

HOSE UNION FOR DIN 11851 SWIVEL
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL FITTINGS DIN 11851
Download sheet in pdf format
FOOD GRADE AISI 316 STAINLESS STEEL UNION TO BE MOUNTED WITH FEMALE SWIVEL ACCORDING TO DIN 11851 STANDARD.
HOSE HOLDER WITH SAFETY COLLAR UNDER HEAD SUITABLE FOR FIXING SPANNLOC EN 14420-3 JAWS OR PRESS BUSHINGS.
MAXIMUM WORKING PRESSURE 25 BAR
ON REQUEST ALSO SUPPLIED WITH SMOOTH SHANK
HOSE HOLDER WITH SAFETY COLLAR UNDER HEAD SUITABLE FOR FIXING SPANNLOC EN 14420-3 JAWS OR PRESS BUSHINGS.
MAXIMUM WORKING PRESSURE 25 BAR
ON REQUEST ALSO SUPPLIED WITH SMOOTH SHANK
| DIMENSION | DIAMETER HOSE HOLDER |
| DN15 | 13mm |
| DN20 | 19mm |
| DN25 | 25mm |
| DN32 | 32mm |
| DN40 | 38mm |
| DN50 | 50mm |
| DN65 | 63mm |
| DN80 | 75mm |
| DN100 | 100mm |
