ARMORVIN HNA TUBE
ONLINE CATALOGUE › HOSES › Hoses for food products
Download sheet in pdf format

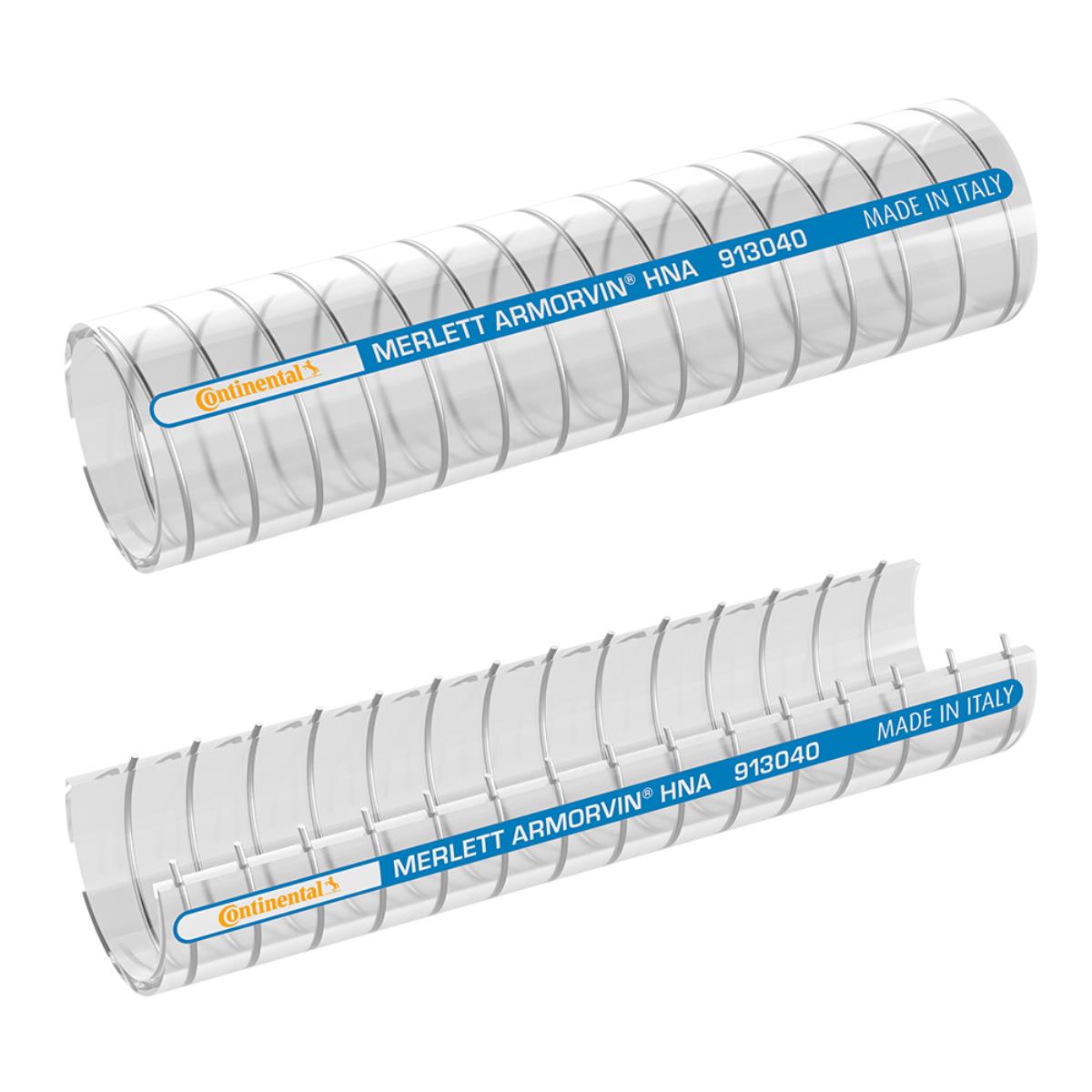

Transparent plasticized PVC tube with built-in galvanized steel spiral.
Ideal for the suction and delivery of food liquids, concentrated alcohol up to 50%,
low temperature milk and derivatives. Smooth surfaces, high flexibility,
good abrasion resistance.
WORKING TEMPERATURE: -5° +65° C
REFERENCE STANDARDS:
• Declaration of conformity - EU - Simulant D1
• Declaration of conformity - EU - Simulants A, B, C
• Declaration of conformity - FDA
• Declaration of conformity - EU - Simulants A, B, C
• Communication of presence of SVHC substances
• RoHS declaration
• “Conflict Mineral” Declaration
• “USA TSCA” statement
OR | OR | OR | empty | Operating pressure 23° | Burst pressure 23° | Curvature radius | Spiral step | Weight meter | roll |
10 | 10 | 16 | 8.5 | 7 | 21 | 20 | 6.5 | 155 | 60 |
12 | 12 | 18 | 8.5 | 7 | 21 | 25 | 7 | 180 | 60 |
14 | 14 | 20 | 8.5 | 6 | 18 | 30 | 7.5 | 200 | 60 |
16 | 16 | 22 | 8.5 | 6 | 18 | 35 | 7.5 | 225 | 60 |
18 | 18 | 24.5 | 8.5 | 6 | 18 | 40 | 8 | 280 | 60 |
19 | 19 | 26 | 8.5 | 5 | 15 | 45 | 8 | 310 | 60 |
20 | 20 | 27 | 8.5 | 5 | 15 | 50 | 8 | 340 | 60 |
22 | 22 | 29 | 8.5 | 5 | 15 | 55 | 8.5 | 360 | 60 |
25 | 25 | 33 | 8.5 | 5 | 15 | 60 | 13.5 | 510 | 60 |
30 | 30 | 39 | 8.5 | 4.5 | 13.5 | 70 | 13.5 | 600 | 60 |
32 | 32 | 41 | 8.5 | 4.5 | 13.5 | 75 | 13.5 | 650 | 60 |
35 | 35 | 44 | 8.5 | 4 | 12 | 80 | 14.5 | 730 | 60 |
38 | 38 | 47 | 8.5 | 4 | 12 | 90 | 15 | 800 | 30 |
40 | 40 | 49.5 | 8.5 | 3 | 9 | 95 | 15 | 870 | 30 |
45 | 45 | 55 | 8 | 3 | 9 | 110 | 15 | 1100 | 30 |
50 | 50 | 60 | 8 | 3 | 9 | 125 | 16 | 1200 | 30 |
55 | 55 | 66 | 8 | 3 | 9 | 130 | 16.5 | 1380 | 30 |
60 | 60 | 72 | 8 | 2.5 | 7.5 | 140 | 20 | 1800 | 30 |
63 | 63 | 75 | 8 | 2.5 | 7.5 | 150 | 20 | 1880 | 30 |
70 | 70 | 83 | 8 | 2 | 6 | 170 | 20 | 2200 | 30 |
75 | 75 | 89 | 7 | 2 | 6 | 200 | 20 | 2500 | 30 |
80 | 80 | 94 | 7 | 2 | 6 | 220 | 20 | 2700 | 30 |
90 | 90 | 104 | 7 | 2 | 6 | 260 | 20 | 2900 | 30 |
100 | 100 | 114 | 7 | 2 | 6 | 300 | 19 | 3250 | 30 |
