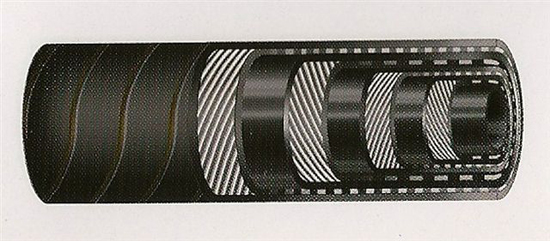

UNDERGROUND PIPE 10/18 bar - delivery
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

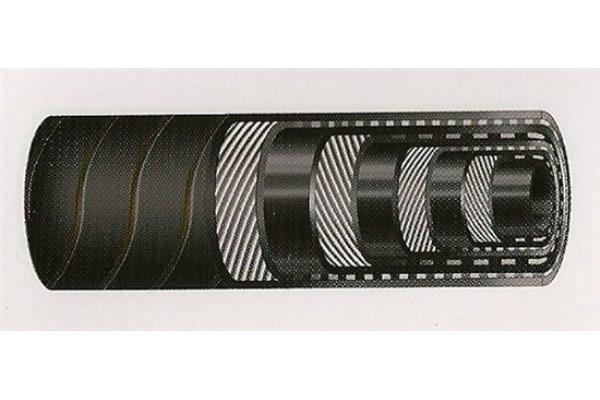

Flexible rubber hose for delivery of abrasive products under pressure.
Smooth black underlayer, anti-abrasive and anti-static SBR/NR mix with 4 high-resistance textile reinforcement fabrics. Smooth black antistatic cover with canvas impression resistant to abrasion and atmospheric agents.
Use: delivery of grout, plaster and gypsum.
Standards: abrasion losses of the underlayer according to DIN 53516 70 +/- 5 mm 3.
Operating pressure 10 bar / Maximum working pressure 18 bar.
Burst pressure 30 bar / 54 bar.
Operating temperature: -40° +70° C
Smooth black underlayer, anti-abrasive and anti-static SBR/NR mix with 4 high-resistance textile reinforcement fabrics. Smooth black antistatic cover with canvas impression resistant to abrasion and atmospheric agents.
Use: delivery of grout, plaster and gypsum.
Standards: abrasion losses of the underlayer according to DIN 53516 70 +/- 5 mm 3.
Operating pressure 10 bar / Maximum working pressure 18 bar.
Burst pressure 30 bar / 54 bar.
Operating temperature: -40° +70° C
| Dimension Ø mm | Pressure of exercise Cafe | Weight per metre Kg |
|---|---|---|
| 60x82 | 10 | 2.72 |
| 65x85 | 10 | 2.80 |
| 60x82 | 18 | 2.72 |
| 65x85 | 18 | 2.80 |
