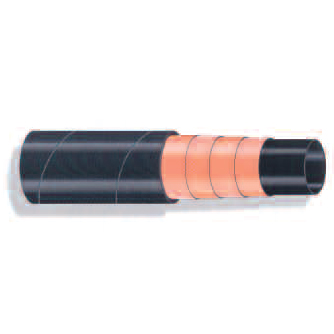

CONCRETE HOSE/40 bar - delivery
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

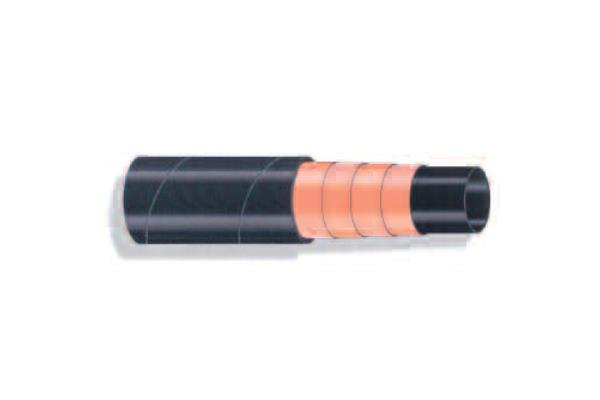

Flexible hose in anti-abrasive and anti-static SBR/NR rubber.
Smooth black underlayer in highly anti-abrasive rubber with reinforcing textile inserts.
Smooth black antistatic cover with canvas impression resistant to abrasion and atmospheric agents.
Use:
delivery of grout, plaster, gunite and mortar.
Standards: abrasion losses of the underlayer according to DIN 53516 70 +/- 5 mm 3.
Maximum working pressure 40 bar – bursting pressure 120 bar.
Operating temperature: -30° +70° C.
Smooth black underlayer in highly anti-abrasive rubber with reinforcing textile inserts.
Smooth black antistatic cover with canvas impression resistant to abrasion and atmospheric agents.
Use:
delivery of grout, plaster, gunite and mortar.
Standards: abrasion losses of the underlayer according to DIN 53516 70 +/- 5 mm 3.
Maximum working pressure 40 bar – bursting pressure 120 bar.
Operating temperature: -30° +70° C.
| Code item | Dimension Ø mm |
|---|---|
| 08GBET025/037 | 25 x 37 |
| 08GBET032/046 | 30 x 46 |
| 08GBET035/050 | 35 x 49 |
| 08GBET038/054 | 38 x 54 |
| 08GBET040/053 | 40 x 56 |
| 08GBET050/069 | 51 x 68 |
| 08GBET065/085 | 65 x 85 |
| 08GBET076/095 | 76 x 95 |
| 08GBET080/104 | 80 x 100 |
| 08GBET090/110 | 90 x 110 |
| 08GBET102/122 | 102 x 122 |
