CEMENT PIPE/10 bar - delivery
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

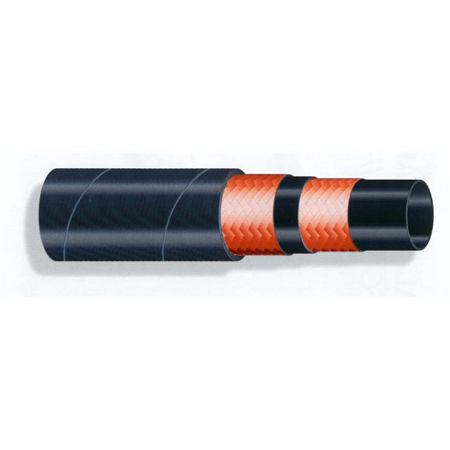

Flexible hose in anti-abrasive and anti-static SBR/NR rubber.
Smooth black underlayer with reinforcing textile inserts, smooth black cover with canvas impression.
Smooth black underlayer with reinforcing textile inserts, smooth black cover with canvas impression.
Use: delivery of cement and other abrasive products such as sand and gravel.
Standards: abrasion losses of the underlayer according to DIN 53516 70 +/- 5 mm 3
Maximum working pressure 10 bar – bursting pressure 30 bar.
Operating temperature: -30° +70° C.
Rolls: 40/61 metres.
| Code item | Dimension Ø mm |
|---|---|
| 08GCEM10051/065 | 51x65 |
| 08GCEM10060/074 | 60x74 |
| 08GCEM10070/084 | 70x84 |
| 08GCEM10076/092 | 76x92 |
| 08GCEM10080/096 | 80x96 |
| 08GCEM10090/106 | 90x106 |
| 08GCEM10102/120 | 102x118 |
| 08GCEM10120/138 | 120x138 |
