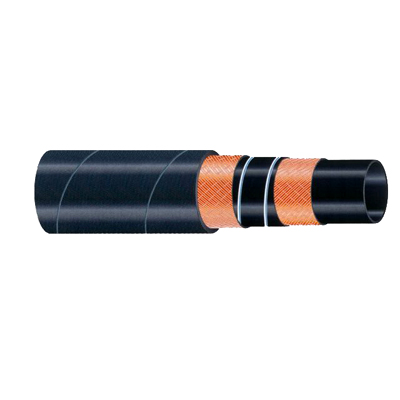

ASPIRCEM HOSE/10 bar
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

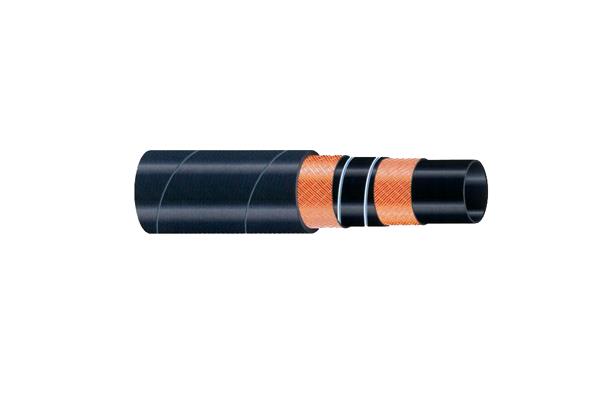

SBR/NR abrasive and antistatic rubber hose. Smooth black rubber internal underlay with highly abrasive fabric reinforcements and embedded steel wire reinforcement. Cover in smooth and black anti-static anti-abrasive rubber with canvas imprint.
Application: Suction and exhaust cement dust and other abrasive products such as sand and gravel.
Standards: abrasion loss of the support according to DIN 53516 70 +/- 5 mm 3.
Maximum operating pressure 10 bar - Gust 30 bar.
Vacuum suction from 0.9 bar up to Ø 120 to 0.8 bar for larger diameters.
Operating temperature: -40° +70° C.
Available on request with other dimensions, pressures, smooth/corrugated/ribbed, with terminal sleeves at the ends.
Application: Suction and exhaust cement dust and other abrasive products such as sand and gravel.
Standards: abrasion loss of the support according to DIN 53516 70 +/- 5 mm 3.
Maximum operating pressure 10 bar - Gust 30 bar.
Vacuum suction from 0.9 bar up to Ø 120 to 0.8 bar for larger diameters.
Operating temperature: -40° +70° C.
Available on request with other dimensions, pressures, smooth/corrugated/ribbed, with terminal sleeves at the ends.
| Dimension mm | Radius of curvature mm |
|---|---|
| 51 x 65 | 300 |
| 60 x 75 | 360 |
| 63.5 x 79 | 380 |
| 70 x 86 | 420 |
| 76 x 92 | 450 |
| 80 x 96 | 480 |
| 90 x106 | 540 |
| 102x118 | 610 |
| 110 x 128 | 660 |
| 120x138 | 720 |
| 127x147 | 760 |
| 152x174 | 920 |
| 203 x 229 | 450 |
