ABRASPIR/CEREALS HOSE
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

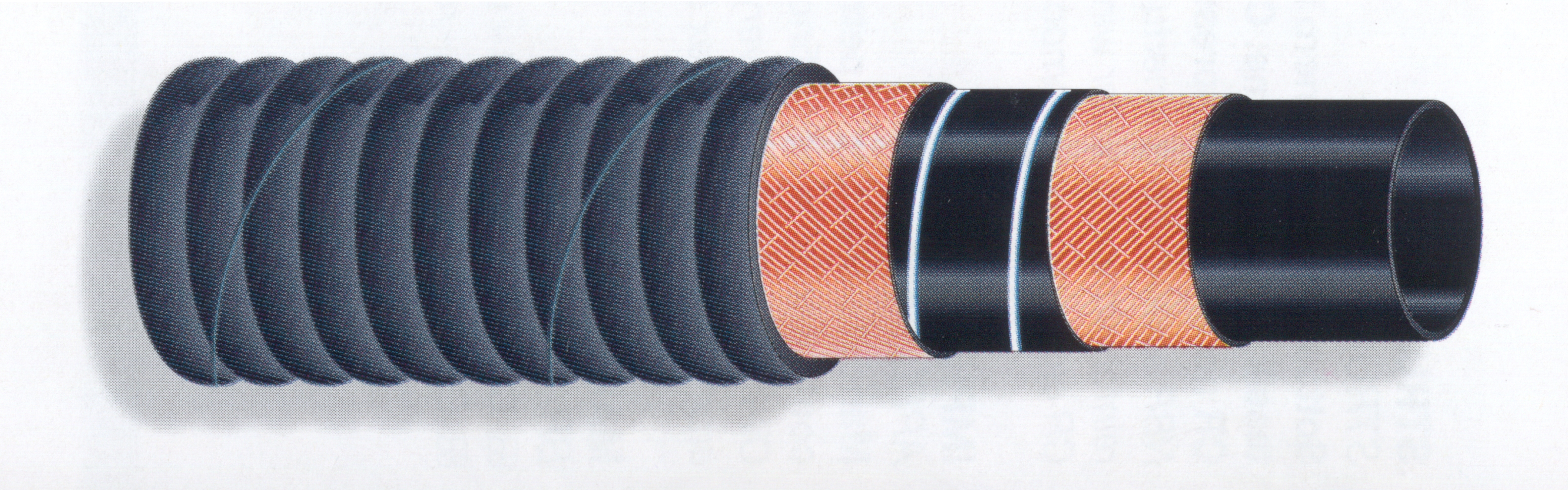

ABRASION RESISTANT SUCTION HOSE
Application: mainly on VEHICLES for vacuum cleaners or industrial cleaning, where constant handling of dust and debris suction hoses is required. Excellent for abrasive materials such as waste and sand but also for transporting and unloading cereals (very appreciated in our experience).
Operating temperature: -35°C +80°C
Safety factor: 3.15:1
Tube: smooth black synthetic rubber, anti-static, abrasion resistant.
Reinforcement: Wrapped textile reinforcements, spiral steel.
Cover: Synthetic rubber, black, corrugated, anti-static, canvas finish.
Medium duty hose, due to its low weight, high flexibility and good wear resistance, is particularly suitable for use as the front end of a suction hose that must be operated by hand. Resistant to wear and atmospheric agents.
On request it is supplied with smooth end sleeves. Standard 40 meter rolls.
| Diameter internal | Diameter external | Thickness wall | Radius of curvature | Weight |
| mm | mm | mm | mm | gr/m |
| 51 | 63 | 6 | 270 | 2.15 |
| 76 | 90 | 7 | 450 | 2.30 |
| 102 | 116 | 7 | 550 | 3.75 |
| 127 | 141 | 7 | 800 | 4.50 |
| 152 | 166 | 7 | 900 | 5.50 |
| 203 | 219 | 8 | 1000 | 8.75 |
