ABRASIVE HOSE/18 BAR
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format

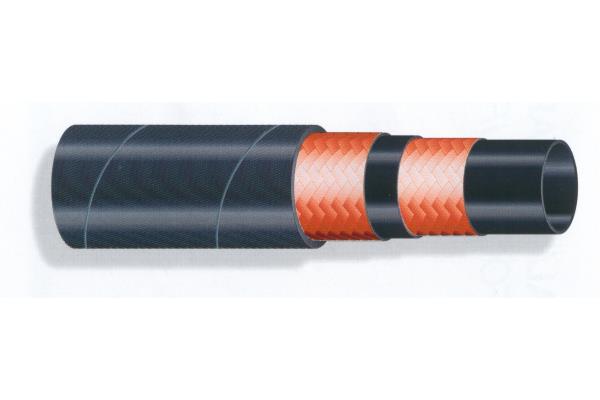

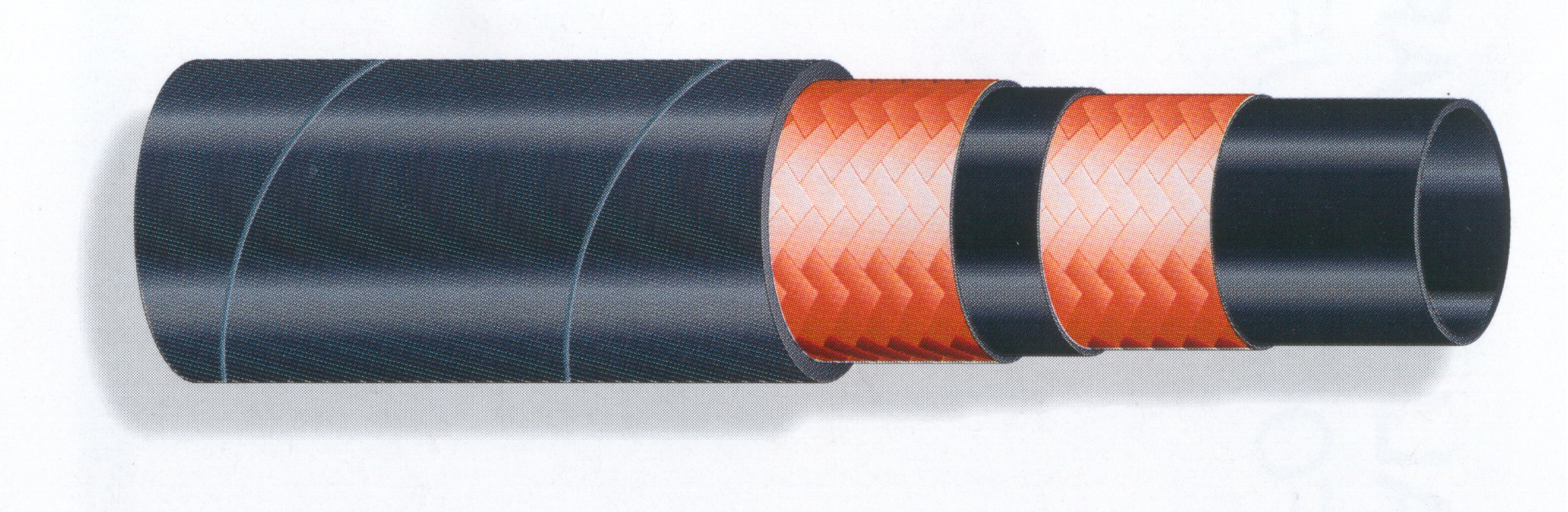

Rubber tube with inner layer in smooth black anti-abrasive and anti-static NR/SBR rubber with highly abrasive fabric reinforcements. Smooth anti-abrasive anti-static NR/SBR rubber cover with cloth tread.
Application: High pressure sandblasting and shot blasting systems for the passage of sand or metal shot, pressurized cement powder and other abrasive products.
Standards: Abrasion loss of the substrate according to DIN 53516 70 +/- 5 mm 3
Maximum operating pressure 12 bar - burst 36 bar
Operating temperature: -40° +70° C.
Standard rolls 40/61 meters
Available on request with other dimensions, pressures, smooth/corrugated/corrugated, with terminal sleeves at the ends.
Application: High pressure sandblasting and shot blasting systems for the passage of sand or metal shot, pressurized cement powder and other abrasive products.
Standards: Abrasion loss of the substrate according to DIN 53516 70 +/- 5 mm 3
Maximum operating pressure 12 bar - burst 36 bar
Operating temperature: -40° +70° C.
Standard rolls 40/61 meters
Available on request with other dimensions, pressures, smooth/corrugated/corrugated, with terminal sleeves at the ends.
| Diameters mm | Rolls |
|---|---|
| 13 x 25 | 40 |
| 16 x 30 | 40 |
| 19 x 30 | 40/61 |
| 19 x 33 | 40/61 |
| 25 x 40 | 40/61 |
| 30 x 45 | 40/61 |
| 32 x 48 | 40/61 |
| 38 x 54 | 40/61 |
| 40 x 60 | 40/61 |
| 51 x 71 | 40/61 |
| 60 x 80 | 40/61 |
| 65 x 85 | 40/61 |
| 80 x 105 | 40/61 |
| 90 x 115 | 40/61 |
| 102 x 127 | 40/61 |
