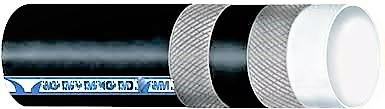

ABRASIVE HOSE/10/TCH - delivery
ONLINE CATALOGUE › HOSES › Flexible rubber hoses for passage of industrial abrasives
Download sheet in pdf format
Flexible hose for transferring abrasive products which generates high wear on the internal walls.
Mainly used in steelworks, foundries, welding plants, ceramic and cement industries.
The extremely smooth and hard white internal surface facilitates the passage of flow, significantly reducing friction.
TECHNOPOLYMER tube - abrasion loss less than 36 mm 3 according to DIN 53516 standards, light gray colour.
High-resistance synthetic textile reinforcements and built-in copper cable.
Conductive, anti-abrasive black SBR rubber cover with canvas imprint, resistant to ozone and bad weather. Marking with orange longitudinal band.
Minimum bending radius 10 times the internal diameter.
Working temperature -30°C +80°C (100°C peak)
code item | diameters tube mm | pressure Of exercise Cafe | empty Cafe | weight theoretical Kg/m |
| 08GABR019/040TCH | 19x40 | 30 | -0.7 | 1.30 |
| 08GABR025/048TCH | 25x48 | 20 | -0.7 | 1.76 |
| 08GABR032/055TCH | 32x55 | 20 | -0.6 | 2.10 |
| 08GABR035/060TCH | 35x60 | 18 | -0.6 | 2.48 |
| 08GABR038/063TCH | 38x63 | 18 | -0.5 | 2.64 |
| 08GABR045/070TCH | 45x70 | 15 | -0.5 | 3.00 |
| 08GABR051/076TCH | 51x76 | 15 | -0.5 | 3.30 |
| 08GABR063/094TCH | 63x94 | 15 | -0.7 | 4.62 |
| 08GABR076/106TCH | 76x106 | 15 | -0.4 | 5.37 |
| 08GABR102/134TCH | 102x134 | 12 | -0.4 | 7.50 |
