PU WIND HOSE/Heavy - antistatic

ONLINE CATALOGUE  ›  HOSES  ›  Dust and chip suction polyurethane hoses

PU WIND HOSE/Heavy - antistatic


Download sheet in pdf format

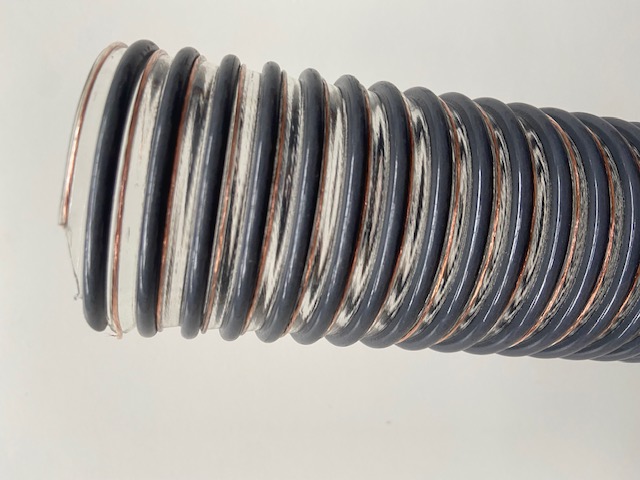

Ester-based polyurethane hose with shock-proof rigid PVC reinforcement spiral covered with polyurethane. Copper cable inserted for the dispersion of surface electric currents. The internal surface is entirely smooth while the external one is corrugated to make the hose flexible to handle.
The ANTISTATIC version includes the cable of 9 copper wires covered with PU on the external surface parallel to the reinforcing coil.

Also available in the non-antistatic version (without incorporated copper wire)

Operating temperature: -40°C +80°C
Color: transparent with gray spiral.
Use: suction of abrasive dust, shavings, plastic granulate.
Polyurethane leaf thickness from Ø 40 to Ø 150 thickness 1mm

Code
Diameters mm
Weight g/m
mH2O depression
Radius of curvature
Rolls m
11PVPUATPMA038
38.1x45.7
310
3
130
30
11PVPUATPPA040
40x47
350
3
140
30
11PVPUATPPA045
45x52.6
445
3
160
30
11PVPUATPPA052
50.8x59.4
550
3
175
30
11PVPUATPPA060
60x68.6
640
3
200
30
11PVPUATPPA0630
63.5x71.9
670
3
230
30
11PVPUATPPA065
65x73.4
680
3
230
30
11PVPUATPPA070
70x79.4
750
3
250
30
11PVPUATPPA076
76.2x85.6
810
2.5
270
30
11PVPUATPPA080
80x90.4
900
2.5
290
30
11PVPUATPPA090
90x100.6
1050
2.5
360
30
11PVPUATPPA100
100x111.4
1290
2.5
400
30
11PVPUATPPA120
120x132
1500
2.5
470
30
