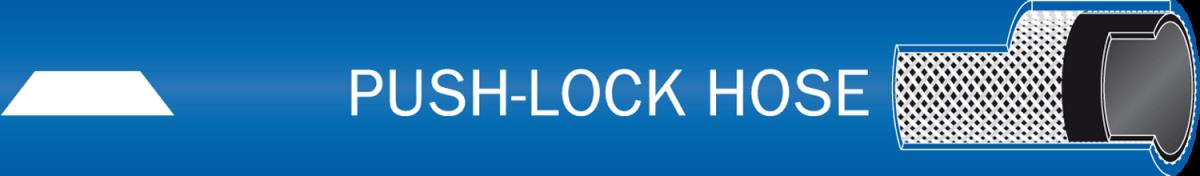

PUSH LOCK TUBE BLUE-RED-BLACK-GREEN
ONLINE CATALOGUE › HOSES › Compressed air hoses
Download sheet in pdf format
MULTIPURPOSE HOSE IDEAL FOR INDUSTRIAL MAINTENANCE
Ideally designed for low pressure hydraulic pneumatic lines for robotics in automotive industries. Used with push-in fittings at maximum working pressure of 16bar (250psi). Not suitable for pulse pressure application.
Excellent abrasion resistance. Flexibility, lightness and easy handling. Silicone free.
Packs of : 40, 80 and 100 metres
Tube: NBR / PVC oil resistant, black, smooth
Reinforcement : Nylon braid inserted
Cover: NBR / PVC abrasion-, oil- and weather-resistant, blue, smooth
a braid of fabric.
Temperature range: Air -20°C +110°C (peak + 125°C) - Water 0°C +100°C (peak + 110°C) - Hydraulic oils: -20°C +70°C (peak + 90 °C) - Glycol water: -20°C +70°C (peak + 90 °C)
Electrical properties: non-conductive substrate (R>10 12 O/m).
Fittings: MANUAL PRESSURE "BELL" fittings in galvanized carbon steel or stainless steel are used.
Version: Straight - 45° - 90°
Thread: BSP - Metric -JIC - smooth weld - Swivel female - Tapered male
maximum operating pressure of 16bar (250psi)
Ideally designed for low pressure hydraulic pneumatic lines for robotics in automotive industries. Used with push-in fittings at maximum working pressure of 16bar (250psi). Not suitable for pulse pressure application.
Excellent abrasion resistance. Flexibility, lightness and easy handling. Silicone free.
Packs of : 40, 80 and 100 metres
Tube: NBR / PVC oil resistant, black, smooth
Reinforcement : Nylon braid inserted
Cover: NBR / PVC abrasion-, oil- and weather-resistant, blue, smooth
a braid of fabric.
Temperature range: Air -20°C +110°C (peak + 125°C) - Water 0°C +100°C (peak + 110°C) - Hydraulic oils: -20°C +70°C (peak + 90 °C) - Glycol water: -20°C +70°C (peak + 90 °C)
Electrical properties: non-conductive substrate (R>10 12 O/m).
Fittings: MANUAL PRESSURE "BELL" fittings in galvanized carbon steel or stainless steel are used.
Version: Straight - 45° - 90°
Thread: BSP - Metric -JIC - smooth weld - Swivel female - Tapered male
maximum operating pressure of 16bar (250psi)
| ID inches | ID mm | OD mm | Pressure of exercise Cafe | Pressure of explosion Cafe | Radius of curvature mm | Weight kg/m | Length packages m |
|---|---|---|---|---|---|---|---|
1/4 | 6.3 ±0.4 | 12.4 ±0.8 | 16.0 | 64 | 45 | 0.12 | 20-40-100 |
3/8 | 9.6 ±0.5 | 15.5 ±0.8 | 16.0 | 64 | 75 | 0.16 | 20-40-100 |
1/2 | 12.7 ±0.6 | 18.7 ±1.0 | 16.0 | 64 | 90 | 0.19 | 20-40-100 |
5/8 | 16 ±0.6 | 22.9 ±1.0 | 16.0 | 64 | 115 | 0.28 | 20-40-80 |
3/4 | 19.2 ±0.6 | 26.5 ±1.0 | 16.0 | 64 | 135 | 0.34 | 20-40-80 |
* Length tolerance: ± 1% (ISO 1307 standard)
