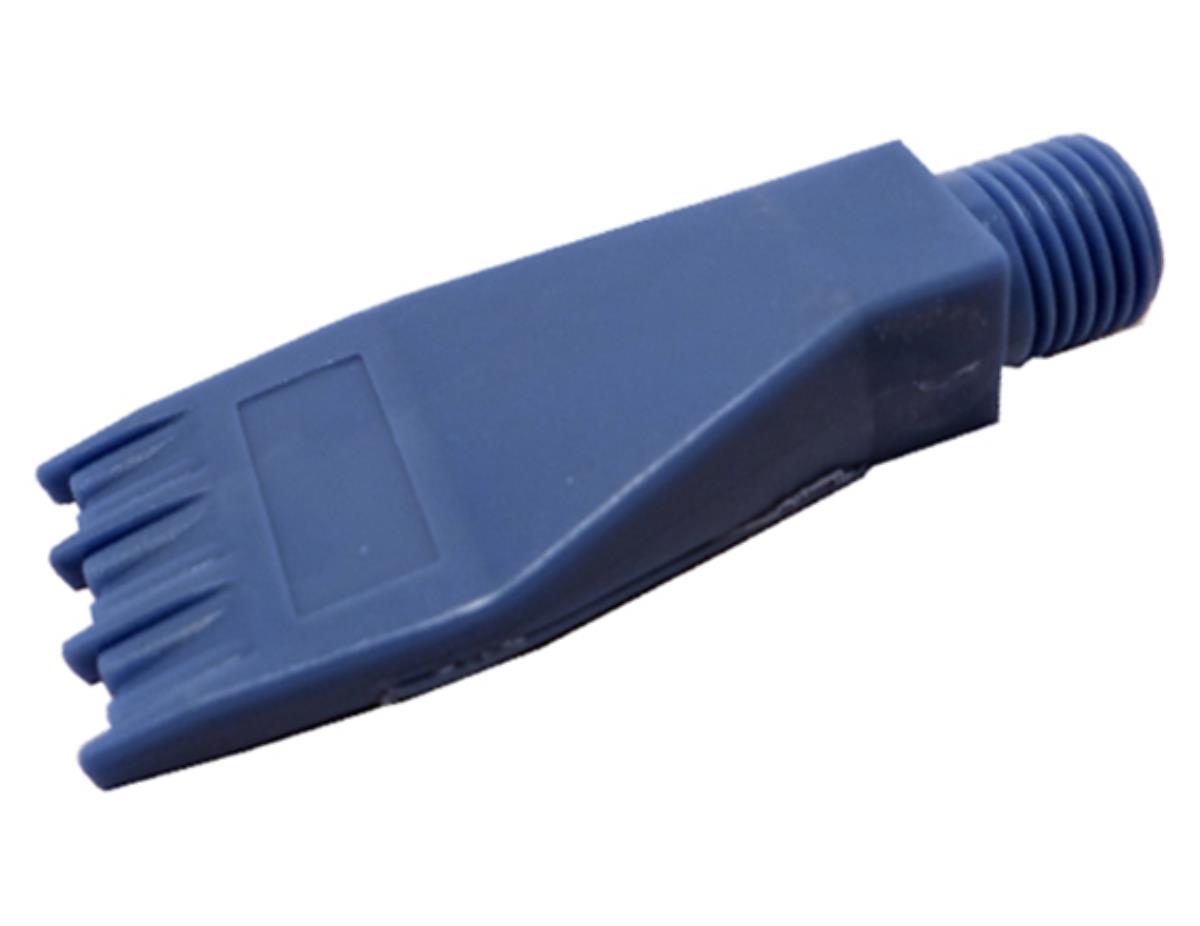

COMB NOZZLE FOR COMPRESSED AIR
This nozzle generates a uniform and controlled flow of compressed air. Recessed vents protect against external damage and allow air to escape even when placed against a flat surface. Low noise level.
ABS plastic body
Working temperature 0° +77°C - Maximum working pressure 7 Bar.
BSPT ISO 7 R1/4" conical gas thread
TOTAL LENGTH 90.5 mm
TOTAL WIDTH 47.4 mm
This nozzle generates a uniform and controlled flow of compressed air. Recessed vents protect against external damage and allow air to escape even when placed against a flat surface. Low noise level.
ABS plastic body
Working temperature 0° +77°C - Maximum working pressure 7 Bar.
BSPT ISO 7 R1/4" conical gas thread
TOTAL LENGTH 90.5 mm
TOTAL WIDTH 47.4 mm
| CAPACITY | CAPACITY' |
| Cafe | Nlpm |
| 0.70 | 193 |
| 2 | 357 |
| 4 | 586 |
| 6 | 816 |
