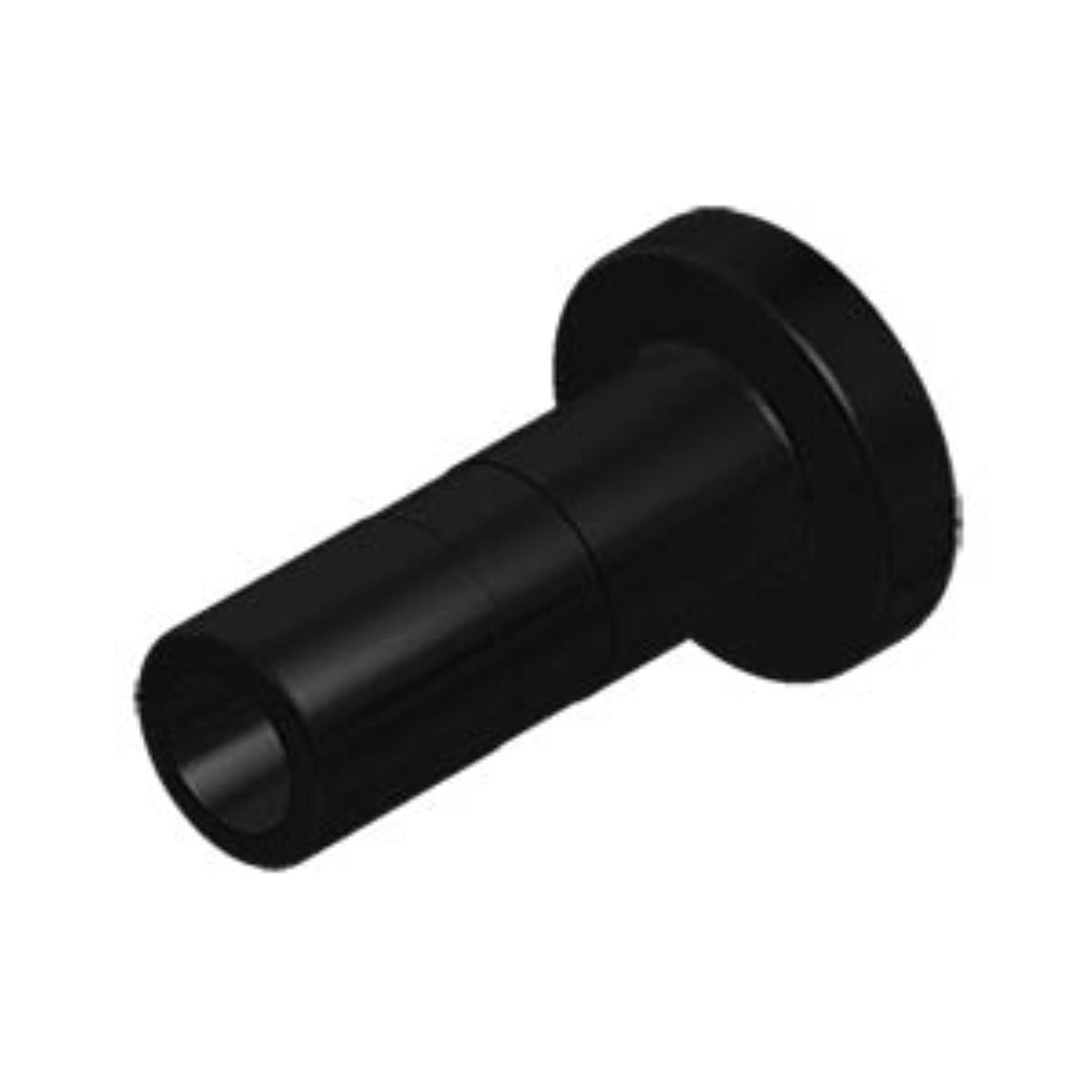

art.725 CAP
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › FITTINGS AND CONNECTIONS FOR PNEUMATIC SYSTEMS › 700 Series POM QUICK FITTINGS
Download sheet in pdf format
Code: 725
| ØD | ØP | L | TO | WEIGHT | CONF. |
|---|---|---|---|---|---|
| 4 | 13 | 22.5 | 19.0 | 0.8 | 200 |
| 6 | 13 | 24.5 | 21.0 | 1.1 | 200 |
| 8 | 16 | 26.5 | 23.0 | 1.8 | 100 |
| 10 | 18 | 30.0 | 26.0 | 2.7 | 100 |
| 12 | 21 | 34.0 | 30.0 | 4.0 | 100 |
| 15 | 25 | 40.0 | 36.0 | 6.4 | 50 |
| 22 | 33 | 45.5 | 41.0 | 12.2 | 20 |
