Code: 704

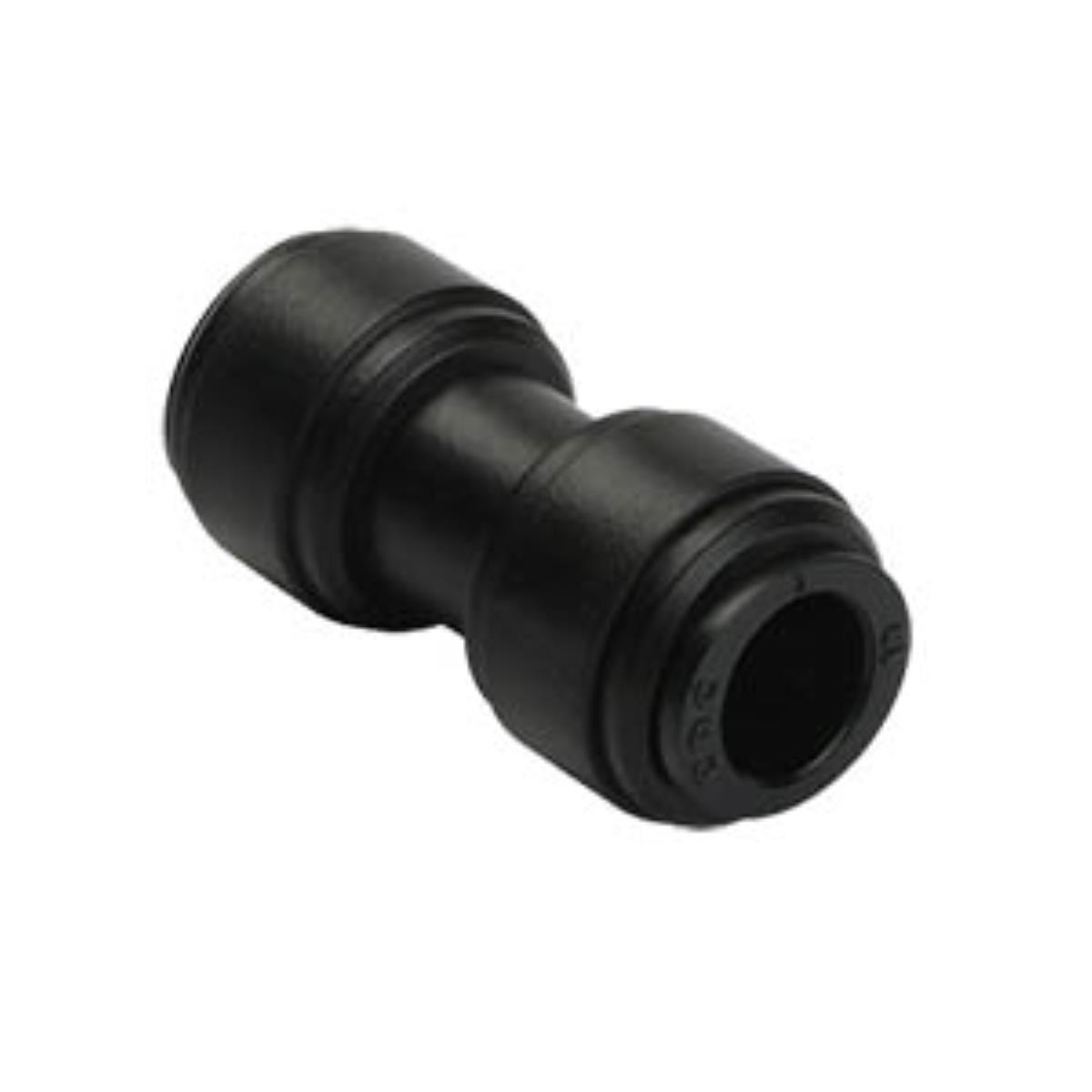

Quick fittings in acetal resin with straight joint
ØD1 | ØD2 | B1 | B2 | ØE | L | WEIGHT | CONF. |
---|
4 | 4 | 14.7 | 14.7 | 13.2 | 31.8 | 3.8 | 100 |
6 | 6 | 16.1 | 16.1 | 15.0 | 35.2 | 4.7 | 100 |
8 | 6 | 17.5 | 16.1 | 17.6 | 37.8 | 7.1 | 50 |
8 | 8 | 17.5 | 17.5 | 17.6 | 38.2 | 6.9 | 50 |
10 | 8 | 20.1 | 17.5 | 20.0 | 42.4 | 9.6 | 50 |
10 | 10 | 20.1 | 20.1 | 20.0 | 42.7 | 9.2 | 50 |
12 | 10 | 24.7 | 20.1 | 23.0 | 51.7 | 15.0 | 25 |
12 | 12 | 24.7 | 24.7 | 23.0 | 52.4 | 14.4 | 25 |
6 | 4 | 16.1 | 14.7 | 15.0 | 35.0 | 5.0 | 100 |
6 | 5 | 16.1 | 14.9 | 15.0 | 35.1 | 5.0 | 100 |
10 | 6 | 20.1 | 16.1 | 20.0 | 42.0 | 9.8 | 50 |
15 | 15 | 29.4 | 29.4 | 28.0 | 61.8 | 23.4 | 20 |
22 | 22 | 33.8 | 33.8 | 35.5 | 70.6 | 37.7 | 9 |
