COMPRESS HOSE 20 bar
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › COMPONENTS FOR INDUSTRIAL COMPRESSED AIR PLANTS › HOSES FOR COMPRESSED AIR SYSTEMS
Download sheet in pdf format

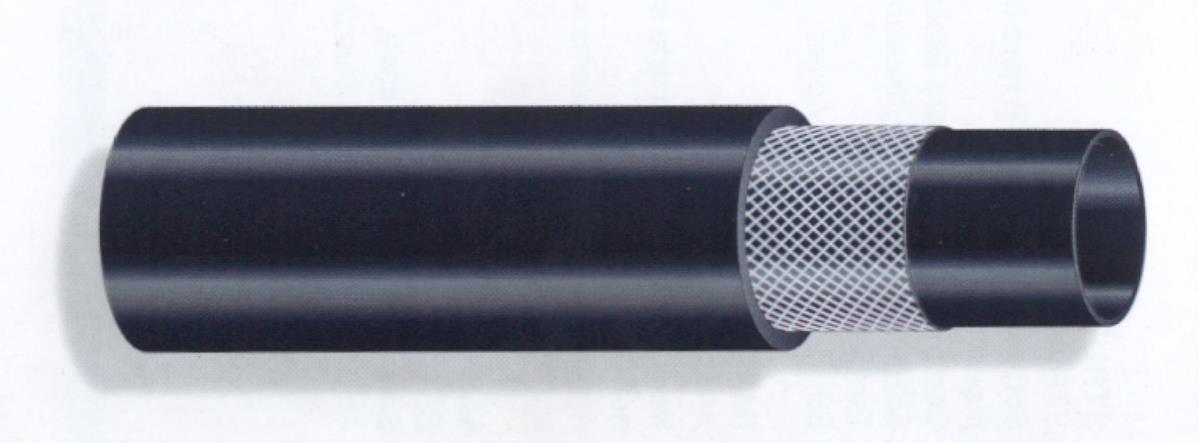

SBR rubber hose with synthetic thread reinforcement.
Smooth black cover, underlayer resistant to traces of sprayed oil.
Operating pressure 20 bar, burst 60 bar.
Operating temperature: -30° C +70° C.
Use: compressed air/water/inert fluid delivery
Smooth black cover, underlayer resistant to traces of sprayed oil.
Operating pressure 20 bar, burst 60 bar.
Operating temperature: -30° C +70° C.
Use: compressed air/water/inert fluid delivery
| Code | ØixØe mm | Radius of curvature mm | Weight Kg/m | Rolls m |
|---|---|---|---|---|
| 01G020006/014 | 6x14 | 18 | 0.20 | 100 |
| 01G020008/017 | 8x17 | 24 | 0.28 | 100 |
| 01G020010/019 | 10x19 | 30 | 0.32 | 100 |
| 01G020013/023 | 13x23 | 60 | 0.40 | 50 |
| 01G020016/026 | 16x26 | 70 | 0.48 | 50 |
| 01G020019/030 | 19x30 | 80 | 0.42 | 50 |
| 01G020025/37 | 25x37 | 100 | 0.90 | 50 |
