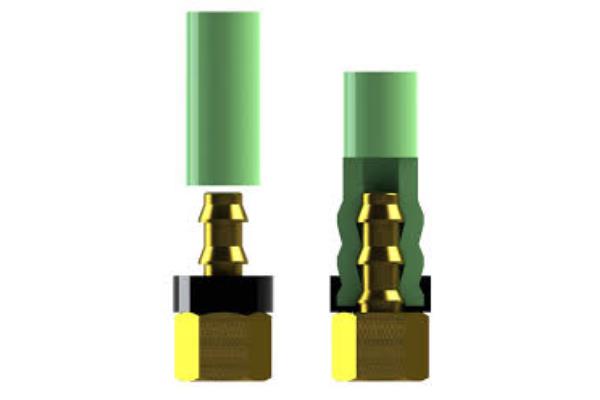

HOSE FITTINGS WITH MANUAL SELF-LOCKING HOSE
ONLINE CATALOGUE › FITTINGS FOR COMPRESSED AIR › COMPONENTS FOR INDUSTRIAL COMPRESSED AIR PLANTS › FITTINGS AND QUICK JOINTS FOR COMPRESSED AIR
Download sheet in pdf format
HOSE FITTINGS WITH MANUAL SELF-LOCKING HOSE
WORKING TEMPERATURE: 0° +70°C
WORKING PRESSURE: 18 BAR
AVAILABLE MATERIALS: YELLOW BRASS UNI EN 12164 CW 617N - CARBON STEEL - STAINLESS STEEL
FIGURES: STRAIGHT - 45° BEND - 90° BEND - SMOOTH TANG
THREADS : BSP OGIVE SEAT 60° - METRIC - JIC 74° - METRIC 24° O-RING
WORKING TEMPERATURE: 0° +70°C
WORKING PRESSURE: 18 BAR
AVAILABLE MATERIALS: YELLOW BRASS UNI EN 12164 CW 617N - CARBON STEEL - STAINLESS STEEL
FIGURES: STRAIGHT - 45° BEND - 90° BEND - SMOOTH TANG
THREADS : BSP OGIVE SEAT 60° - METRIC - JIC 74° - METRIC 24° O-RING
| BRASS METRIC SIZES | BSP BRASS SIZES | STAINLESS STEEL BSP SIZES | METRIC SIZES 24° STAINLESS STEEL CONE | STAINLESS STEEL JIC SIZES |
| M10 | G1/8" | - | M12x1.5 - 1/4" | 7/16" - 1/4" |
| M12 | G1/4" | G1/4" | M14x1.5 - 1/4" | 1/2" - 1/4" |
| M16 | G3/8" | G3/8" | M16x1.5 - 1/4" | 9/16" -3/8" |
| M20 | G1/2" | G1/2" | M16x1.5 - 3/8" | 3/4" - 3/8" |
| M22 | G3/4" | G3/4" | M14x1.5 - 1/4" | 3/4" - 1/2" |
| M24 | 1" | M16x1.5 - 1/4" | 1"1/16 - 3/4" | |
| M30 | M16x1.5 - 3/8" | 1"1/2 - 3/4" | ||
| M22x1.5 - 1/2" | 1" 5/16" | |||
| M26x1.5 - 1/2" | ||||
| M26x1.5 - 1/2" | ||||
| M30x2 - 3/4" |
