FUEL HOSE/20 bar
ONLINE CATALOGUE › HOSES › Hydrocarbon delivery hoses
Download sheet in pdf format

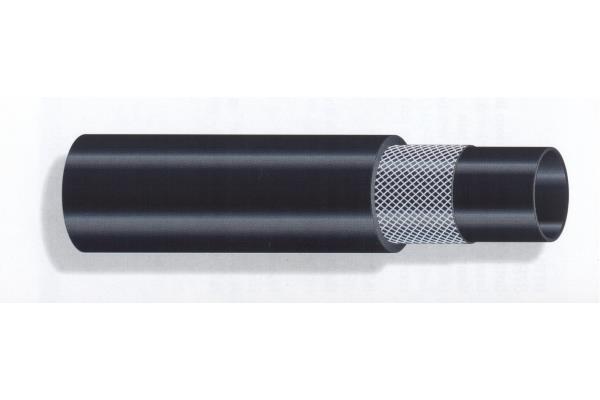

Hose suitable for the delivery of fuels, oils and lubricants, diesel with aromatic content up to 50%.
Smooth conductive black NBR rubber tube, with textile reinforcement.
Smooth black NBR/PVC rubber cover resistant to hydrocarbons, atmospheric agents, ozone.
packs of 30 or 100 metres
packs of 30 or 100 metres
Operating temperature: -25° +80°C
WORKING PRESSURE 20 bar
BURST PRESSURE 60 bar
WORKING PRESSURE 20 bar
BURST PRESSURE 60 bar
| item | Dimensions mm | Radius of curvature mm |
|---|---|---|
| 06GNBR2005/13 | 5x13 | 40 |
| 06GNBR2006/13 | 6x13 | 40 |
| 06GNBR2006/14 | 6x14 | 50 |
| 06GNBR2008/15 | 8x15 | 60 |
| 06GNBR2008/17 | 8x17 | 65 |
| 06GNBR2010/17 | 10x17 | 75 |
| 06GNBR2010/19 | 10x19 | 80 |
| 06GNBR2013/21 | 13x21 | 95 |
| 06GNBR2013/23 | 13x23 | 105 |
| 06GNBR2016/26 | 16x26 | 120 |
| 06GNBR2019/29 | 19x29 | 140 |
| 06GNBR2019/30 | 19x30 | 145 |
| 06GNBR2025/36 | 25x36 | 200 |
