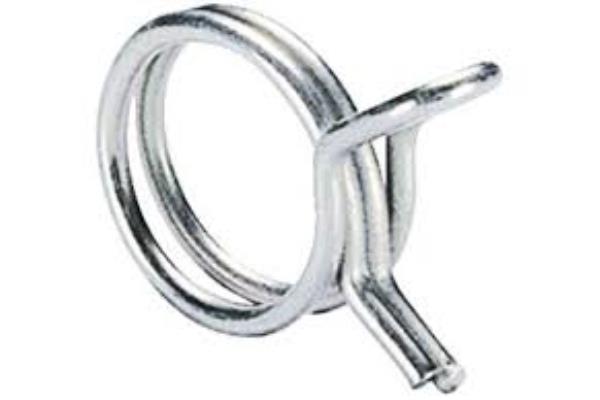

TWO-WIRE SPRING CLAMP
ONLINE CATALOGUE › CLAMPS AND TIGHTENING SYSTEMS › TWO-WIRE CLAMP
Download sheet in pdf format
Material type Material description W1 Galvanized steel , chromium VI free (EU RoHS directive) D
Recommended for tightening pipes with raised spirals.
They guarantee optimal tightening even in the presence of very soft and thin pipes.
Coating resistance to corrosion (exposure time to salt spray test: 96 HOURS
Ø MIN | Ø IDEAL | Ø MAX | WIRE THICKNESS | BOX |
mm | mm | mm | mm | no |
5.6 | 5.6 | 6.0 | 0.8 | 100 |
6.6 | 6.8 | 7.0 | 1.0 | 100 |
7 | 7.3 | 7.5 | 1.0 | 100 |
7.3 | 7.6 | 7.8 | 1.0 | 100 |
7.8 | 8.1 | 8.3 | 1.0 | 100 |
8.3 | 8.6 | 8.8 | 1.0 | 100 |
8.8 | 9.1 | 9.3 | 1.0 | 100 |
9.3 | 9.6 | 9.8 | 1.0 | 100 |
9.8 | 10.1 | 10.4 | 1.2 | 100 |
10.4 | 10.7 | 11.0 | 1.2 | 100 |
11.0 | 11.3 | 11.6 | 1.2 | 100 |
11.6 | 11.9 | 12.2 | 1.5 | 100 |
12.2 | 12.6 | 12.9 | 1.5 | 100 |
12.4 | 12.8 | 13.1 | 1.2 | 100 |
12.9 | 13.3 | 13.6 | 1.5 | 100 |
13.3 | 13.7 | 14.1 | 1.5 | 100 |
13.6 | 14 | 14.4 | 1.5 | 100 |
14.4 | 14.8 | 15.1 | 1.8 | 100 |
15.1 | 15.6 | 15.9 | 1.8 | 100 |
15.5 | 15.8 | 16.3 | 1.8 | 100 |
15.9 | 16.4 | 16.8 | 1.8 | 100 |
16.8 | 17.3 | 17.7 | 1.8 | 100 |
17.7 | 18.2 | 18.7 | 1.9 | 100 |
18.7 | 19.2 | 19.5 | 2.0 | 100 |
19.6 | 20.2 | 20.5 | 2.0 | 100 |
20.6 | 21.2 | 21.6 | 2.0 | 100 |
21.5 | 22.1 | 22.6 | 2.2 | 100 |
22 | 22.6 | 23.1 | 2.2 | 100 |
22.4 | 23.1 | 23.6 | 2.2 | 100 |
23.5 | 24.2 | 24.7 | 2.2 | 100 |
24.5 | 25.2 | 25.8 | 2.5 | 100 |
25.1 | 25.8 | 26.4 | 2.5 | 100 |
25.6 | 26.3 | 26.9 | 2.5 | 100 |
26.7 | 27.5 | 28.1 | 2.5 | 100 |
27.9 | 28.7 | 29.4 | 2.5 | 100 |
