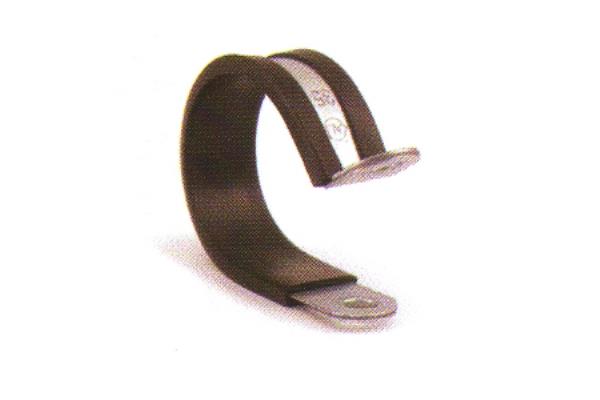

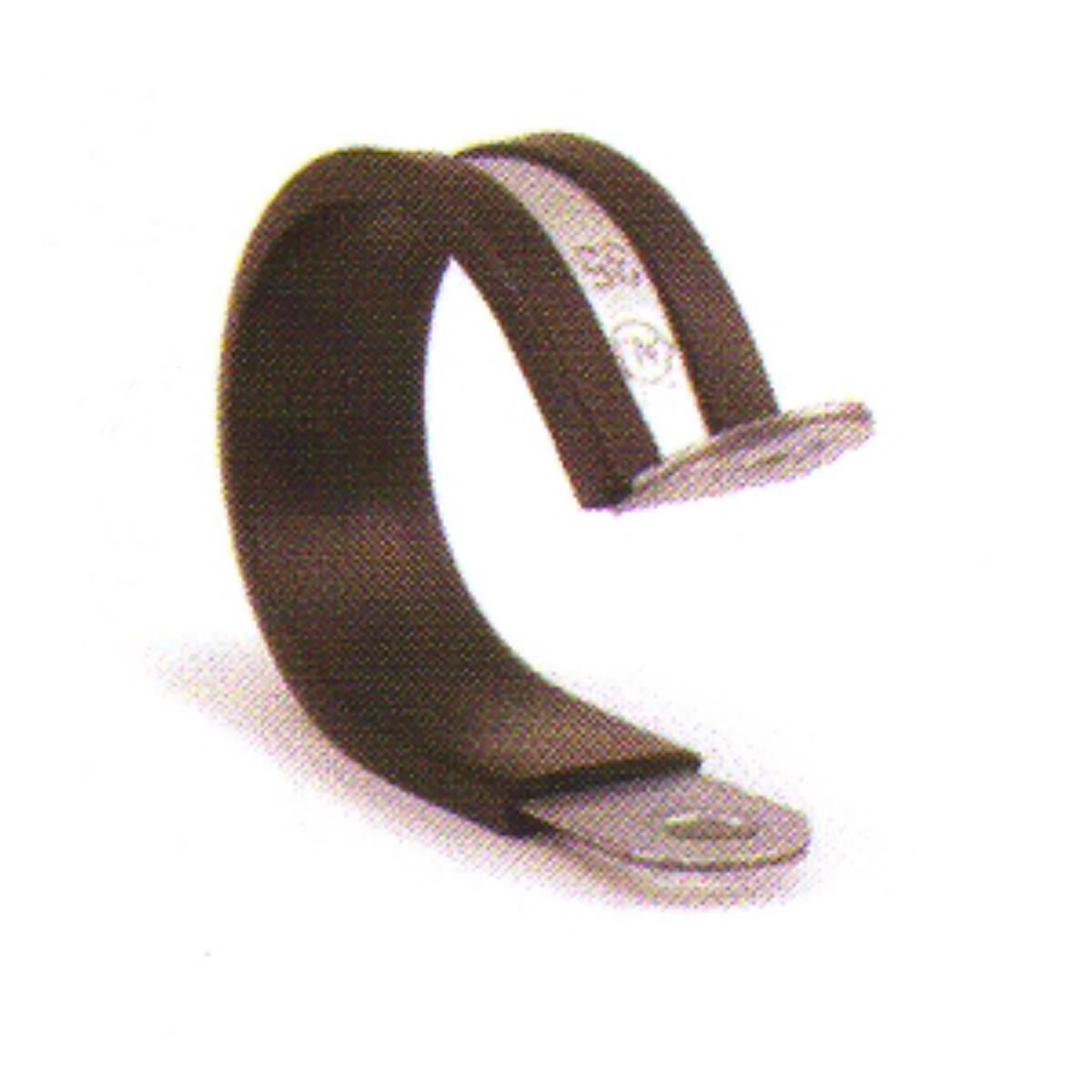

RUBBER CABLE GLAND RSGU-1


Download sheet in pdf format
Pipe clamp in accordance with DIN 3016, suitable for all clamping applications for pipes, cables, cable bundles, cable protection tubes, hoses and other types of pipelines.

The cable glands are made with galvanized or 430 stainless steel tape, shaped and covered in anti-vibration rubber, to ensure and guarantee greater protection of the cables/pipes contained in the cable glands themselves and the absorption of any vibrations. Band adaptable to shape
Reinforced band ends – prevents the attachment point from giving way or loosening under high mechanical stress.
Available with a rubber profile as an option, allowing both a high-performance coupling between the clamp and the component to be fixed and vibration dampening.

Benefits overview:
• Simple assembly and safe fixing
• Reinforced band ends for very high mechanical loads
• The rubber profile protects against vibrations, absorbs noise and protects against corrosion
• Supplied opened and ready for use

Applications:
 • Machine construction
• Railway industry
• Home appliances
• Agricultural machinery
• Chemical industry
• Construction machinery
• Irrigation systems
• Engine construction
• Naval construction
• Pumps and filters
• Agri-food industry
• Mining industry

MATERIAL PROPERTIES OF THE EPDM RUBBER PROFILE
  • Tensile strength [N/mm2 ] Min. 8
  • Elongation at break [%] 350
  • Shore A hardness 70 ± 5
  • Operating temperature [°C] –40 to +120
  • Resistance to: Atmospheric conditions/Ozone Excellent
  • Aging/UV rays Excellent
  • Fuel Not suitable
  • Oils and fats Not suitable
  • Alcohol Excellent Acids Excellent
  • Alkali Excellent
  • Silicone rubber profile available on request.


Diameter

mm		 15mm - M6 20mm - M8
Item code Packaging Item code Packaging
6 FG6/15 100 FG6/20 50
7 FG7/15 100 FG7/20 50
8 FG8/15 100 FG8/20 50
9 FG9/15 100 FG9/20 50
10 FG10/15 100 FG10/20 50
11 FG11/15 100 FG11/20 50
12 FG12/15 100 FG12/20 50
13 FG13/15 100 FG13/20 50
14 FG14/15 100 FG14/20 50
15 FG15/15 100 FG15/20 50
16 FG16/15 100 FG16/20 50
17 FG17/15 100 FG17/20 50
18 FG18/15 100 FG18/20 50
19 FG19/15 100 FG19/20 50
20 FG20/15 100 FG20/20 50
21 FG21/15 100 FG21/20 50
22 FG22/15 100 FG22/20 50
23 FG23/15 100 FG23/20 50
24 FG24/15 100 FG24/20 50
25 FG25/15 100 FG25/20 50
26 FG26/15 100 FG26/20 50
27 FG27/15 100 FG27/20 50
28 FG28/15 100 FG28/20 50
29 FG29/15 100 FG29/20 50
30 FG30/15 100 FG30/20 50
31 FG31/15 100 FG31/20 50
32 FG32/15 100 FG32/20 50
33 FG33/15 100 FG33/20 50
34 FG34/15 100 FG34/20 50
35 FG35/15 100 FG35/20 50
36 FG36/15 100 FG36/20 50
37 FG37/15 100 FG37/20 50
38 FG38/15 100 FG38/20 50
39 FG39/15 100 FG39/20 50
40 FG40/15 100 FG40/20 50
41 FG41/15 100 FG41/20 50
42 FG42/15 100 FG42/20 50
43 FG43/15 100 FG43/20 50
44 FG44/15 100 FG44/20 50
45 FG45/15 100 FG45/20 50
46 FG46/15 100 FG46/20 50
47 FG47/15 100 FG47/20 50
48 FG48/15 100 FG48/20 50
49 FG49/15 100 FG49/20 50
50 FG50/15 100 FG50/20 50
