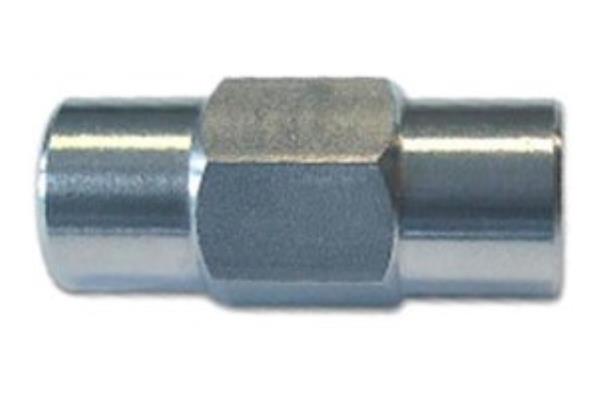

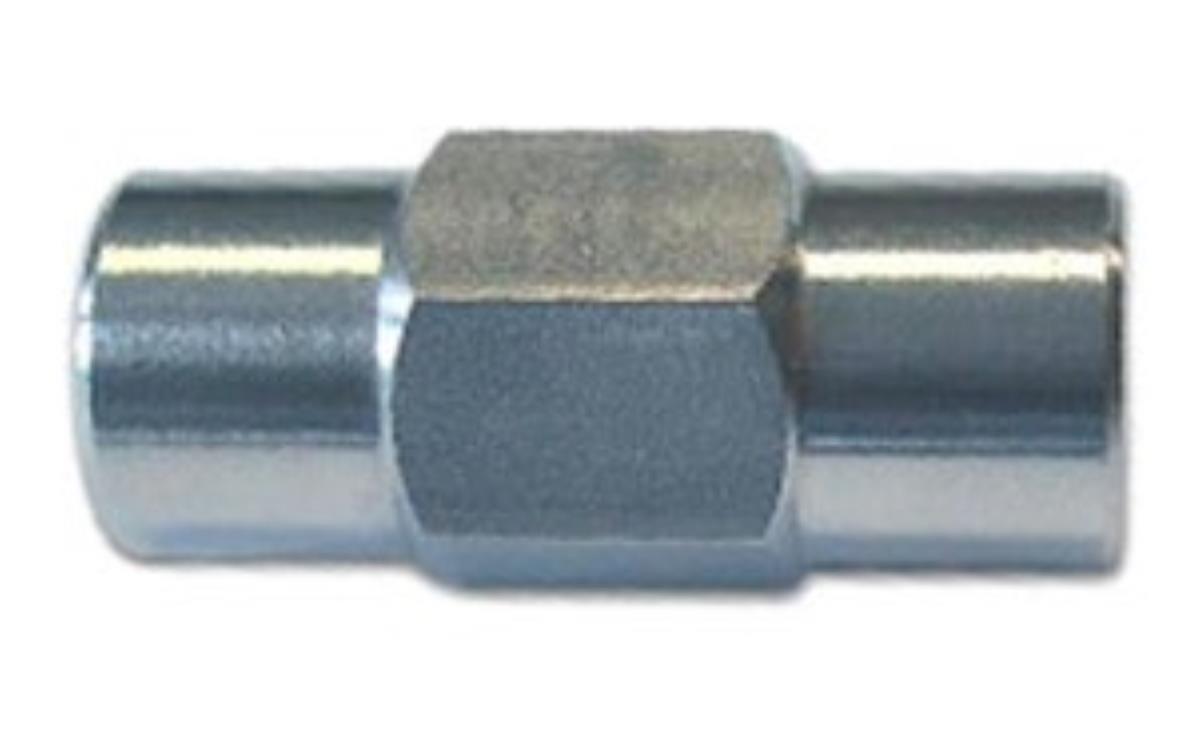

STAINLESS STEEL ONE-WAY FEMALE CYLINDRICAL VALVE PN20



Download sheet in pdf format
CHARACTERISTICS:
Body: AISI 316L stainless steel
Shutter: AISI 316L stainless steel
Spring: AISI 302 stainless steel
O-ring: - VITON from -20°C to 205°C - EPDM: from -40°C to 130°C on request
Possibility of supplying them degreased
Clamping ring: AISI 302 stainless steel
Cylindrical gas thread BSPP UNI ISO 228/1 from G1/8" to G1" - also with NPT thread on request
Indication of the direction of the fluid engraved on the body
Operating pressure: 20 Bar

REFERENCE STANDARDS:
-Product compliant with the 2002/95EC REACH directive
-Product compliant with directive 2011/65/EU RoHS2
-Product compliant with the DM174 directive
-Product compliant with EC1935 directive
-Product compliant with the DM directive 7 February 2012, n. 25: Regulation of technical provisions for equipment for the domestic treatment of drinking water.
-Product compliant with the DM directive 6 April 2004, n. 174: Regulation on materials and objects that can be used in water treatment and distribution plants intended for human consumption.

USE: suitable in aggressive, corrosive oxidizing environments, sea water, boats, analysis laboratories, chemical, medical, pharmaceutical and food industries.
Measure Length
mm
Height
mm
Weight
gr.
Opening pressure
Cafe
1/8" 40 17 48 0.35
1/4 41 17 43 0.30
3/8" 47 22 84 0.25
1/2" 56 27 143 0.08
3/4" 66 36 330 0.10
1" 79 41 388 0.80
