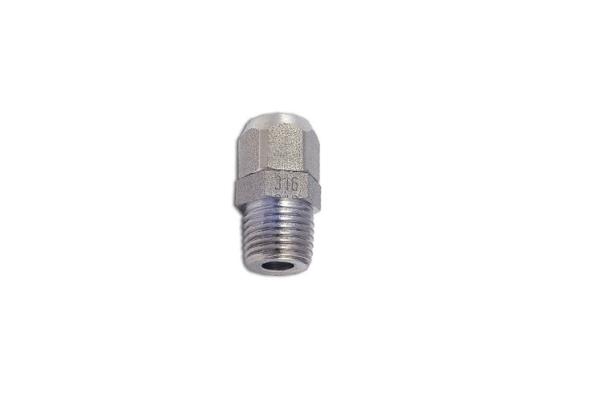

STAINLESS STEEL STRAIGHT CONICAL MALE FITTING BSPT
ONLINE CATALOGUE › FITTINGS FOR THE CHEMICAL AND FOOD INDUSTRY › STAINLESS STEEL AISI316L FITTINGS
Download sheet in pdf format
Code: 340 X
AISI 316L STRAIGHT CONICAL MALE FITTING FITTING BSPT.
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -40°C Maximum Temperature +140°C
BSPT conical gas thread compliant with ISO 7.1
Maximum pressure: 25 bar at 20°C
Compatible Fluids: Compressed air - Vacuum - Water - Fluids for the food and chemical industry.
Minimum package 10 pieces.
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2015/863
- DM174/2004
- MOCA 1935/2004
- SILICON FREE
AISI 316L STRAIGHT CONICAL MALE FITTING FITTING BSPT.
Connection hoses: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP.
Minimum Temperature -40°C Maximum Temperature +140°C
BSPT conical gas thread compliant with ISO 7.1
Maximum pressure: 25 bar at 20°C
Compatible Fluids: Compressed air - Vacuum - Water - Fluids for the food and chemical industry.
Minimum package 10 pieces.
reference standards:
- REACH DIRECTIVE 1907/2006
- RoHS3 EU DIRECTIVE 2015/863
- DM174/2004
- MOCA 1935/2004
- SILICON FREE
| code | measures tube-Thread |
| 32C340X6/04-1/8 | 6/4 - 1/8" |
| 32C340X6/04-1/4 | 6/4 - 1/4" |
| 32C340X8/06-1/8 | 8/6 - 1/8" |
| 32C340X8/06-1/4 | 8/6 - 1/4" |
| 32C340X10/8-1/8 | 10/8 - 1/8" |
| 32C340X10/8-1/4 | 10/8 - 1/4" |
| 32C340X10/8-3/8 | 10/8 - 3/8" |
| 32C340X12/10-3/8 | 12/10 - 3/8" |
| 32C340X12/10-1/2 | 12/10 - 1/2" |
