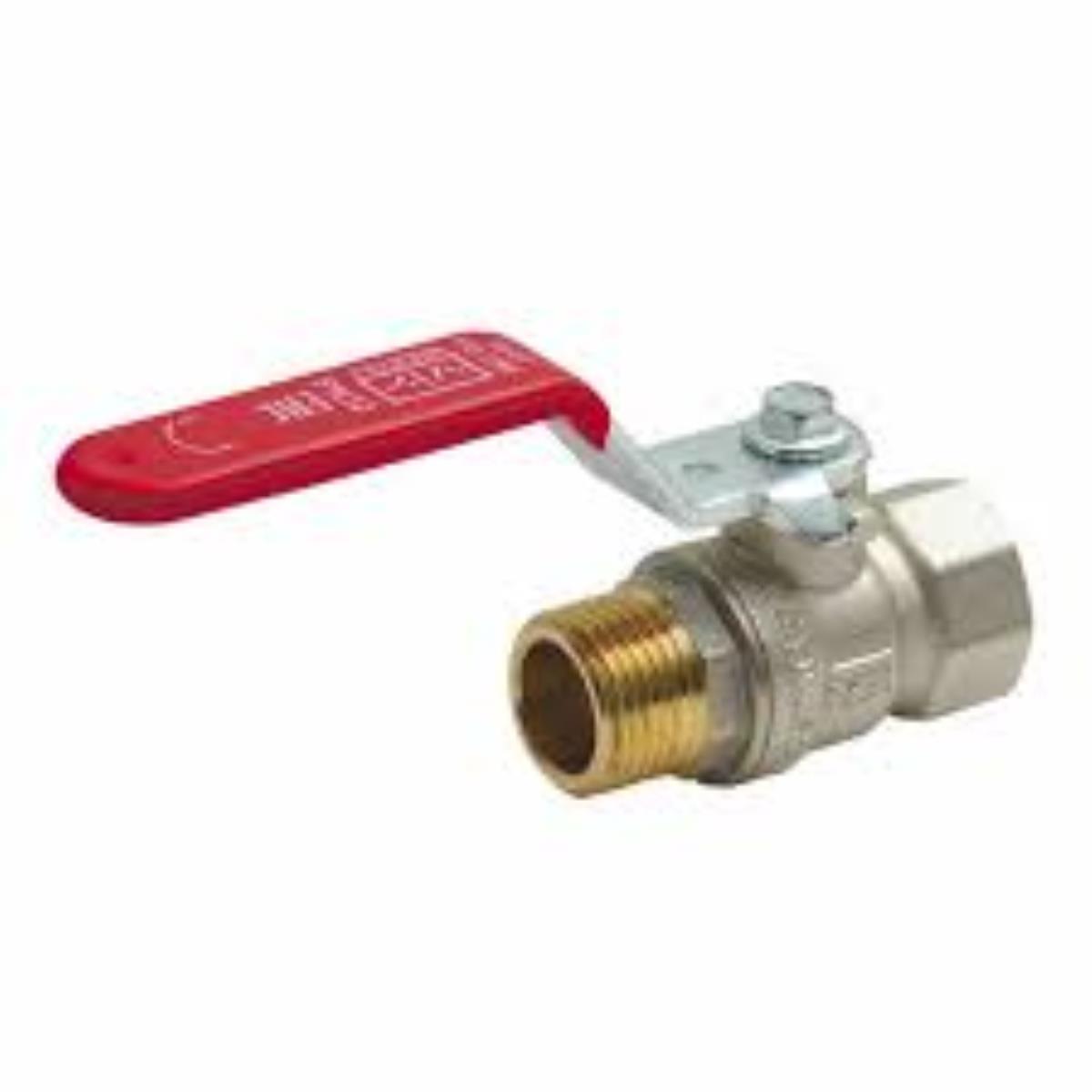

MALE-FEMALE BALL VALVE
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › LOW PRESSURE BRASS BALL VALVES
Download sheet in pdf format
Code: 55
Chromed ball valve on nickel-plated brass body, anti-explosion stem. Internal parts and "yellow" threads.
Seats in PTFE, O-rings in FKM+NBR.
REVERSIBLE HANDLE.
Water operating temperature -0°+130°C PN 32
PN 20 bar maximum for air use.
Chromed ball valve on nickel-plated brass body, anti-explosion stem. Internal parts and "yellow" threads.
Seats in PTFE, O-rings in FKM+NBR.
REVERSIBLE HANDLE.
Water operating temperature -0°+130°C PN 32
PN 20 bar maximum for air use.
Code | thread |
|---|---|
510055001/4 | 1/4" |
510055003/8 | 3/8" |
510055001/2 | 1/2" |
510055003/4 | 3/4" |
5100551 | 1" |
51005511/4 | 1"-1/4 |
51005511/2 | 1"-1/2 |
5100552 | 2" |
