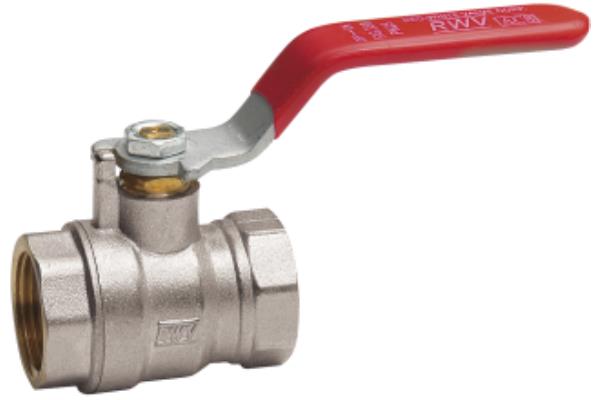

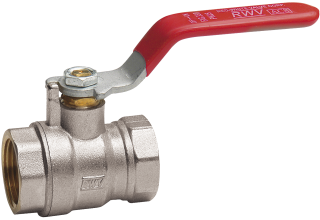

FEMALE-FEMALE LEVER BALL VALVE NPT THREAD
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › LOW PRESSURE BRASS BALL VALVES
Download sheet in pdf format
Code: 50N
Ball valve for every hydraulic and pneumatic system.
Ideal for water, oils, compressed air.
Operating temperature: -20° +150°C in the absence of steam
Female-Female NPT threaded connection
Description:
nut: galvanized steel
lever handle in galvanized Fe P04 steel, covered in red PVC
OR-NBR 70 SH/A gasket
OT CW 614 N nickel-plated operating rod - UNI EN 12165/98
OT CW617 N nickel-plated sleeve
sphere in thick chromed OT CW617N
virgin PTFE seal
body in nickel-plated OT CW617N - UNI EN 12165/98
VITON rod seal
Ball valve for every hydraulic and pneumatic system.
Ideal for water, oils, compressed air.
Operating temperature: -20° +150°C in the absence of steam
Female-Female NPT threaded connection
Description:
nut: galvanized steel
lever handle in galvanized Fe P04 steel, covered in red PVC
OR-NBR 70 SH/A gasket
OT CW 614 N nickel-plated operating rod - UNI EN 12165/98
OT CW617 N nickel-plated sleeve
sphere in thick chromed OT CW617N
virgin PTFE seal
body in nickel-plated OT CW617N - UNI EN 12165/98
VITON rod seal
| Code | Dimensions mm | Pressure bar | Packaging box |
|---|---|---|---|
| 510050N001/4 | 1/4" | 40 | 12 |
| 510050N003/8 | 3/8" | 40 | 12 |
| 510050N001/2 | 1/2" | 40 | 12 |
| 510050N003/4 | 3/4" | 40 | 8 |
| 510050N1 | 1" | 40 | 8 |
| 510050N1_1/4 | 1"-1/4 | 32 | 4 |
| 510050N1_1/2 | 1"-1/2 | 32 | 2 |
| 510050N2 | 2" | 32 | 2 |
| 510050N2_1/2 | 2"-1/2 | 32 | 1 |
| 510050N3 | 3" | 32 | 1 |
| 510050N4 | 4" | 32 | 1 |
