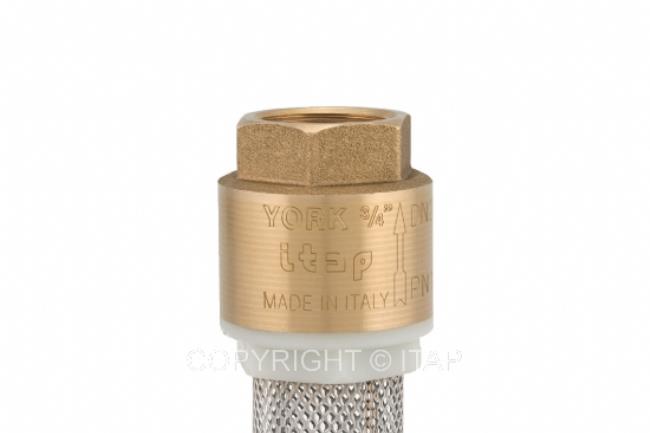

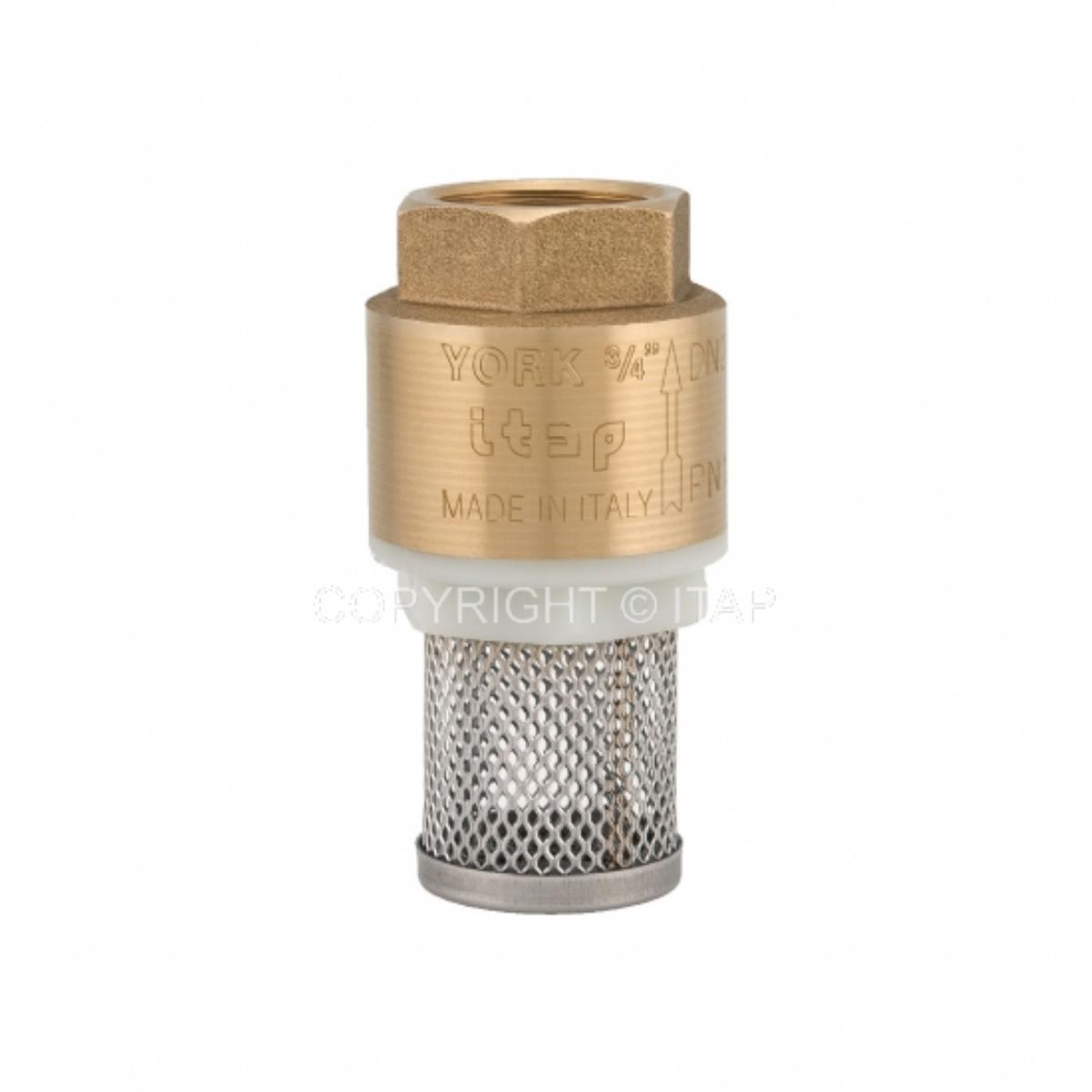

YORK CHECK VALVE
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › BRASS CHECK VALVES
Download sheet in pdf format
Code: 161
YORK type check valve for hydraulic, heating and pneumatic systems, ideal for cold/hot water, various oils and compressed air.
Valve body: CW617N brass.
Polymer plate and pin, NBR 60 sh/A rubber gasket, AISI 302 stainless steel spring.
Temperature: -20° 100° C
Threaded connection: ISO 228
YORK type check valve for hydraulic, heating and pneumatic systems, ideal for cold/hot water, various oils and compressed air.
Valve body: CW617N brass.
Polymer plate and pin, NBR 60 sh/A rubber gasket, AISI 302 stainless steel spring.
Temperature: -20° 100° C
Threaded connection: ISO 228
| Code | Measures | Pressure Cafe | packaging |
|---|---|---|---|
| 510161003/8 | 3/8" | 25 | 10 |
| 510161001/2 | 1/2" | 25 | 10 |
| 510161003/4 | 3/4" | 25 | 8 |
| 5101611 | 1" | 25 | 6 |
| 5101611-1/4 | 1"1/4 | 18 | 4 |
| 5101611-1/2 | 1"1/2 | 18 | 4 |
| 5101612 | 2" | 12 | 2 |
| 5101612_1/2 | 2"1/2 | 12 | 1 |
| 5101613 | 3" | 12 | 1 |
| 5101614 | 4" | 12 | 1 |
