EUROPE CHECK VALVE
ONLINE CATALOGUE › BALL VALVES - GATE VALVES › BRASS CHECK VALVES
Download sheet in pdf format
Code: 160

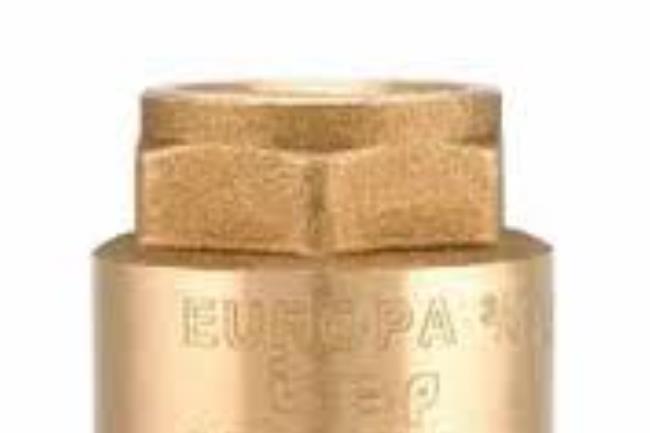

UNI-DIRECTIONAL non-return foot valve, EUROPE check valve
Body in OT CW 617N brass.
AISI304 stainless steel metal sealing plate.
NBR rubber gasket.
CW 614N brass guide pin.
Stainless steel spring - AISI 302.
Threaded connection: ISO 228- DIN259 - BS 2779.
For the passage of non-aggressive agricultural-industrial liquids.
Ideal for hot/cold water, various oils and compressed air, gas.
Operating temperature -20°C +100°C
Can be installed in any direction: VERTICAL, HORIZONTAL, OBLIQUE.

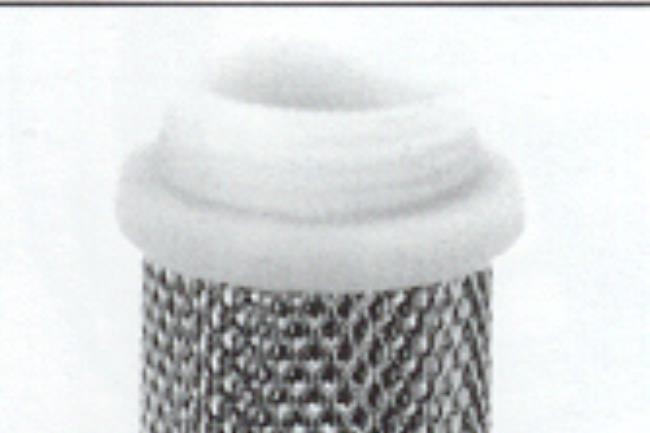

Available with 3/8" - 4" NPT thread with or without steel filter
| Code | Measures | Pressure Cafe | packaging |
|---|---|---|---|
| 510160003/8 | 3/8" | 25 | 8 |
| 510160001/2 | 1/2" | 25 | 8 |
| 510160003/4 | 3/4" | 25 | 6 |
| 5101601 | 1" | 25 | 4 |
| 5101601-1/4 | 1"-1/4 | 18 | 4 |
| 5101601-1/2 | 1"-1/2 | 18 | 2 |
| 5101602 | 2" | 18 | 2 |
| 51016021/2 | 2"1/2 | 12 | 1 |
| 5101603 | 3" | 12 | 1 |
| 5101604 | 4" | 12 | 1 |
