LOW DENSITY POLYETHYLENE - LDPE


Scarica scheda in formato pdf

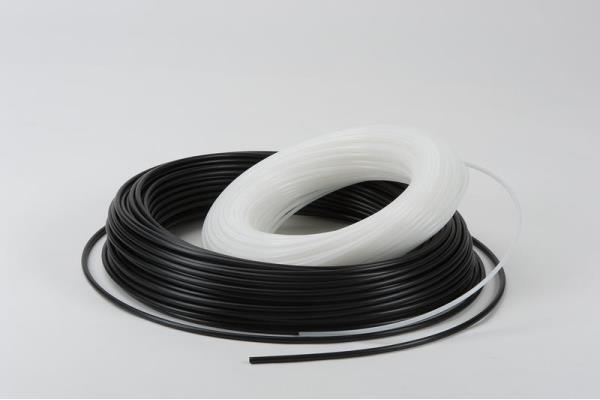

Flexible linear hose for pneumatic rice - LOW DENSITY POLYETHYLENE - flexible and light stabilized.

3:1 SAFETY PESSION

available colors: NEUTRAL - Light blue - BLUE - YELLOW - BLACK - RED - GREEN

package lengths: standard 100m - 50m over Øe 24

On request available in MULTITUBE version with containment sheath.


SIZE
mm		 WEIGHT

g/m		 BENDING RADIUS
mm		 MAX WORKING PRESSURE
T 20° C
 1x2 2.2  10  21
1.5x2.5  2.9  15  15
 1.5x3 4.9 15  21
1.6x3.17 5.5 15  20
2x4  8.8  15  21
2.5x4  7.2 25  14
3x5  11.8  25  15
3.3x6.35  21.7  30 20
3.5x6   17.5 30  16
4x6 14.7 40 12
4x8 35.4 30 21
4.35x6.35 15.8 45 11
5x7 17.7 55 10
5x8 28.8 45 14
6x8 20.6 70 9
6x10 47.2 50 15
6.35x9.52 37.10 60 12
6.5x10 42.6 60 13
7x9 23.6 90 7
7x10 37.6 75 11
8x10 26.5 115 7
8x12 59 75 12
9x12 46.5 105 9
9.52x12.7 52.10 115 9
10x12 32.5 165 5
10x14 70.9 105 10
11x14 55.3 150 7
12x15 59.8 170 7
 12x16 82.7 140 9
12.5x15 50.7 210 5
14x18 94.5 180 7
14x20 150.6 145 11
15x18 73.10 250 5
16x20 106.3 225 7
18x25 222.3 195 10
20X26 203.8 250 8
 21X25 135.9 360 5
22X26 141.8 390 5
25X32 294.7 330 7
26X32 257 390 6
