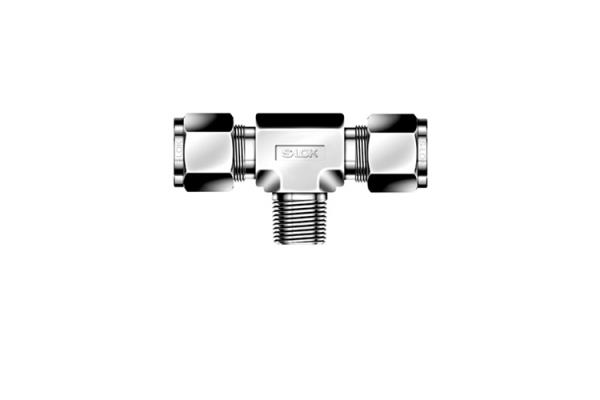

LOK STBM - T maschio centrale conico BSPT - Tubo metrico
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf
Raccordo a T per tubo inox misure metriche con maschio centrale con filettatura BSPT. Confezione 10 pezzi.
| Codice |
diametro
Tubo |
filetto
|
foro interno
raccordo |
|
|
mm
|
BSPT |
mm
|
||
|
STBM-3M-2R
|
3
|
1/8"
|
2.4
|
|
|
STBM-3M-4R
|
3
|
1/4"
|
2.4
|
|
|
STBM-4M-2R
|
4
|
1/8"
|
2.4
|
|
|
STBM-4M-4R
|
4
|
1/4"
|
2.4 | |
|
STBM-6M-2R
|
6
|
1/8"
|
4.8
|
|
|
STBM-6M-4R
|
6
|
1/4"
|
4.8
|
|
|
STBM-6M-6R
|
6
|
3/8"
|
4.8
|
|
|
STBM-4M-8R
|
6
|
1/2"
|
4.8
|
|
|
STBM-8M-2R
|
8
|
1/8"
|
4.8
|
|
|
STBM-8M-4R
|
8
|
1/4"
|
6.4
|
|
|
STBM-8M-6R
|
8
|
3/8"
|
6.4
|
|
|
STBM-8M-8R
|
8
|
1/2"
|
6.4
|
|
|
STBM-10M-2R
|
10
|
1/8"
|
4.8
|
|
|
STBM-10-4R
|
10
|
1/4"
|
7.1
|
|
|
STBM-10M-6R
|
10
|
3/8"
|
7.9
|
|
|
STBM-10M-8R
|
10
|
1/2"
|
7.9
|
|
|
STBM-12M-2R
|
12
|
1/8"
|
4.8
|
|
|
STBM-12M-4R
|
12
|
1/4"
|
7.1
|
|
|
STBM-12M-6R
|
12
|
3/8"
|
9.5
|
|
|
STBM-12M-8R
|
12
|
1/2"
|
9.5
|
|
|
STBM-12M-12R
|
12
|
3/4"
|
9.5
|
|
|
STBM-16M-6R
|
16
|
1/2"
|
11.9
|
|
|
STBM-16M-8R
|
16
|
1/2"
|
11.9
|
|
|
STBM-16M-12R
|
16
|
3/4"
|
12.7
|
|
|
STBM-18M-8R
|
18
|
1/2"
|
11.9
|
|
|
STBM-18M-12R
|
18
|
3/4"
|
15.1
|
|
|
STBM-20M-8R
|
20
|
1/2"
|
11.9
|
|
|
STBM-20M-12R
|
20
|
3/4"
|
15.9
|
|
|
STBM-22M-12R
|
22
|
3/4" |
15.9
|
|
|
STBM-22M-16R
|
22
|
1"
|
18.3
|
|
|
STBM-25M-12R
|
25
|
3/4"
|
15.9
|
|
|
STBM-25M-16R
|
25
|
1"
|
21.8
|
