LOK STR - unione tre vie ridotta in pollici
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf

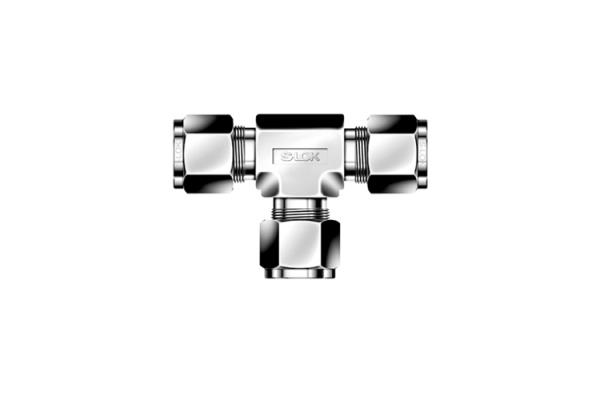

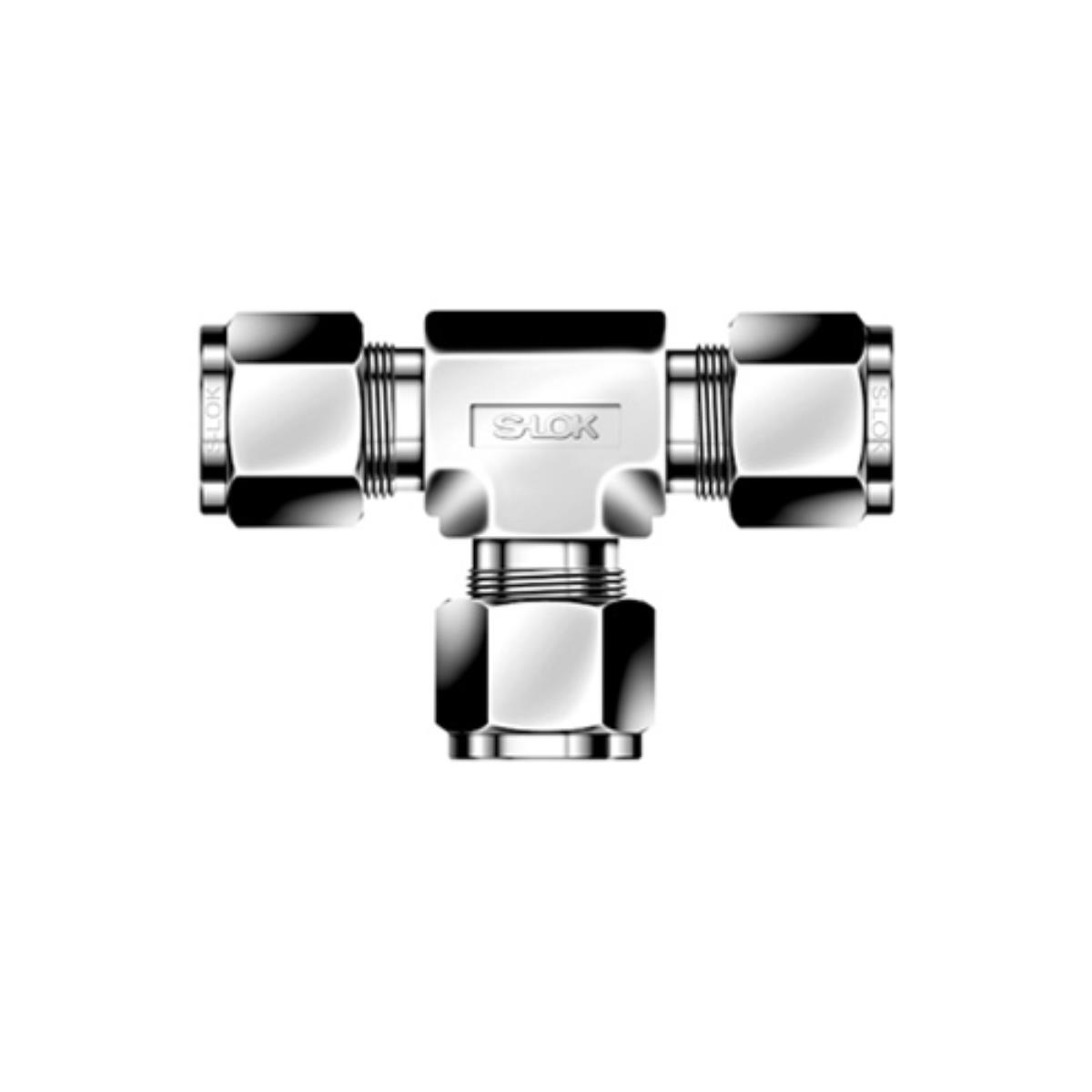

Giunzione a T ridotta centrale o laterale per tubi con diametro esterno in pollici.
Confezione da 10 raccordi.
Confezione da 10 raccordi.
| CODICE | lato | centrale | lato |
| STR-4-2 | 1/4 | 1/4 | 1/8 |
| STR-4-6 | 1/4 | 1/4 | 3/8 |
| STR-4-8-8 | 1/4 | 1/2 | 1/2 |
| STR-6-4-6 | 3/8 | 1/4 | 3/8 |
| STR-6-4 | 3/8 | 3/8 | 1/4 |
| STR-6-8 | 3/8 | 3/8 | 1/2 |
| STR-8-4-6 | 1/2 | 1/4 | 3/8 |
| STR-8-4-8 | 1/2 | 1/4 | 1/2 |
| STR-8-6-6 | 1/2 | 3/8 | 3/8 |
| STR-8-4 | 1/2 | 1/2 | 1/4 |
| STR-8-6 | 1/2 | 1/2 | 3/8 |
| STR-10-6 | 5/8 | 5/8 | 3/8 |
| STR-12-8-12 | 3/4 | 1/2 | 3/4 |
| STR-12-4 | 3/4 | 3/4 | 1/4 |
| STR-12-6 | 3/4 | 3/4 | 3/8 |
| STR-12-8 | 3/4 | 3/4 | 1/2 |
| STR-12-16 | 3/4 | 3/4 | 1 |
| STR-12-20 | 3/4 | 3/4 | 1-1/4 |
| STR-14-8 | 7/8 | 7/9 | 1/2 |
| STR-16-12-12 | 1 | 3/4 | 3/4 |
| STR-16-4 | 1 | 1 | 1/4 |
| STR-16-6 | 1 | 1 | 3/8 |
| STR-16-8 | 1 | 1 | 1/2 |
| STR-16-12 | 1 | 1 | 3/4 |
| STR-20-12-12 | 1-1/4 | 3/4 | 3/4 |
| STR-20-12 | 1-1/4 | 1-1/2 | 3/4 |
| STR-24-20-20 | 1-1/2 | 1-1/4 | 1-1/4 |
| STR-24-8 | 1-1/2 | 1-1/2 | 1/2 |
| STR-24-12 | 1-1/2 | 1-1/2 | 3/4 |
| STR-24-16 | 1-1/2 | 1-1/2 | 1 |
LOK STR - three-way union reduced in inches
