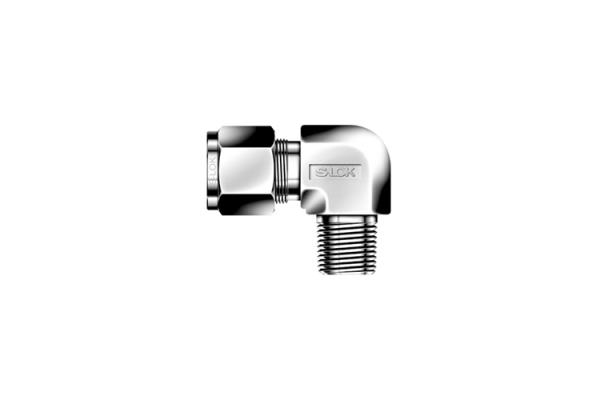

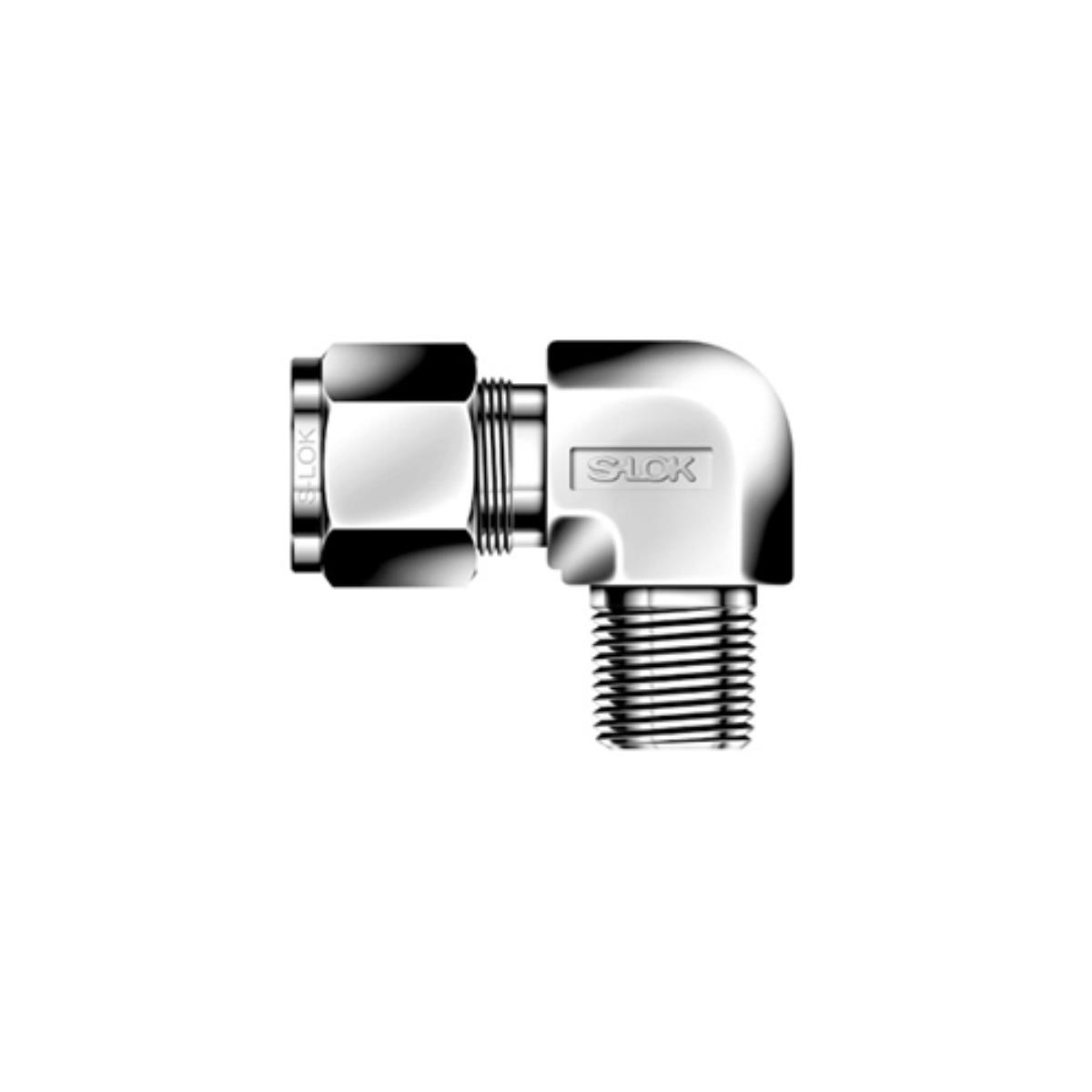

LOK SLM - Per tubo metrico maschio BSPT conico 90°
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf
Raccordo terminale 90° per tubo inox misure in pollici con filettatura ISO-BSPT.
Confezione minima 10 pezzi.
Confezione minima 10 pezzi.
|
Codice
|
diametro
Tubo |
filetto
|
foro interno
raccordo |
|
|
mm
|
BSPT |
mm
|
||
|
SLM-3M-2R
|
3 |
1/8"
|
2.4 | |
|
SLM-3M-4R
|
3 |
1/4"
|
2.4 | |
|
SLM-4M-2R
|
4 |
1/8"
|
2.4 | |
|
SLM-4M-4R
|
4 |
1/4"
|
2.4 | |
|
SLM-6M-2R
|
6
|
1/8"
|
4.8 | |
|
SLM-6M-4R
|
6
|
1/4"
|
4.8 | |
|
SLM-6M-6R
|
6
|
3/8"
|
4.8 | |
|
SLM-6M-8R
|
6
|
1/2"
|
4.8 | |
|
SLM-8M-2R
|
8 |
1/8"
|
4.8 | |
|
SLM-8M-4R
|
8 |
3/4"
|
6.4 | |
|
SLM-8M-6R
|
8 |
3/8"
|
6.4 | |
|
SLM-8M-8R
|
8 |
1/2"
|
6.4 | |
|
SLM-10M-2R
|
10 |
1/2"
|
4.8 | |
|
SLM-10M-4R
|
10 |
1/4"
|
7.1 | |
|
SLM-10M-6R
|
10 |
3/8"
|
7.9 | |
|
SLM-10M-8R
|
10 |
1/2"
|
7.9 | |
|
SLM-12M-2R
|
12 |
1/8"
|
4.8 | |
|
SLM-12M-4R
|
12 |
1/4"
|
7.1 | |
|
SLM-12M-6R
|
12 |
3/8"
|
9.5 | |
|
SLM-12M-8R
|
12 |
1/2"
|
9.5 | |
|
SLM-12M-12R
|
12 |
3/4"
|
9.5 | |
|
SLM-16M-6R
|
16 |
3/8"
|
9.5 | |
|
SLM-16M-8R
|
16
|
1/2"
|
11.9 | |
|
SLM-16M-12R
|
16 |
3/4"
|
12.7 | |
|
SLM-18M-8R
|
18 |
1/2"
|
11.9 | |
|
SLM-18M-12R
|
18 |
3/4"
|
15.1 | |
|
SLM-20M-8R
|
20 |
1/2"
|
11.9 | |
|
SLM-20M-12R
|
20 |
3/4"
|
15.9 | |
|
SLM-22M-12R
|
22 |
3/4"
|
15.9 | |
|
SLM-22M-16R
|
22
|
1"
|
18.3 | |
|
SLM-25M-12R
|
25
|
3/4"
|
15.9 | |
|
SLM-25M-16R
|
25
|
1"
|
21.8 |
