LOK SLM - Per tubo in pollici maschio NPT 90°
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf

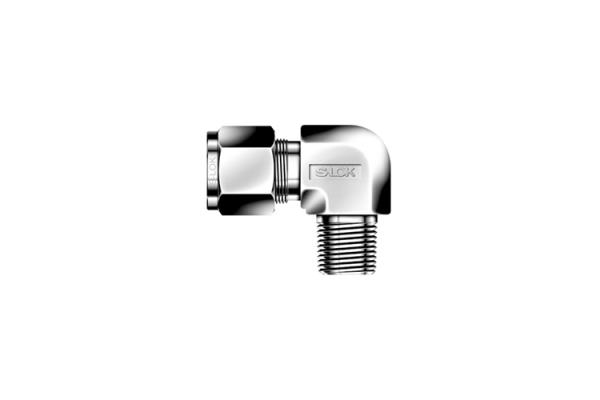

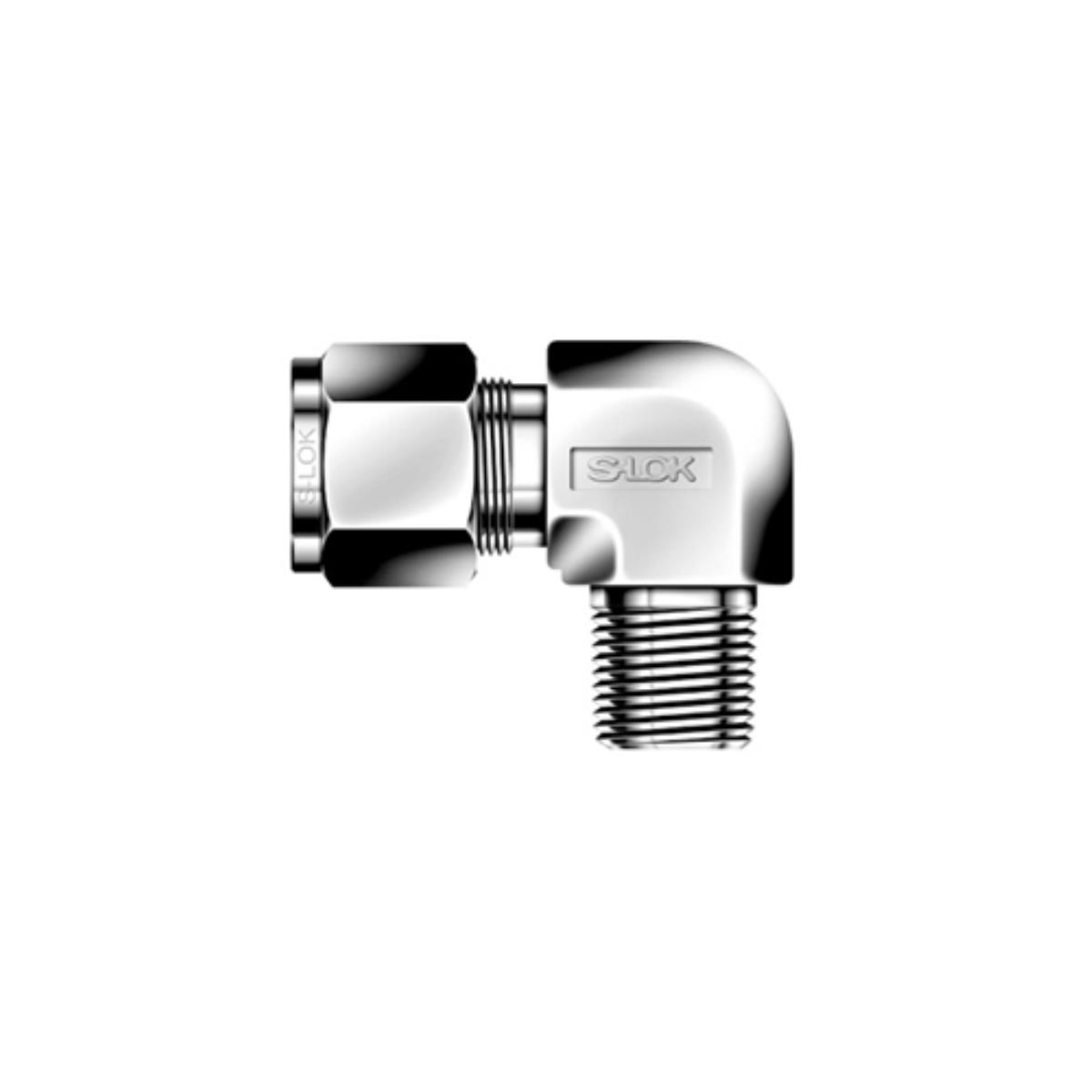

Raccordo terminale 90° per tubo inox misure in pollici con filettatura Americana NPT.
Confezione minima 10 pezzi.
Confezione minima 10 pezzi.
| Codice |
diametro
Tubo |
filetto
|
foro interno
raccordo |
||
|
pollici
|
mm
|
NPT
|
mm
|
||
|
SLM-1-1N
|
1/16"
|
1.59
|
1/16"
|
1.27
|
|
|
SLM-1-2N
|
1/16"
|
1.59
|
1/8"
|
1.27
|
|
|
SLM-2-2N
|
1/8"
|
3.17
|
1/8"
|
2.28
|
|
|
SLM-2-4N
|
1/8"
|
3.17
|
1/4"
|
2.28
|
|
|
SLM-3-2N
|
3/16"
|
4.76
|
1/8"
|
3.04
|
|
|
SLM-3-4N
|
3/16"
|
4.76
|
1/4"
|
3.04
|
|
|
SLM-4-1N
|
1/4"
|
6.35
|
1/16"
|
3.04 | |
|
SLM-4-2N
|
1/4"
|
6.35
|
1/8"
|
4.82
|
|
|
SLM-4-4N
|
1/4"
|
6.35
|
1/4"
|
4.82
|
|
|
SLM-4-6N
|
1/4"
|
6.35
|
3/8"
|
4.82
|
|
|
SLM-4-8N
|
1/4"
|
6.35
|
1/2"
|
4.82
|
|
|
SLM-5-2N
|
5/16"
|
7.93
|
1/8"
|
4.82
|
|
|
SLM-5-4N
|
5/16"
|
7.93
|
1/4"
|
6.35
|
|
|
SLM-5-6N
|
5/16"
|
7.93
|
3/8"
|
6.35
|
|
|
SLM-6-2N
|
3/8"
|
9.52
|
1/8"
|
4.82
|
|
|
SLM-6-4N
|
3/8"
|
9.52
|
1/4"
|
7.11
|
|
|
SLM-6-6N
|
3/8"
|
9.52
|
3/8"
|
7.11
|
|
|
SLM-6-8N
|
3/8"
|
9.52
|
1/2"
|
7.11
|
|
|
SLM-6-12N
|
3/8"
|
9.52
|
3/4"
|
7.11
|
|
|
SLM-8-4N
|
1/2"
|
12,70
|
1/4"
|
7.11
|
|
|
SLM-8-6N
|
1/2"
|
12,70
|
3/8"
|
9.65
|
|
|
SLM-8-8N
|
1/2"
|
12,70
|
1/2"
|
10.41
|
|
|
SLM-8-12N
|
1/2"
|
12,70
|
3/4"
|
10.41
|
|
|
SLM-10-6N
|
5/8"
|
15.87
|
3/8"
|
9.65
|
|
|
SLM-10-8N
|
5/8"
|
15.87
|
1/2"
|
11.93
|
|
|
SLM-10-12N
|
5/8"
|
15.87
|
3/4"
|
12,70
|
|
|
SLM-12-8N
|
3/4"
|
19.05
|
1/2"
|
11.93
|
|
|
SLM-12-12N
|
3/4"
|
19.05
|
3/4"
|
15.74
|
|
|
SLM-14-12N
|
7/8"
|
22.22
|
3/4"
|
15.74
|
|
|
SLM-16-12N
|
1"
|
25,4
|
3/4"
|
15.74
|
|
|
SLM-16-16N
|
1"
|
25,4
|
1"
|
22.35
|
|
|
SLM-20-20N
|
1"1 / 4
|
31.75
|
1"1 / 4
|
27.68
|
|
|
SLM-24-24N
|
1"1 / 2
|
38.10
|
1"1 / 2
|
34.03
|
|
|
SLM-32-32N
|
2"
|
50,80
|
2"
|
45.97
|
|
LOK SLM - For NPT 90 male inch pipe
