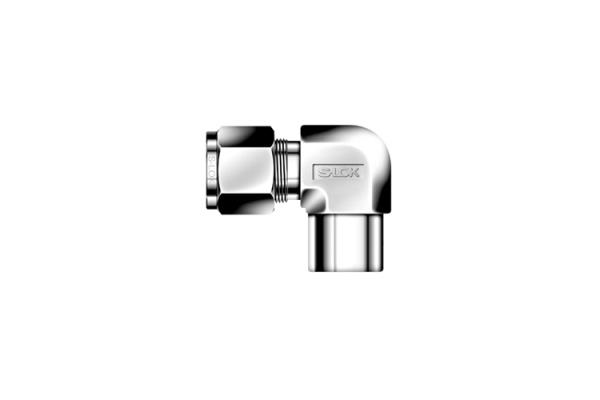

LOK SLF - Gomito femmina NPT - Tubo in pollici
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf
Raccordo di collegamento per tubo inox misure in pollici con filettatura femmina Americana NPT. Confezione minima 10 pezzi.
|
Codice
|
diametro
Tubo |
filetto
|
foro interno
raccordo |
||
|
pollici
|
mm
|
NPT
|
mm
|
||
|
SLF-2-2N
|
1/8"
|
3.17
|
1/8"
|
2.28
|
|
|
SLF-2-4N
|
1/8"
|
3.17
|
1/4"
|
2.28
|
|
|
SLF-3-2N
|
3/16"
|
4.76
|
1/8"
|
3.04
|
|
|
SLF-4-2N
|
1/4"
|
6.35
|
1/8"
|
4.82
|
|
|
SLF-4-4N
|
1/4"
|
6.35
|
1/4"
|
4.82
|
|
|
SLF-4-6N
|
1/4"
|
6.35
|
3/8"
|
4.82
|
|
|
SLF-4-8N
|
1/4"
|
6.35
|
1/2"
|
4.82
|
|
|
SLF-5-2N
|
5/16"
|
7.93
|
1/8"
|
4.82
|
|
|
SLF-5-4N
|
5/16"
|
7.93
|
1/4"
|
6.35
|
|
|
SLF-6-2N
|
3/8"
|
9.52
|
1/8"
|
6.35
|
|
|
SLF-6-4N
|
3/8"
|
9.52
|
1/4"
|
7.11
|
|
|
SLF-6-6N
|
3/8"
|
9.52
|
3/8"
|
7.11
|
|
|
SLF-6-8N
|
3/8"
|
9.52
|
1/2"
|
7.11
|
|
|
SLF-8-4N
|
1/2"
|
12,70
|
1/4"
|
7.11
|
|
|
SLF-8-6N
|
1/2"
|
12,70
|
3/8"
|
10.41
|
|
|
SLF-8-8N
|
1/2"
|
12,70
|
1/2"
|
10.41
|
|
|
SLF-8-12N
|
1/2"
|
12,70
|
3/4"
|
10.41
|
|
|
SLF-10-6N
|
5/8"
|
15.87
|
3/8"
|
9.65
|
|
|
SLF-10-8N
|
5/8"
|
15.87
|
1/2"
|
11.93
|
|
|
SLF-12-8N
|
3/4"
|
19.05
|
1/2"
|
11.93
|
|
|
SLF-12-12N
|
3/4"
|
19.05
|
3/4"
|
15.74
|
|
|
SLF-14-12N
|
7/8"
|
22.22
|
3/4"
|
15.74
|
|
|
SLF-16-12N
|
1"
|
25,4
|
3/4"
|
15.74
|
|
|
SLF-16-16N
|
1"
|
25,4
|
1"
|
22.35
|
|
