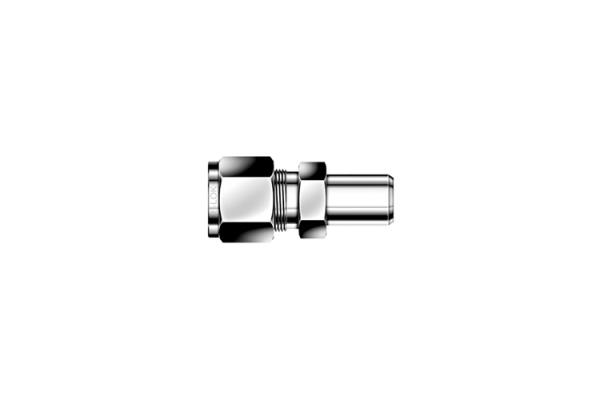

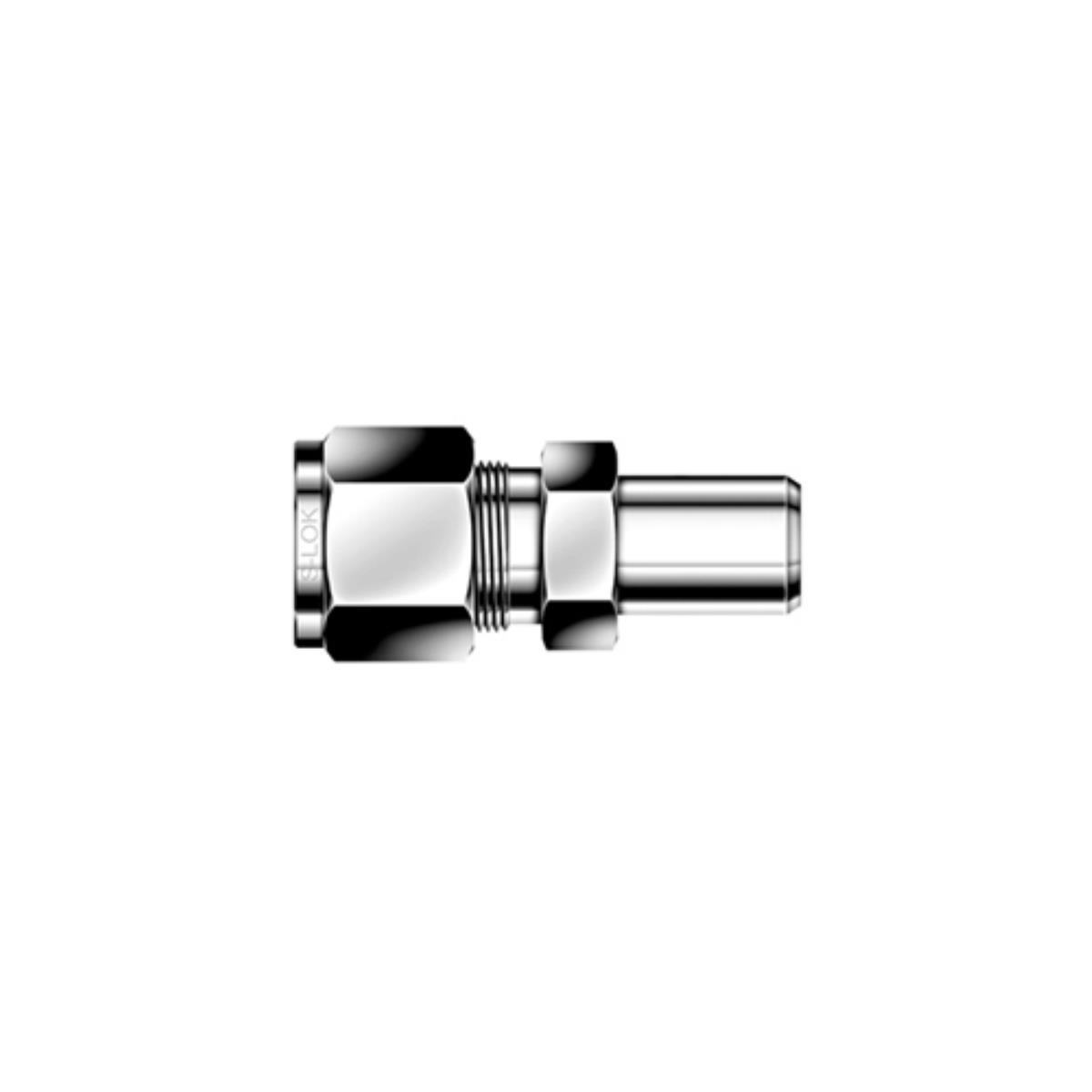

LOK SCW - Connettore con codolo a saldare
CATALOGO ON-LINE › TUBI E RACCORDI PER IDROGENO E CELLE COMBUSTIBILI › CONNESSIONI INOX DI SICUREZZA › RACCORDI LOK DOPPIA OGIVA
Scarica scheda in formato pdf
TABELLA SISTEMA FRAZIONALE
| Codice |
diamentro esterno tubo
|
codolo a saldare
|
||
|
pollici
|
mm
|
NPS |
mm
|
|
|
SCW-2-2P
|
1/8"
|
3.17 | 1/8" | 10,29 |
|
SCW-3-2P
|
3/16"
|
4.76 | 1/8" | 10,29 |
|
SCW-4-2P
|
1/4" | 6.35 | 1/8" | 10,29 |
|
SCW-4-4P
|
1/4" | 6.35 | 1/4" | 13,72 |
| SCW-5-2P | 5/16" | 7.93 | 1/8" | 10,29 |
| SCW-5-4P | 5/16" | 7.93 | 1/4" | 13,72 |
| SCW-6-4P | 3/8" | 9.52 | 1/4" | 13,72 |
| SCW-6-6P | 3/8" | 9.52 | 3/8" | 17,15 |
| SCW-6-8P | 3/8" | 9.52 | 1/2" | 21,34 |
| SCW-8-6P | 1/2" | 12.70 | 3/8" | 17,15 |
| SCW-8-8P | 1/2" | 12.70 | 1/2" | 21,34 |
| SCW-8-12P | 1/2" | 12.70 | 3/4" | 26,67 |
| SCW-10-8P | 5/8" | 15.87 | 1/2" | 21,34 |
| SCW-12-12P | 3/4" | 19.05 | 3/4" | 26,67 |
| SCW-16-16P | 1" | 25.40 | 1" | 33,40 |
| SCW-20-20P | 1"-1/4 | 31.75 | 1"-1/4 | 42,16 |
| SCW-24-24P | 1"-1/2 | 38.10 | 1"-1/2 | 48,26 |
| SCW-32-32P | 2" | 50.80 | 2" | 60,33 |
TABELLA SISTEMA METRICO
| Codice |
diamentro esterno tubo
|
codolo a saldare | |
|
pollici
|
NPS |
mm
|
|
|
SCW-3M-2P
|
3 | 1/8" | 10,29 |
|
SCW-4M-2P
|
4 | 1/8" | 10,29 |
|
SCW-6M-2P
|
6 | 1/8" | 10,29 |
|
SCW-6M-4P
|
6 | 1/4" | 13,72 |
| SCW-8M-2P | 8 | 1/8" | 10,29 |
| SCW-8M-4P | 8 | 1/4" | 13,72 |
| SCW-8M-8P | 8 | 1/2" | 21,34 |
| SCW-10M-4P | 10 | 1/4" | 13,72 |
| SCW-10M-6P | 10 | 3/8" | 17,15 |
| SCW-10M-8P | 10 | 1/2" | 21,34 |
| SCW-12M-4P | 12 | 1/4" | 13,72 |
| SCW-12M-6P | 12 | 3/8" | 17,15 |
| SCW-12M-8P | 12 | 1/2" | 21,34 |
| SCW-14M-6P | 14 | 3/8" | 17,15 |
| SCW-15M-8P | 15 | 1/2" | 21,34 |
| SCW-16M-8P | 16 | 1/2" | 21,34 |
| SCW-18M-8P | 18 | 1/2" | 21,34 |
| SCW-32M-20P | 32 | 1"-1/4 | 42,16 |
| SCW-38M-24P | 38 | 1"-1/2 | 60,33 |
