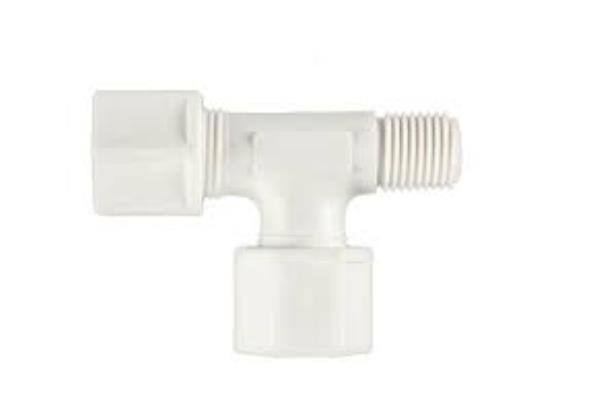

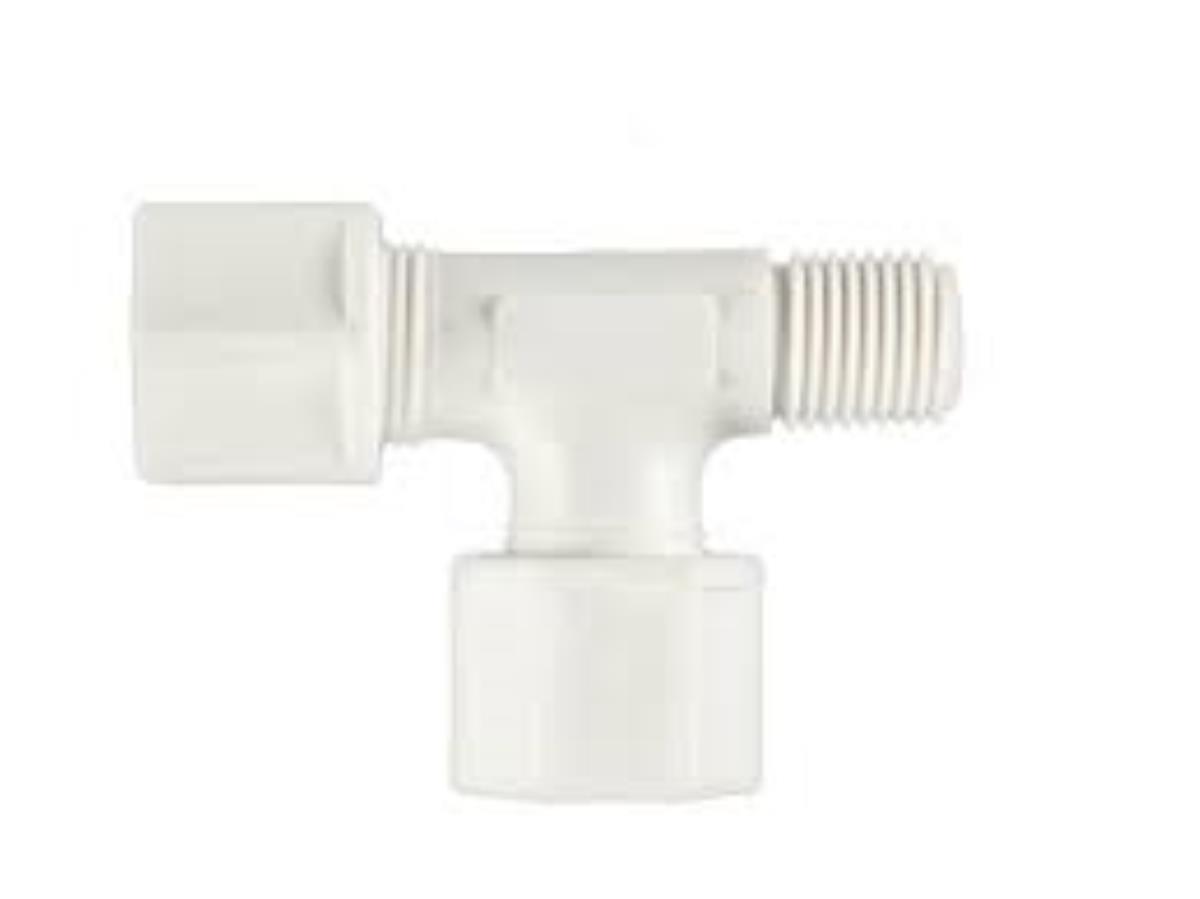

RACCORDO JACO UNIONE TEE MASCHIO LATERALE
CATALOGO ON-LINE › RACCORDI PER L'INDUSTRIA CHIMICA E ALIMENTARE › RACCORDI JACO
Scarica scheda in formato pdf
| VERSIONE IN POLIPROPILENE | DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_PP_TL_04_04_02 | 1/4"-1/4"-1/8" |
| 39JACO_PP_TL_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_PP_TL_05_05_04 | 5/16"-5/16"-1/4" |
| 39JACO_PP_TL_06_06_04 | 3/8"-3/8"-1/4" |
| 39JACO_PP_TL_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_PP_TL_08_08_06 | 1/2"-1/2"-3/8" |
| 39JACO_PP_TL_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_PP_TL_10_10_08 | 5/8"-5/8"-1/2" |
| 39JACO_PP_TL_12_12_08 | 3/4"-3/4"-1/2" |
| 39JACO_PP_TL_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_PP_TL_14_14_12 | 7/8"-7/8"-3/4" |
| VERSIONE IN KYNAR-PVDF | DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_KY_TL_04_04_02 | 1/4"-1/4"-1/8" |
| 39JACO_KY_TL_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_KY_TL_05_05_04 | 5/16"-5/16"-1/4" |
| 39JACO_KY_TL_06_06_04 | 3/8"-3/8"-1/4" |
| 39JACO_KY_TL_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_KY_TL_08_08_06 | 1/2"-1/2"-3/8" |
| 39JACO_KY_TL_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_KY_TL_10_10_08 | 5/8"-5/8"-1/2" |
| 39JACO_KY_TL_12_12_08 | 3/4"-3/4"-1/2" |
| 39JACO_KY_TL_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_KY_TL_14_14_12 | 7/8"-7/8"-3/4" |
| VERSIONE IN NYLON | DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_NY_TL_04_04_02 | 1/4"-1/4"-1/8" |
| 39JACO_NY_TL_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_NY_TL_05_05_04 | 5/16"-5/16"-1/4" |
| 39JACO_NY_TL_06_06_04 | 3/8"-3/8"-1/4" |
| 39JACO_NY_TL_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_NY_TL_08_08_06 | 1/2"-1/2"-3/8" |
| 39JACO_NY_TL_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_NY_TL_10_10_08 | 5/8"-5/8"-1/2" |
| 39JACO_NY_TL_12_12_08 | 3/4"-3/4"-1/2" |
| 39JACO_NY_TL_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_NY_TL_14_14_12 | 7/8"-7/8"-3/4" |
| VERSIONE IN POLIPROPILENE |
PER TUBO METRICO MASCHIO LATERALE BSP |
| 39JACO_PP_TL_M6_M6_02 | 6-6-1/8" |
| 39JACO_PP_TL_M6_M6_04 | 6-6-1/4" |
| 39JACO_PP_TL_M8_M8_04 | 8-8-1/4" |
| 39JACO_PP_TL_M10_M10_04 | 10-10-1/4" |
| 39JACO_PP_TL_M10_M10_06 | 10-10-3/8" |
| 39JACO_PP_TL_M12_M12_06 | 12-12-3/8" |
| 39JACO_PP_TL_M12_M12_08 | 12-12-1/2" |
| 39JACO_PP_TL_M16_M16_08 | 16-12-1/2" |
| 39JACO_PP_TL_M19_M19_08 | 19-19-1/2" |
| 39JACO_PP_TL_M19_M19_12 | 19-19-3/4" |
| 39JACO_PP_TL_M22_M22_12 | 22-22-3/4" |
| VERSIONE IN KYNAR-PVDF |
PER TUBO METRICO MASCHIO LATERALE BSP |
| 39JACO_KY_TL_M6_M6_02 | 6-6-1/8" |
| 39JACO_KY_TL_M6_M6_04 | 6-6-1/4" |
| 39JACO_KY_TL_M8_M8_04 | 8-8-1/4" |
| 39JACO_KY_TL_M10_M10_04 | 10-10-1/4" |
| 39JACO_KY_TL_M10_M10_06 | 10-10-3/8" |
| 39JACO_KY_TL_M12_M12_06 | 12-12-3/8" |
| 39JACO_KY_TL_M12_M12_08 | 12-12-1/2" |
| 39JACO_KY_TL_M16_M16_08 | 16-12-1/2" |
| 39JACO_KY_TL_M19_M19_08 | 19-19-1/2" |
| 39JACO_KY_TL_M19_M19_12 | 19-19-3/4" |
| 39JACO_KY_TL_M22_M22_12 | 22-22-3/4" |
| VERSIONE IN NYLON |
PER TUBO METRICO MASCHIO LATERALE BSP |
| 39JACO_NY_TL_M6_M6_02 | 6-6-1/8" |
| 39JACO_NY_TL_M6_M6_04 | 6-6-1/4" |
| 39JACO_NY_TL_M8_M8_04 | 8-8-1/4" |
| 39JACO_NY_TL_M10_M10_04 | 10-10-1/4" |
| 39JACO_NY_TL_M10_M10_06 | 10-10-3/8" |
| 39JACO_NY_TL_M12_M12_06 | 12-12-3/8" |
| 39JACO_NY_TL_M12_M12_08 | 12-12-1/2" |
| 39JACO_NY_TL_M16_M16_08 | 16-12-1/2" |
| 39JACO_NY_TL_M19_M19_08 | 19-19-1/2" |
| 39JACO_NY_TL_M19_M19_12 | 19-19-3/4" |
| 39JACO_NY_TL_M22_M22_12 | 22-22-3/4" |
JACO SIDE MALE TEE UNION FITTING
