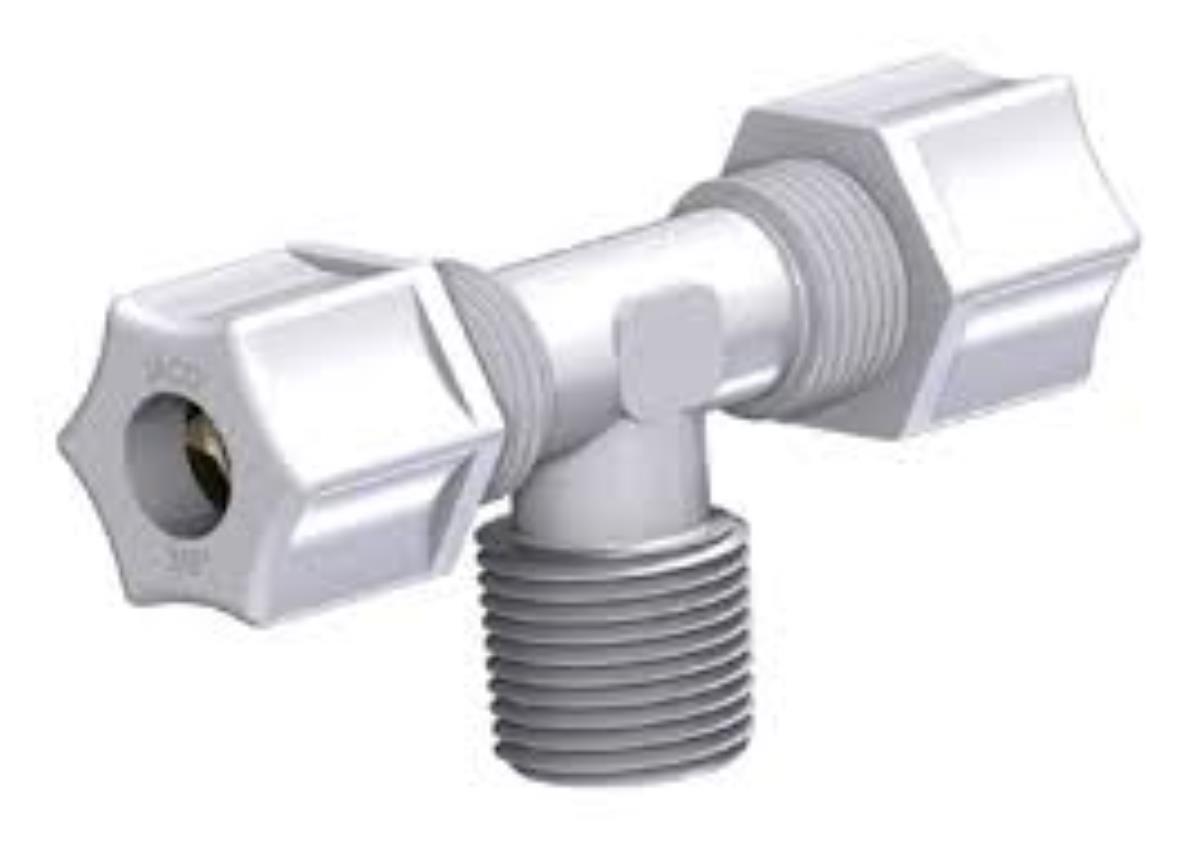

RACCORDO JACO UNIONE TEE MASCHIO CENTRALE
CATALOGO ON-LINE › RACCORDI PER L'INDUSTRIA CHIMICA E ALIMENTARE › RACCORDI JACO
Scarica scheda in formato pdf
| VERSIONE IN POLIPROPILENE |
DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_PP_TC_04_02_04 | 1/4"-1/8"-1/4" |
| 39JACO_PP_TC_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_PP_TC_05_04_05 | 5/16"-1/4"-5/16" |
| 39JACO_PP_TC_06_04_06 | 3/8"-1/4"-3/8" |
| 39JACO_PP_TC_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_PP_TC_08_06_08 | 1/2"-3/8"-1/2" |
| 39JACO_PP_TC_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_PP_TC_10_08_10 | 5/8"-1/2"-5/8" |
| 39JACO_PP_TC_12_08_12 | 3/4"-1/2"-3/4" |
| 39JACO_PP_TC_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_PP_TC_14_12_14 | 7/8"-3/4"-7/8" |
| VERSIONE IN KYNAR-PVDF |
DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_KY_TC_04_02_04 | 1/4"-1/8"-1/4" |
| 39JACO_KY_TC_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_KY_TC_05_04_05 | 5/16"-1/4"-5/16" |
| 39JACO_KY_TC_06_04_06 | 3/8"-1/4"-3/8" |
| 39JACO_KY_TC_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_KY_TC_08_06_08 | 1/2"-3/8"-1/2" |
| 39JACO_KY_TC_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_KY_TC_10_08_10 | 5/8"-1/2"-5/8" |
| 39JACO_KY_TC_12_08_12 | 3/4"-1/2"-3/4" |
| 39JACO_KY_TC_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_KY_TC_14_12_14 | 7/8"-3/4"-7/8" |
| VERSIONE IN NYLON |
DIAMETRO ESTERNO TUBO IN POLLICI |
| 39JACO_NY_TC_04_02_04 | 1/4"-1/8"-1/4" |
| 39JACO_NY_TC_04_04_04 | 1/4"-1/4"-1/4" |
| 39JACO_NY_TC_05_04_05 | 5/16"-1/4"-5/16" |
| 39JACO_NY_TC_06_04_06 | 3/8"-1/4"-3/8" |
| 39JACO_NY_TC_06_06_06 | 3/8"-3/8"-3/8" |
| 39JACO_NY_TC_08_06_08 | 1/2"-3/8"-1/2" |
| 39JACO_NY_TC_08_08_08 | 1/2"-1/2"-1/2" |
| 39JACO_NY_TC_10_08_10 | 5/8"-1/2"-5/8" |
| 39JACO_NY_TC_12_08_12 | 3/4"-1/2"-3/4" |
| 39JACO_NY_TC_12_12_12 | 3/4"-3/4"-3/4" |
| 39JACO_NY_TC_14_12_14 | 7/8"-3/4"-7/8" |
| VERSIONE IN POLIPROPILENE |
PER TUBO METRICO MASCHIO CENTRALE BSP |
| 39JACO_PP_TC_M6_02_M6 | 6-1/8"-6 |
| 39JACO_PP_TC_M6_04_M6 | 6-1/4"-6 |
| 39JACO_PP_TC_M8_04_M8 | 8-1/4"-8 |
| 39JACO_PP_TC_M10_04_M10 | 10-1/4"-10 |
| 39JACO_PP_TC_M10_06_M10 | 10-3/8"-10 |
| 39JACO_PP_TC_M12_06_M12 | 12-3/8"-12 |
| 39JACO_PP_TC_M12_08_M12 | 12-1/2"-12 |
| 39JACO_PP_TC_M16_08_M16 | 16-1/2"-12 |
| 39JACO_PP_TC_M19_08_M19 | 19-1/2"-19 |
| 39JACO_PP_TC_M19_12_M19 | 19-3/4"-19 |
| 39JACO_PP_TC_M22_12_M22 | 22-3/4"-22 |
| VERSIONE IN KYNAR-PVDF |
PER TUBO METRICO MASCHIO CENTRALE BSP |
| 39JACO_KY_TC_M6_02_M6 | 6-1/8"-6 |
| 39JACO_KY_TC_M6_04_M6 | 6-1/4"-6 |
| 39JACO_KY_TC_M8_04_M8 | 8-1/4"-8 |
| 39JACO_KY_TC_M10_04_M10 | 10-1/4"-10 |
| 39JACO_KY_TC_M10_06_M10 | 10-3/8"-10 |
| 39JACO_KY_TC_M12_06_M12 | 12-3/8"-12 |
| 39JACO_KY_TC_M12_08_M12 | 12-1/2"-12 |
| 39JACO_KY_TC_M16_08_M16 | 16-1/2"-12 |
| 39JACO_KY_TC_M19_08_M19 | 19-1/2"-19 |
| 39JACO_KY_TC_M19_12_M19 | 19-3/4"-19 |
| 39JACO_KY_TC_M22_12_M22 | 22-3/4"-22 |
| VERSIONE IN NYLON |
PER TUBO METRICO MASCHIO CENTRALE BSP |
| 39JACO_NY_TC_M6_02_M6 | 6-1/8"-6 |
| 39JACO_NY_TC_M6_04_M6 | 6-1/4"-6 |
| 39JACO_NY_TC_M8_04_M8 | 8-1/4"-8 |
| 39JACO_NY_TC_M10_04_M10 | 10-1/4"-10 |
| 39JACO_NY_TC_M10_06_M10 | 10-3/8"-10 |
| 39JACO_NY_TC_M12_06_M12 | 12-3/8"-12 |
| 39JACO_NY_TC_M12_08_M12 | 12-1/2"-12 |
| 39JACO_NY_TC_M16_08_M16 | 16-1/2"-12 |
| 39JACO_NY_TC_M19_08_M19 | 19-1/2"-19 |
| 39JACO_NY_TC_M19_12_M19 | 19-3/4"-19 |
| 39JACO_PP_TC_M22_12_M22 | 22-3/4"-22 |
JACO CENTRAL MALE TEE UNION FITTING
