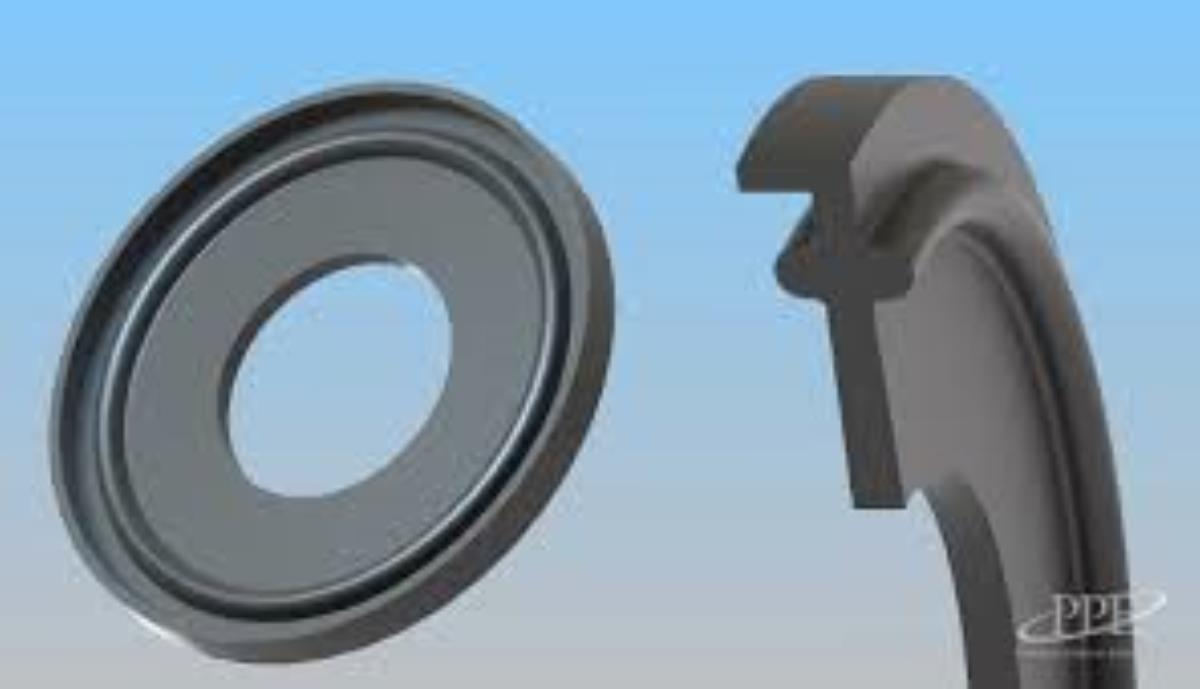

GUARNIZIONI CON LABBRO PER RACCORDI TRI CLAMP
CATALOGO ON-LINE › RACCORDI PER L'INDUSTRIA CHIMICA E ALIMENTARE › RACCORDI CLAMP INOX › RACCORDI CLAMP INOX BS 4825
Scarica scheda in formato pdf
MATERIALI DISPONIBILI: SILICONE - GOMMA EPDM - GOMMA NBR
| Temperature di utilizzo in °C | |||
| minime | massime | COLORE | |
| SILICONE (VMQ) | -40 | +200 | BIANCO |
| EPDM | -40 | +150 | NERO |
| NBR | -30 | +100 | NERO |
| BS4825 | 1/2" | 3/4" | 1" | 1"1/2 | 2" | 2"1/2 | 3" | 4" | 6" | 8" | 10" | 12" | |||

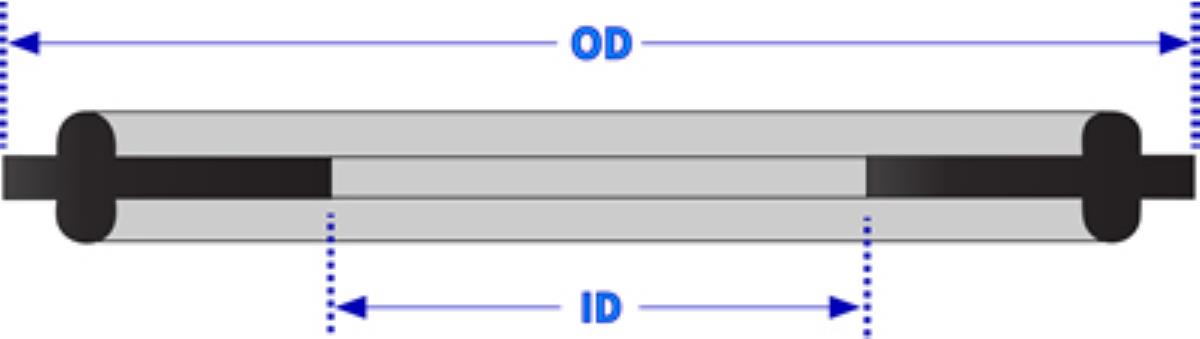

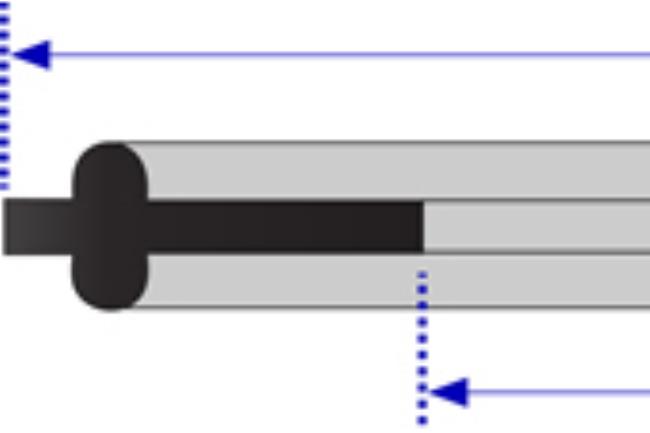

| OD | 22 | 22 | 50.5 | 50.5 | 64 | 77.5 | 91 | 119 | 166.8 | 217.5 | 268.5 | 319.3 | |||
| ID | 9.45 | 15.7 | 22.2 | 34.9 | 47.6 | 60.3 | 73 | 97.6 | 146.8 | 197.6 | 247.2 | 298 | |||
| ISO2852 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| OD | 34 | 34.0 | 34 | 50 | 50.5 | 50.5 | 64 | 77.5 | 91 | 106 | 130 | 155 | 183 | 233.5 | 319.3 |
| ID | 10.30 | 10 | 18.1 | 23.7 | 30.5 | 39.2 | 45.1 | 56.3 | 73 | 84.9 | 109..1 | 133.7 | 162.3 | 211.1 | 266.3 |
| DIN 32676 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 100 | 125 | 150 | 200 | 250 |
| OD | 34 | 34.0 | 34 | 50.5 | 50.5 | 50.5 | 64 | 91 | 106 | 119 | 119 | 155 | 183 | 233.5 | 268.5 |
| ID | 9 | 15 | 19 | 25 | 31 | 37 | 49 | 66 | 81 | 97.6 | 104 | 125 | 150 | 200 | 247.2 |
SEALS WITH LIP FOR CLAMP 3A - BS 4825 FOR ASTM A270 PIPE
