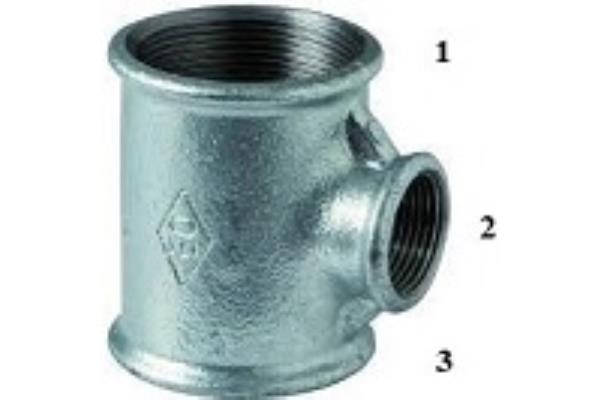

TI RIDOTTA in ghisa malleabile
CATALOGO ON-LINE › RACCORDI PER MANUTENZIONE AGRICOLO-INDUSTRIALE › RACCORDI FILETTATI IN GHISA MALLEABILE EN10242
Scarica scheda in formato pdf
Codice: GS130R
| 1 | 2 | 3 | 1cod. NERI |
cod. ZINCATI |
conf. |
| 3/8" | 1/4" | 3/8" | 13001212 | 13005212 | 10 |
| 3/8" | 1/2" | 3/8" | 13001232 | 13005232 | 10 |
| 3/8" | 3/4" | 3/8" | 13001242 | 13005242 | 10 |
| 1/2" | 1/4" | 1/2" | 13001313 | 13005313 | 10 |
| 1/2" | 3/8" | 3/8" | 13001322 | 13005322 | 10 |
| 1/2" | 3/8" | 1/2" | 13001323 | 13005323 | 10 |
| 1/2" | 1/2" | 3/8" | 13001332 | 13005332 | 10 |
| 1/2" | 3/4" | 3/8" | 13001343 | 13005343 | 10 |
| 1/2" | 3/4" | 1/2" | 13001343 | 13005343 | 10 |
| 1/2" | 1" | 1/2" | 13001353 | 13005353 | 10 |
| 3/4" | 1/4" | 3/4" | 13001414 | 13005414 | 10 |
| 3/4" | 3/8" | 1/2" | 13001423 | 13005423 | 10 |
| 3/4" | 3/8" | 3/4" | 13001424 | 13005424 | 10 |
| 3/4" | 1/2" | 3/8" | 13001432 | 13005432 | 10 |
| 3/4" | 1/2" | 1/2" | 13001433 | 13005433 | 10 |
| 3/4" | 1/2" | 3/4" | 13001434 | 13005434 | 10 |
| 3/4" | 3/4" | 3/8" | 13001442 | 13005442 | 10 |
| 3/4" | 3/4" | 1/2" | 13001443 | 13005443 | 10 |
| 3/4" | 1" | 1/2" | 13001453 | 13005453 | 10 |
| 3/4" | 1" | 3/4" | 13001454 | 13005454 | 10 |
| 3/4" | 1"1/4 | 3/4" | 13001464 | 13005464 | 1 |
| 1" | 1/4" | 1" | 13001515 | 13005515 | 10 |
| 1" | 3/8" | 3/4" | 13001524 | 13005524 | 10 |
| 1" | 3/8" | 1" | 13001525 | 13005525 | 10 |
| 1" | 1/2" | 1/2" | 13001533 | 13005533 | 10 |
| 1" | 1/2" | 3/4" | 13001534 | 13005534 | 10 |
| 1" | 1/2" | 1" | 13001535 | 13005535 | 10 |
| 1" | 3/4" | 1/2" | 13001543 | 13005543 | 10 |
| 1" | 3/4" | 3/4" | 13001544 | 13005544 | 10 |
| 1" | 3/4" | 1" | 13001545 | 13005545 | 10 |
| 1" | 1" | 3/8" | 13001552 | 13005552 | 10 |
| 1" | 1" | 1/2" | 13001553 | 13005553 | 10 |
| 1" | 1" | 3/4" | 13001554 | 13005554 | 10 |
| 1" | 1"1/4 | 3/4" | 13001564 | 13005564 | 1 |
| 1" | 1"1/4 | 1" | 13001565 | 13005565 | 1 |
| 1" | 1"1/2 | 1" | 13001575 | 13005575 | 1 |
| 1"1/4 | 3/8" | 1"1/4 | 13001626 | 13005626 | 1 |
| 1"1/4 | 1/2" | 1" | 13001635 | 13005635 | 1 |
| 1"1/4 | 1/2" | 1"1/4 | 13001636 | 13005636 | 1 |
| 1"1/4 | 3/4" | 3/4" | 13001644 | 13005644 | 1 |
| 1"1/4 | 3/4" | 1" | 13001645 | 13005645 | 1 |
| 1"1/4 | 3/4" | 1"1/4 | 13001646 | 13005646 | 1 |
| 1"1/4 | 1" | 3/8" | 13001652 | 13005652 | 1 |
| 1"1/4 | 1" | 1/2" | 13001653 | 13005653 | 1 |
| 1"1/4 | 1" | 3/4" | 13001654 | 13005654 | 1 |
| 1"1/4 | 1" | 1" | 13001655 | 13005655 | 1 |
| 1"1/4 | 1" | 1"1/4 | 13001656 | 13005656 | 1 |
| 1"1/4 | 1"1/4 | 1/2" | 13001663 | 13005663 | 1 |
| 1"1/4 | 1"1/4 | 3/4" | 13001664 | 13005664 | 1 |
| 1"1/4 | 1"1/4 | 1" | 13001665 | 13005665 | 1 |
| 1"1/4 | 1"1/2 | 1" | 13001675 | 13005675 | 1 |
| 1"1/4 | 1"1/2 | 1"1/4 | 13001676 | 13005676 | 1 |
| 1"1/4 | 2" | 1"1/4 | 13001686 | 13005686 | 1 |
| 1"1/2 | 3/8" | 1"1/2 | 13001727 | 13005727 | 1 |
| 1"1/2 | 1/2" | 1"1/4 | 13001736 | 13005736 | 1 |
| 1"1/2 | 1/2" | 1"1/2 | 13001737 | 13005737 | 1 |
| 1"1/2 | 3/4" | 1"1/4 | 13001746 | 13005746 | 1 |
| 1"1/2 | 3/4" | 1"1/2 | 13001747 | 13005747 | 1 |
| 1"1/2 | 1" | 1" | 13001755 | 13005755 | 1 |
| 1"1/2 | 1" | 1"1/4 | 13001756 | 13005756 | 1 |
| 1"1/2 | 1" | 1"1/2 | 13001757 | 13005757 | 1 |
| 1"1/2 | 1"1/4 | 1" | 13001765 | 13005765 | 1 |
| 1"1/2 | 1"1/4 | 1"1/4 | 13001766 | 13005766 | 1 |
| 1"1/2 | 1"1/4 | 1"1/2 | 13001767 | 13005767 | 1 |
| 1"1/2 | 1"1/2 | 1/2" | 13001773 | 13005773 | 1 |
| 1"1/2 | 1"1/2 | 3/4" | 13001774 | 13005774 | 1 |
| 1"1/2 | 1"1/2 | 1" | 13001775 | 13005775 | 1 |
| 1"1/2 | 1"1/2 | 1"1/4 | 13001776 | 13005776 | 1 |
| 1"1/2 | 2" | 1"1/4 | 13001786 | 13005786 | 1 |
| 1"1/2 | 2" | 1"1/2 | 13001787 | 13005787 | 1 |
| 2" | 1/2" | 1"1/2 | 13001837 | 13005837 | 1 |
| 2" | 1/2" | 2" | 13001838 | 13005838 | 1 |
| 2" | 3/4" | 1"1/2 | 13001847 | 13005847 | 1 |
| 2" | 3/4" | 2" | 13001848 | 13005848 | 1 |
| 2" | 1" | 1"1/2 | 13001857 | 13005857 | 1 |
| 2" | 1" | 2" | 13001858 | 13005858 | 1 |
| 2" | 1"1/4 | 1" | 13001865 | 13005865 | 1 |
| 2" | 1"1/4 | 1"1/4 | 13001866 | 13005866 | 1 |
| 2" | 1"1/4 | 1"1/2 | 13001867 | 13005867 | 1 |
| 2" | 1"1/4 | 2" | 13001868 | 13005868 | 1 |
| 2" | 1"1/2 | 1" | 13001875 | 13005875 | 1 |
| 2" | 1"1/2 | 1"1/2 | 13001877 | 13005877 | 1 |
| 2" | 1"1/2 | 2" | 13001878 | 13005878 | 1 |
| 2" | 2" | 1/2" | 13001883 | 13005883 | 1 |
| 2" | 2" | 3/4" | 13001884 | 13005884 | 1 |
| 2" | 2" | 1" | 13001885 | 13005885 | 1 |
| 2" | 2" | 1"1/4 | 13001886 | 13005886 | 1 |
| 2" | 2" | 1"1/2 | 13001887 | 13005887 | 1 |
| 2" | 2"1/2 | 2" | 13001898 | 13005898 | 1 |
| 2"1/2 | 1/2" | 2"1/2 | 13001939 | 13005939 | 1 |
| 2"1/2 | 3/4" | 2"1/2 | 13001949 | 13005949 | 1 |
| 2"1/2 | 1" | 2"1/2 | 13001959 | 13005959 | 1 |
| 2"1/2 | 1"1/4 | 2"1/2 | 13001669 | 13005969 | 1 |
| 2"1/2 | 1"1/2 | 2"1/2 | 13001979 | 13005979 | 1 |
| 2"1/2 | 2" | 2" | 13001988 | 13005988 | 1 |
| 2"1/2 | 2" | 2"1/2 | 13001989 | 13005989 | 1 |
| 2"1/2 | 2"1/2 | 1"1/2 | 13005997 | 1 | |
| 2"1/2 | 2"1/2 | 2" | 13005998 | 1 | |
| 3" | 1/2" | 3" | 13005A3A | 1 | |
| 3" | 3/4" | 3" | 13005A4A | 1 | |
| 3" | 1" | 3" | 13001A5A | 13005A5A | 1 |
| 3" | 1"1/4 | 3" | 13001A6A | 13005A6A | 1 |
| 3" | 1"1/2 | 3" | 13001A7A | 13005A7A | 1 |
| 3" | 2" | 2" | 13005A88 | 1 | |
| 3" | 2" | 3" | 13001A8A | 13005A8A | 1 |
| 3" | 2"1/2 | 3" | 13001A9A | 13005A9A | 1 |
| 3" | 3" | 2" | 13005AA8 | 1 | |
| 4" | 1/2" | 4" | 1 | ||
| 4" | 3/4" | 4" | 13001C4C | 13005C4C | 1 |
| 4" | 1" | 4" | 13001C5C | 13005C5C | 1 |
| 4" | 2"1/2 | 4" | 13001C7C | 13005C7C | 1 |
| 4" | 2" | 4" | 13001C8C | 13005C8C | 1 |
| 4" | 2"1/2 | 4" | 13001C9C | 13005C9C | 1 |
| 4" | 3" | 4" | 13001CAC | 13005CAC | 1 |
| 5" | 4" | 5" | 13005DCD | 1 |
TI REDUCED in malleable cast iron
