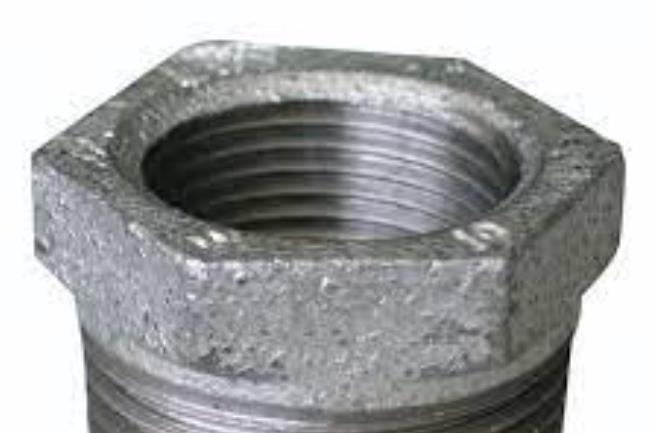

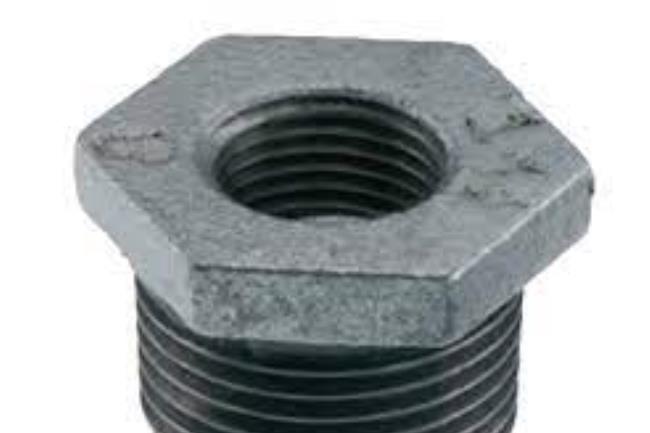

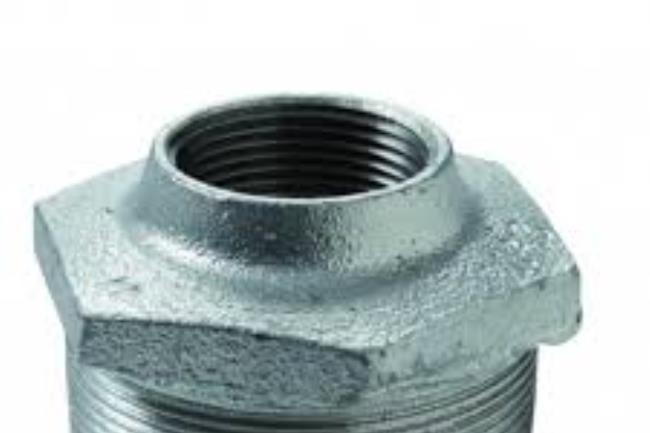

NIPPLO RIDOTTO MASCHIO-FEMMINA
CATALOGO ON-LINE › RACCORDI PER MANUTENZIONE AGRICOLO-INDUSTRIALE › RACCORDI FILETTATI IN GHISA MALLEABILE EN10242
Scarica scheda in formato pdf
Codice: GS241
| Misura | TIPO | Neri | Zincati | conf. |
| 1/4"-1/8" | I | 24111010 | 24115010 | 10 |
| 3/8"-1/8" | II | 24111020 | 24115020 | 10 |
| 3/8"-1/4" | I | 24111021 | 24115021 | 10 |
| 1/2"-1/8" | II | 24111030 | 24115030 | 10 |
| 1/2"-1/4" | II | 24101031 | 24105031 | 10 |
| 1/2"-3/8" | I | 24101032 | 24105032 | 10 |
| 3/4"-1/4" | II | 24101041 | 24105041 | 10 |
| 3/4"-3/8" | II | 24101042 | 24105042 | 10 |
| 3/4"-1/2″ | I | 24101043 | 24105043 | 10 |
| 1"-1/4" | II | 24101051 | 24105051 | 10 |
| 1"-3/8" | II | 24101052 | 24105052 | 10 |
| 1"-1/2″ | II | 24101053 | 24105053 | 10 |
| 1″-3/4" | I | 24101054 | 24105054 | 10 |
| 1"1/4-3/8" | II | 24101062 | 24105062 | 10 |
| 1″1/4-1/2" | II | 24101063 | 24105063 | 10 |
| 1″1/4-3/4" | II | 24101064 | 24105064 | 10 |
| 1"1/4-1″ | I | 24101065 | 24105065 | 10 |
| 1"1/2-3/8" | II | 24101072 | 24105072 | 10 |
| 1"1/2-1/2" | II | 24101073 | 24105073 | 10 |
| 1"1/2-3/4" | II | 24101074 | 24105074 | 10 |
| 1"1/2-1" | II | 24101075 | 24105075 | 10 |
| 1"1/2-1"1/4 | I | 24101076 | 24105076 | 10 |
| 2"-1/2" | III | 24101083 | 24105083 | 1 |
| 2"-3/4" | III | 24101084 | 24105084 | 1 |
| 2"-1" | II | 24101085 | 24105085 | 1 |
| 2"-1"1/4 | II | 24101086 | 24105086 | 1 |
| 2"-1"1/2 | II | 24101087 | 24105087 | 1 |
| 2"1/2-1" | III | 24101095 | 24105095 | 1 |
| 2"1/2-1"1/4 | III | 24101096 | 24105096 | 1 |
| 2"1/2-1"1/2 | II | 24101097 | 24105097 | 1 |
| 2"1/2-2" | II | 24101098 | 24105098 | 1 |
| 3"-1" | III | 241010A5 | 241050A5 | 1 |
| 3"-1"1/4 | III | 241010A6 | 241050A6 | 1 |
| 3"-1"1/2 | II | 241010A7 | 241050A7 | 1 |
| 3"-2" | II | 241010A8 | 241050A8 | 1 |
| 3"-2"1/2 | II | 241010A9 | 241050A9 | 1 |
| 4"-2" | III | 241010C8 | 241050C8 | 1 |
| 4"-2"1/2 | III | 241010C9 | 241050C9 | 1 |
| 4"-3" | II | 241010CA | 241050CA | 1 |
| 5"-4" | II | - | 241050DC | 1 |
| 6"-4" | III | - | 241050EC | 1 |
| 6"-5" | II | - | 241050ED | 1 |
REDUCED MALE-FEMALE NIPPLE
