SPIRAL_HDPE
ONLINE CATALOGUE › SPIRAL
Download sheet in pdf format

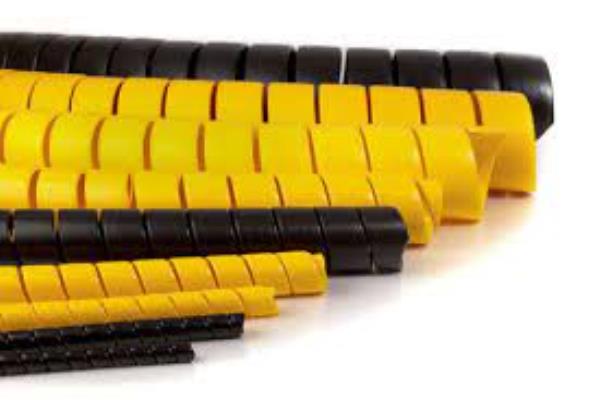

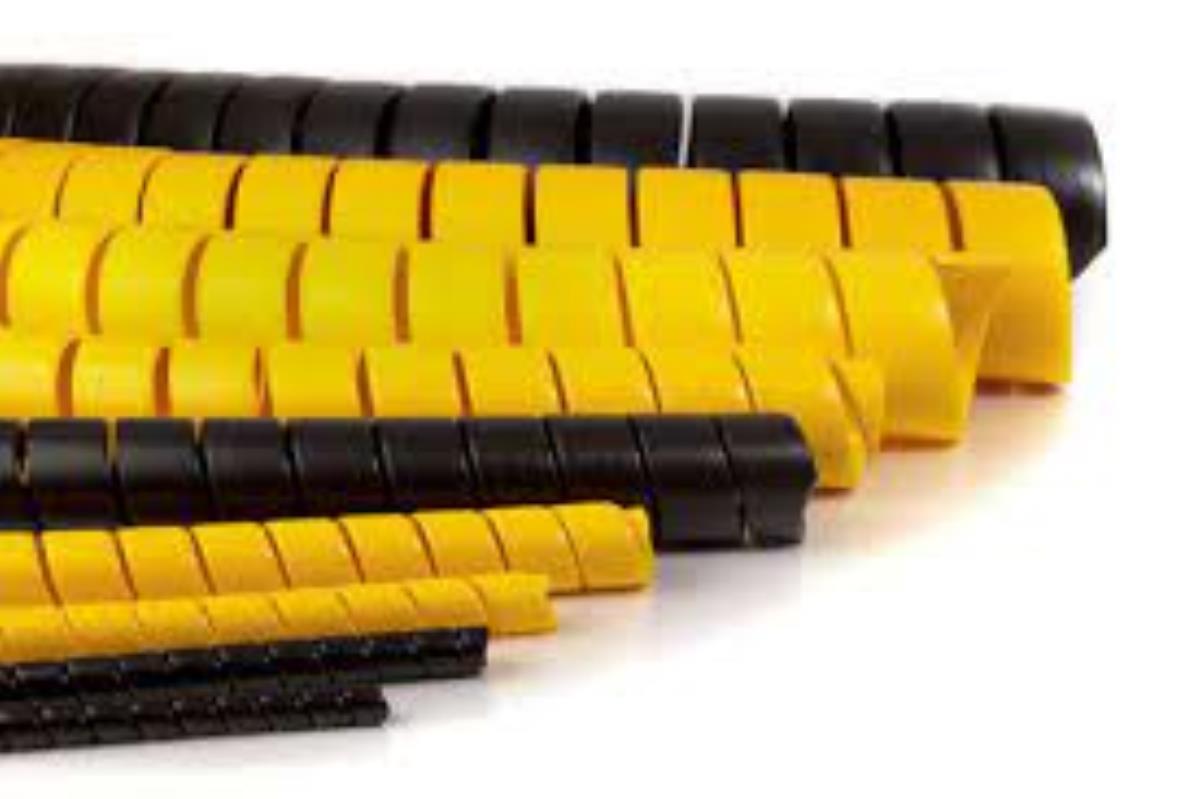

Spiral and curved shaped flat strip in rigid shock-proof HDPE (HIGH DENSITY POLYETHYLENE).
Ideal for wrapping and containing bundles of hydraulic and electrical wiring.
Excellent resistance to LOW TEMPERATURES, abrasion, crushing, ultraviolet rays and ozone.
Excellent chemical resistance properties of the material make it particularly useful in the presence of acids, oils and aromatic solvents. Available in perforated version.
Operating temperature: -60° +100°C
SHORE hardness 66 w5 (ISO 868)
Elongation at break: 30.00 mpa
Density: 0.96 gr/cc (ISO 1183)
COLORS AVAILABLE ON REQUEST: black, yellow, green, red, blue
Ideal for wrapping and containing bundles of hydraulic and electrical wiring.
Excellent resistance to LOW TEMPERATURES, abrasion, crushing, ultraviolet rays and ozone.
Excellent chemical resistance properties of the material make it particularly useful in the presence of acids, oils and aromatic solvents. Available in perforated version.
Operating temperature: -60° +100°C
SHORE hardness 66 w5 (ISO 868)
Elongation at break: 30.00 mpa
Density: 0.96 gr/cc (ISO 1183)
COLORS AVAILABLE ON REQUEST: black, yellow, green, red, blue
| diameter internal mm | diameter external mm | weight theoretical kg/m | length roll m | step of spiral m |
| 9 | 12 | 0.04 | 25 | 10-11 |
| 13 | 16 | 0.06 | 25 | 10-11 |
| 16 | 20 | 0.10 | 25 | 18-19 |
| 20 | 25 | 0.12 | 25 | 20-21 |
| 27 | 32 | 0.24 | 25 | 22-23 |
| 30 | 35 | 0.27 | 25 | 25-26 |
| 34 | 40 | 0.30 | 25 | 25-26 |
| 43 | 50 | 0.45 | 25 | 29-31 |
| 56 | 63 | 0.52 | 25 | 38-40 |
| 67 | 76 | 0.73 | 20 | 42-45 |
| 80 | 90 | 1.10 | 20 | 44-47 |
| 100 | 111 | 1.75 | 15 | 50-53 |
