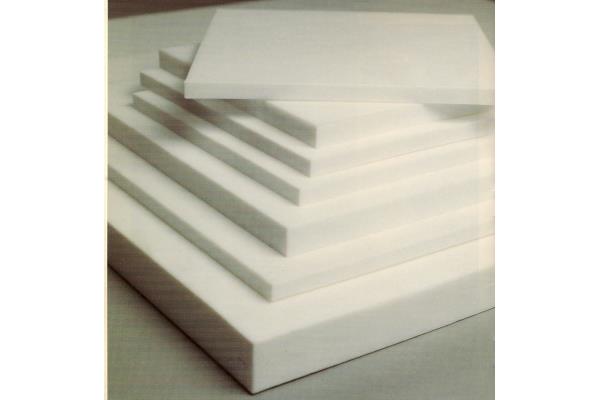

PTFE SHEET

ONLINE CATALOGUE › RUBBER SHEETS › TEFLON SHEET

PTFE SHEET

Download sheet in pdf format

The main characteristics that make PTFE a unique material:

low coefficient of friction
excellent resistance to external agents
high degree of anti-adhesiveness
high degree of resistance to low and high temperatures (from –200° C to +260° C) excellent dielectric properties.

MECHANICAL CHARACTERISTICS
Compressive resistance at a predetermined deformation is one of the best mechanical characteristics of PTFE, in a wide range of temperatures of use. Flexural strength, plastic memory and hardness are other characteristics that strongly distinguish PTFE.

ELECTRICAL CHARACTERISTICS
PTFE has excellent dielectric qualities over an extremely wide range of temperatures and frequencies. The dielectric strength varies as the thickness varies and decreases as the frequency increases, remaining unchanged in values up to operating temperatures close to 300° C.

RESISTANCE TO CHEMICAL AGENTS
PTFE is considered inert towards practically all known chemical reagents. It is attacked only by elemental alkali metals, chlorotrifluoride and elemental fluorine at high temperatures and pressures.

THERMAL CHARACTERISTICS
PTFE has always been considered one of the most thermally stable plastic materials. Up to a temperature of 260° C, no particular structural decompositions are detected.

Thickness mm	Format mm
4	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
5	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
6	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
8	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
10	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
12	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
15	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
20	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
25	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
30	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
40	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
50	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
60	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
70	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
80	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
90	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
100	600 x 600 / 1000 x 1000 / 1200 x 1200 / 1500 x 1500 / 1000 x 2000
