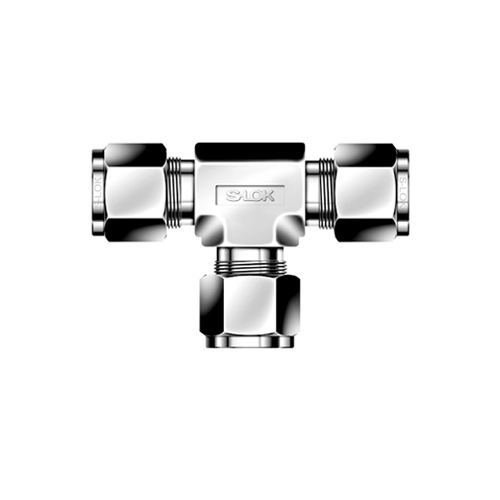

LOK STR - metric reduced three-way union
ONLINE CATALOGUE › PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS › STAINLESS STEEL SAFETY CONNECTIONS › LOK DOUBLE OGIVE FITTINGS
Download sheet in pdf format
Central or lateral reduced T-junction for pipes with metric external diameter pipes.
Pack of 10 fittings.
Pack of 10 fittings.
| CODE | side | central | side |
| STR-3M-6M | 3 | 3 | 6 |
| STR-8M-6M | 8 | 8 | 6 |
| STR-10M-6M | 10 | 10 | 6 |
| STR-10M-12M | 10 | 10 | 12 |
| STR-12M-6M-10M | 12 | 6 | 10 |
| STR-12M-6M-12M | 12 | 6 | 12 |
| STR-12M-10M-10M | 12 | 10 | 10 |
| STR-12M-10M | 12 | 12 | 10 |
| STR-12M-6M | 12 | 12 | 6 |
| STR-15M-12M | 15 | 15 | 12 |
| STR-16M-12M | 16 | 16 | 12 |
| STR-18M-12M | 18 | 18 | 12 |
| STR-20M-12M-20M | 20 | 12 | 20 |
| STR-20M-6M | 20 | 20 | 6 |
| STR-20M-10M | 20 | 20 | 10 |
| STR-20M-12M | 20 | 20 | 12 |
| STR-20M-25M | 20 | 20 | 25 |
| STR-20M-32M | 20 | 20 | 32 |
| STR-22M-12M | 22 | 22 | 12 |
| STR-25M-20M-20M | 25 | 20 | 20 |
| STR-25M-10M | 25 | 25 | 10 |
| STR-25M-12M | 25 | 25 | 12 |
| STR-25M-20M | 25 | 25 | 20 |
| STR-32M-20M | 32 | 32 | 20 |
| STR-38M-32M-32M | 38 | 32 | 32 |
| STR-38M-20M | 38 | 38 | 20 |
| STR-38M-25M | 38 | 38 | 25 |
