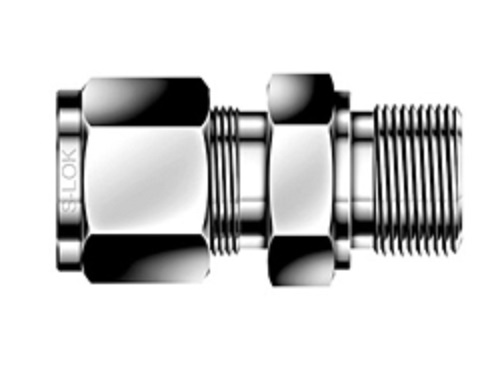

LOK SOM - For BSPP Male Inch Pipe for Metal Seal
ONLINE CATALOGUE › PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS › STAINLESS STEEL SAFETY CONNECTIONS › LOK DOUBLE OGIVE FITTINGS
Download sheet in pdf format
Straight end fitting in AISI 316 stainless steel with double nose for pipes with external diameter in inches and cylindrical male thread in inches to be used combined with the copper metal gasket (type LOK SGC). Mainly used in the presence of high temperatures where the metal/rubber gasket (BONDED) is not effective.
Minimum package 10 pieces.
Minimum package 10 pieces.
| CODE | Pipe SIDE | Thread SIDE |
| SOM-2-2G | 1/8 | 1/8 |
| SOM-2-4G | 1/8 | 1/4 |
| SOM-2-6G | 1/8 | 3/8 |
| SOM-4-2G | 1/4 | 1/8 |
| SOM-4-4G | 1/4 | 1/4 |
| SOM-4-6G | 1/4 | 3/8 |
| SOM-4-8G | 1/4 | 1/2 |
| SOM-6-4G | 3/8 | 1/4 |
| SOM-6-6G | 3/8 | 3/8 |
| SOM-6-8G | 3/8 | 1/2 |
| SOM-8-4G | 1/2 | 1/4 |
| SOM-8-6G | 1/2 | 3/8 |
| SOM-8-8G | 1/2 | 1/2 |
| SOM-12-8G | 3/4 | 1/2 |
| SOM-12-12G | 3/4 | 3/4 |
| SOM-16-8G | 1 | 1/2 |
| SOM-16-16G | 1 | 1 |
| SOM-20-20G | 1-1/4 | 1-1/4 |
| SOM-24-24G | 1-1/2 | 1-1/2 |
