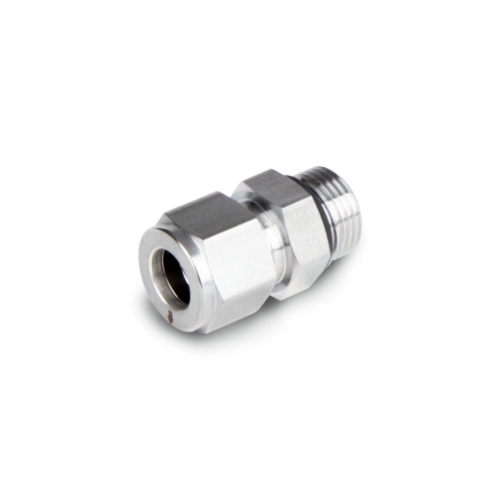

LOK SMCS - Male connector with SAE standard thread
ONLINE CATALOGUE › PIPES AND FITTINGS FOR HYDROGEN AND FUEL CELLS › STAINLESS STEEL SAFETY CONNECTIONS › LOK DOUBLE OGIVE FITTINGS
Download sheet in pdf format
Straight end fitting in AISI 316 stainless steel with double nose for pipes with external diameter in inches and SAE [American Standard ] male thread whose acronym stands for Society Automotive Engineers with triangular profile with chamfered crest and bottom, the internal walls are angled of 60°.
Minimum package 10 pieces.
Minimum package 10 pieces.
| Code | external diameter tube | fillet steak | internal hole fitting | ||
inches | mm | SAE | mm | ||
SMCS-2-2U | 1/8" | 3.17 | 5/16"-24 | 2.28 | |
SMCS-4-4U | 1/4" | 3.17 | 7/16"-20 | 4.82 | |
SMCS-4-6U | 1/4" | 3.17 | 9/16"-18 | 4.82 | |
SMCS-4-8U | 1/4" | 6.35 | 3/4"-16 | 4.82 | |
SMCS-4-10U | 1/4" | 6.35 | 7/8"-14 | 4.82 | |
SMCS-5-5U | 5/16" | 7.93 | 1/2"-20 | 5.84 | |
SMCS-6-4U | 3/8" | 9.52 | 7/16"-20 | 5.08 | |
SMCS-6-6U | 3/8" | 9.52 | 9/16"-18 | 7.11 | |
SMCS-6-8U | 3/8" | 9.52 | 3/4"-16 | 7.11 | |
SMCS-6-10U | 3/8" | 9.52 | 7/8"-14 | 7.11 | |
SMCS-8-6U | 1/2" | 12.70 | 9/16"-18 | 7.11 | |
SMCS-8-8U | 1/2" | 12.70 | 3/4"-16 | 10.41 | |
SMCS-8-10U | 1/2" | 12.70 | 7/8"-14 | 10.41 | |
SMCS-8-12U | 1/2" | 12.70 | 1"1/16-12 | 10.41 | |
SMCS-10-8U | 5/8" | 15.87 | 3/4"-16 | 10.66 | |
SMCS-10-10U | 5/8" | 15.87 | 7/8"-14 | 12.70 | |
SMCS-12-8U | 3/4" | 19.05 | 3/4"-16 | 10.66 | |
SMCS-12-12U | 3/4" | 19.05 | 1"1/16-12 | 15.74 | |
| SMCS-14-14U | 7/8" | 10.22pm | 1"3/16-12 | 18.28 | |
| SMCS-16-12U | 1" | 25.40 | 1"1/16-12 | 16.76 | |
| SMCS-16-16U | 1" | 25.40 | 1"5/16-12 | 10.35pm | |
| SMCS-20-20U | 1"1/4 | 31.75 | 1"5/8-12 | 27.68 | |
| SMCS-24-24U | 1"1/2 | 38.10 | 1"7/8-12 | 34.03 | |
| SMCS-32-32U | 2" | 50.80 | 2"1/2-12 | 45.97 | |
