THERMAL SLEEVES WITH VELCRO
ONLINE CATALOGUE › INSULATING SHEATH IN TECHNICAL FABRIC
Download sheet in pdf format

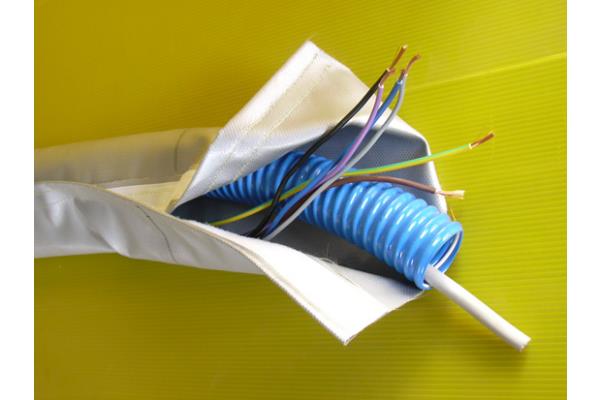

Sheaths made of highly technical fabrics sewn with aramid fiber thread and Velcro suitable for high temperatures.
Materials used:
fiberglass/neoprene
fiberglass/silicone
fibreglass/aluminium
fibreglass/ptfe
ceramic fibre
Color depending on the fabric used.
Internal diameters: all starting from 50 mm.
Lengths on request.
Materials used:
fiberglass/neoprene
fiberglass/silicone
fibreglass/aluminium
fibreglass/ptfe
ceramic fibre
Color depending on the fabric used.
Internal diameters: all starting from 50 mm.
Lengths on request.
| Dimension OR mm | Depression mBar | Pressure of work mBar |
|---|---|---|
| 102 | 500 | 3000 |
| 127 | 500 | 3000 |
| 152 | 500 | 3000 |
| 160 | 500 | 3000 |
| 178 | 500 | 2750 |
| 203 | 500 | 2750 |
| 220 | 300 | 2750 |
| 229 | 300 | 2750 |
| 254 | 300 | 2250 |
| 305 | 300 | 1750 |
| 356 | 300 | 1500 |
| 380 | 300 | 1300 |
| 407 | 300 | 1250 |
| 425 | 300 | 1200 |
| 457 | 300 | 1100 |
| 508 | 250 | 1000 |
| 525 | 250 | 1000 |
| 600 | 200 | 850 |
| 760 | 150 | 750 |
Related products

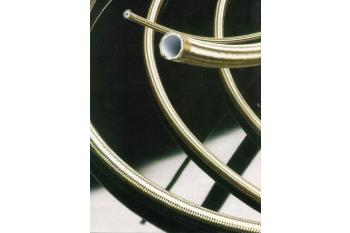

STAINLESS STEEL BRAIDED SMOOTH TEFLON-PTFE ...
Injection extruded sintered ptfe tube resistant to all chemical agents and non-toxic, food grade mix. excellent resistan...

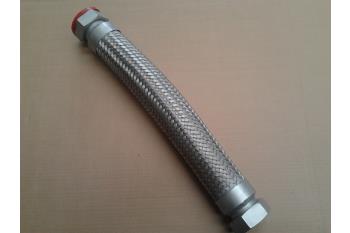

INOXFLEX/TR CONNECTED HOSE
