mini hose reel 8 - 15 metres
ONLINE CATALOGUE › HOSE REEL › Mini hose reel
Download sheet in pdf format

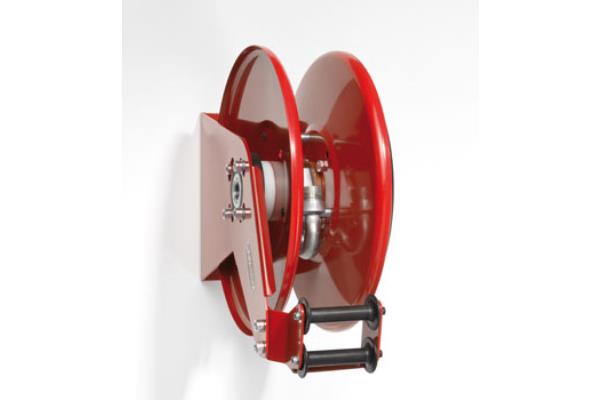

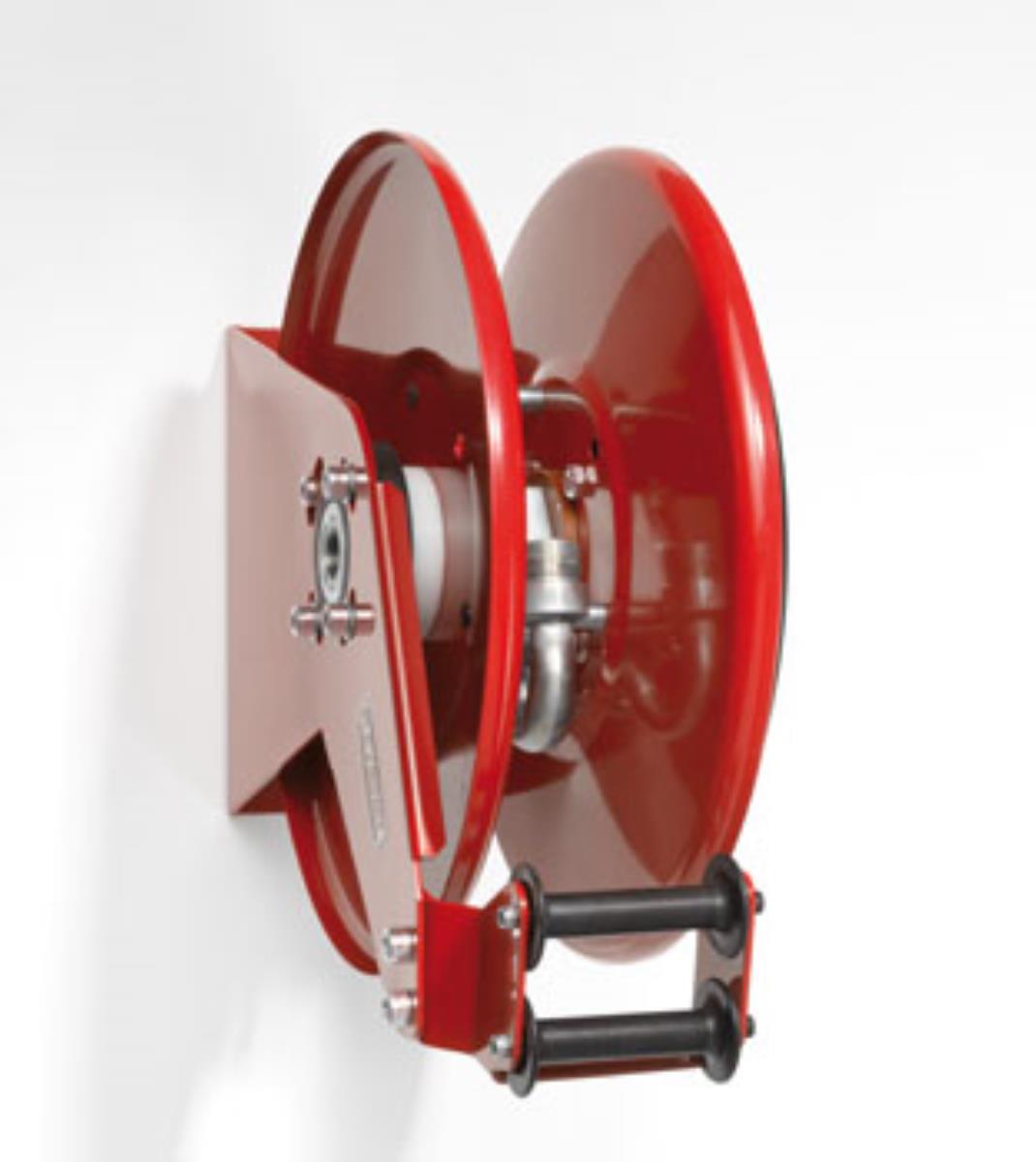

The single-sided “mini” series painted steel spring hose reel is suitable for use at distances of maximum 8m and for DN 1/2” pipes or maximum 15m for DN 1/4” pipes.
The hose reel is supplied without hose as standard and can be used for rewinding hoses for oil, grease, grease, compressed air and water.
For the choice of pipes please consult us.
The innovative construction design makes the reel particularly suitable for applications in environments with limited availability of space in width thanks to a maximum size of 150 mm, for example inside compact boxes.
The presence of a swivel bracket (optional) allows rotation beyond 90° for frontal use and rapid repositioning after use, without creating obstacles for the operator or other equipment.
On request version with brake-spring kit.
On request hose reel with stainless steel pin for AdBlue® and water-based fluids.
The hose reel is supplied without hose as standard and can be used for rewinding hoses for oil, grease, grease, compressed air and water.
For the choice of pipes please consult us.
The innovative construction design makes the reel particularly suitable for applications in environments with limited availability of space in width thanks to a maximum size of 150 mm, for example inside compact boxes.
The presence of a swivel bracket (optional) allows rotation beyond 90° for frontal use and rapid repositioning after use, without creating obstacles for the operator or other equipment.
On request version with brake-spring kit.
On request hose reel with stainless steel pin for AdBlue® and water-based fluids.
Pressure Maximum Cafe | Attacks IN-OUT | Maximum tube length 1/2" - 1/4" m | Weight Kg | Pin | Dimensions (LPH) mm |
100 | F1/2" - F1/2" | 8am - 3pm | 9 | Brass | 394-146-332 |
15 | AISI304 steel |
