AUTOMATIC STAINLESS STEEL HOSE REEL
ONLINE CATALOGUE › HOSE REEL › Hose reel for atex stainless steel chemicals
Download sheet in pdf format

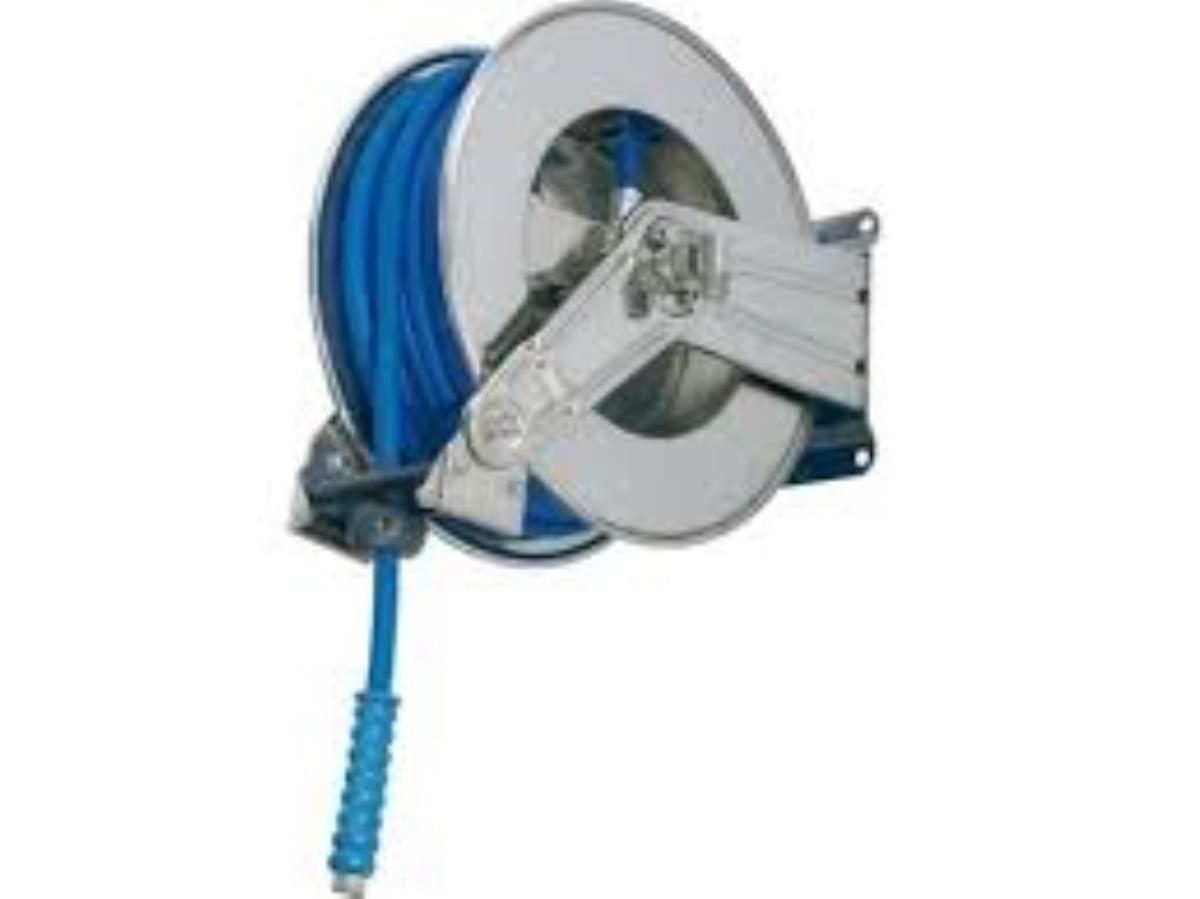

Standard series AISI 304 stainless steel spring hose reel, suitable for use at distances of maximum 20m (hose diameter 1/2"-12.7mm) and maximum 25m (for hose diameter 3/8"-9.52mm).
The hose reel is supplied as standard without hose and can be used for rewinding hoses for oil, antifreeze, grease, air and water at low and high pressure.
On request version with hydraulic brake-spring kit. Safety device for the controlled rewinding of the hose applicable on all spring hose reels, avoids the dangers deriving from an uncontrolled release of the hose during use.
Adjustable wall bracket upon request.
The hose reel is supplied as standard without hose and can be used for rewinding hoses for oil, antifreeze, grease, air and water at low and high pressure.
On request version with hydraulic brake-spring kit. Safety device for the controlled rewinding of the hose applicable on all spring hose reels, avoids the dangers deriving from an uncontrolled release of the hose during use.
Adjustable wall bracket upon request.
Max pressure Cafe | Attacks IN-OUT | Useful joint hole mm | pipe diameter OR | tube length m | Weight Kg | Width band mm | Dimensions (LPH) mm |
200 | M1/2" F1/2" | 10 | 1/2" | 15 | 13 | 120 | 250x570x450 |
| 200 | M1/2" F1/2" | 10 | 3/8" | 25 | 19 | 150 | 260x570x450 |
| 200 | M1/2" F1/2" | 10 | 1/2" | 20 | 18 | 150 | 260x570x450 |
